Drive Pinion Seal: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

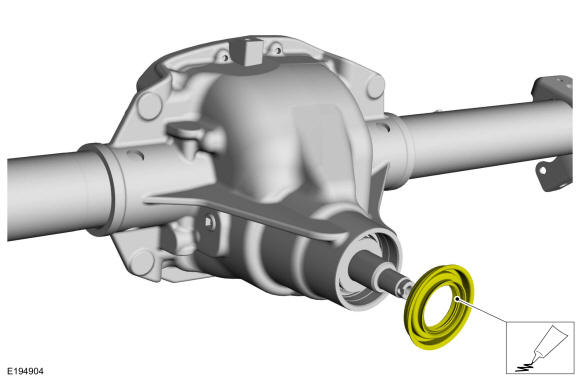

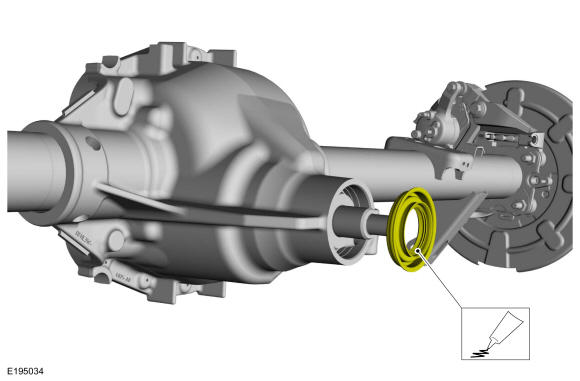

Lubricate the new drive pinion seal lip with grease.Material
: Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)
- 2.

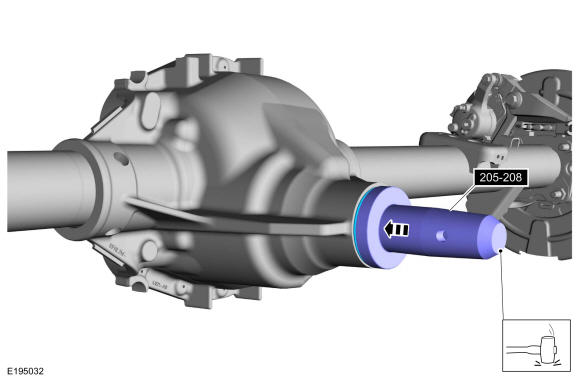

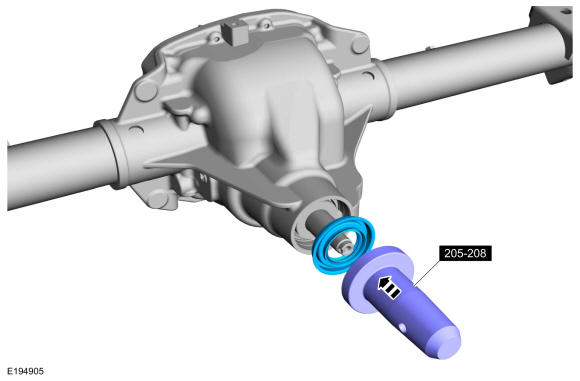

Using the special tool, install the drive pinion seal. Use Special Service Tool: 205-208 (T83T-4676-A) Installer, Drive Pinion Oil Seal.
- 3.
Install the drive pinion flange. Refer to: Drive Pinion Flange .
