Differential Housing Cover: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 2.

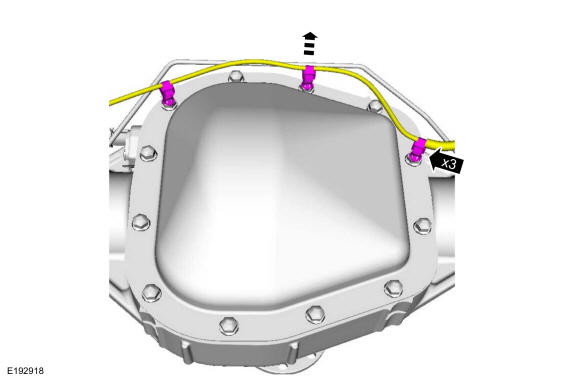

    Separate the ABS harness fasteners from the differential housing cover stud bolts.
GFD38587Courtesy of FORD MOTOR COMPANY

  1. 3.

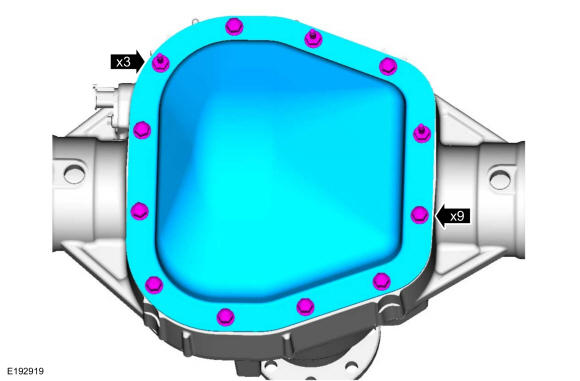

    Remove the differential housing cover stud bolts, differential housing cover bolts and the differential housing cover.
GFD38588Courtesy of FORD MOTOR COMPANY

  1. 4.

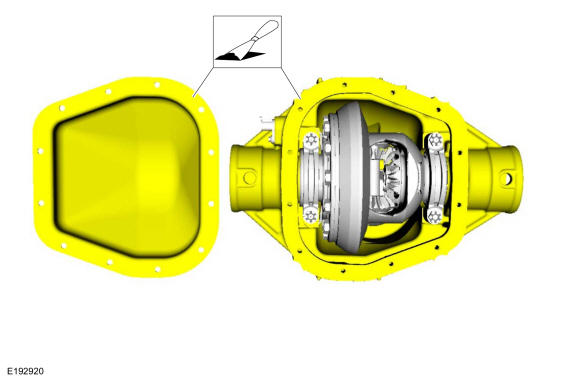

    NOTE: Remove all of the silicone gasket and make sure the surfaces are free of oil before applying the new silicone gasket.

    Clean the gasket mating surface of the axle and the differential housing cover.

GFD38589Courtesy of FORD MOTOR COMPANY
