Differential Housing Cover: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

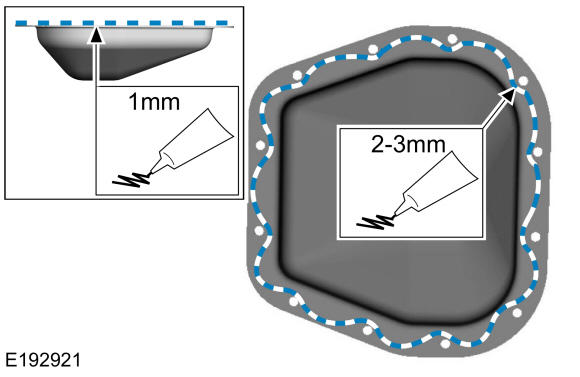

Apply a new, continuous bead of sealant to the differential housing cover as shown below.Material
: Silicone Sealant (WSS-M4G323-A8)
- 2.NOTE: The differential housing cover must be installed within 15 minutes of application of the silicone, or new sealant must be applied. Allow one hour before filling with lubricant to make sure the silicone sealant has correctly cured.

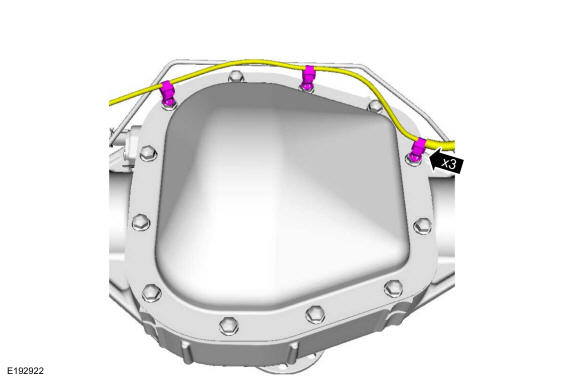

Install the differential housing cover and the differential housing cover bolts and the differential housing cover stud bolts.
Torque
: 33 lb.ft (45 Nm)
- 4.
Fill the differential with fluid. Refer to: Differential Fluid Level Check .
