Differential Carrier: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles

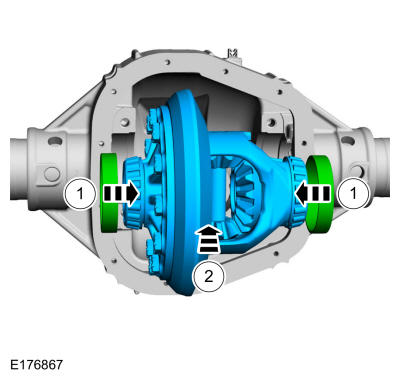

- 1.NOTE: Have the selected shims available at this time. It will be required to hold the differential carrier and the differential carrier bearing cups in until shims are installed.
Install the differential carrier and the differential carrier bearing cups.
Vehicle equipped with ELD (Electronic Locking Differential)
- 2.

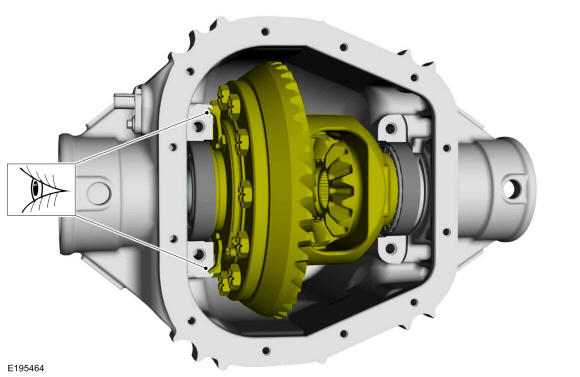

Install the differential carrier with the tabs on the ELD coil up against the differential bearing cap mounting surface.
All vehicles

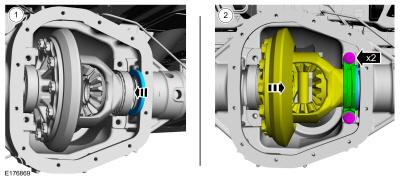

- 3.NOTE: Differential bearing shims are to be installed with the chamfer facing outboard.
- Install the RH selected ring gear back lash shim.
- Position the differential to the RH side of the differential housing.

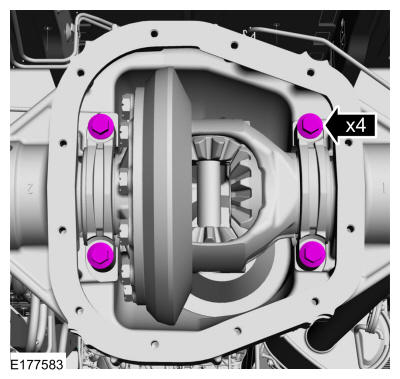

- Install the RH differential bearing cap and the differential bearing cap bolts.
NOTE: The differential bearing cap bolts should only be finger tight at this time.
- 4.

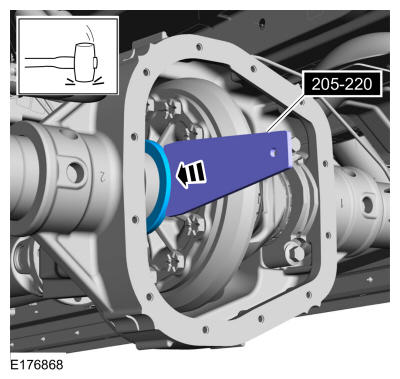

Using the special tool and a soft face brass mallet, install the LH selected ring gear back lash shim. Use Special Service Tool: 205-220 Installer, Differential Shim.
- 5.NOTE: The differential bearing cap bolts should only be finger tight at this time.

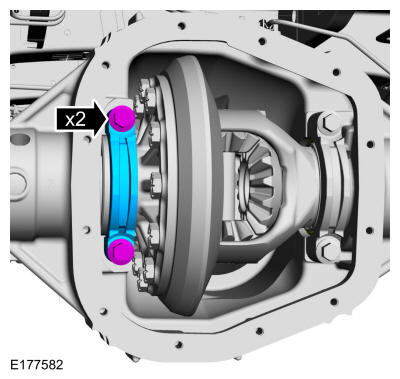

Install the LH differential bearing cap and the differential bearing cap bolts.
Vehicle equipped with ELD (Electronic Locking Differential)
- 8.

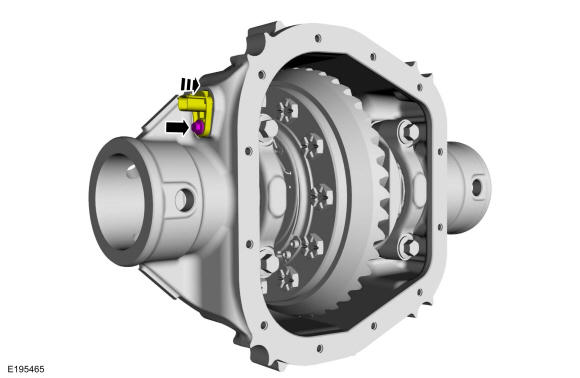

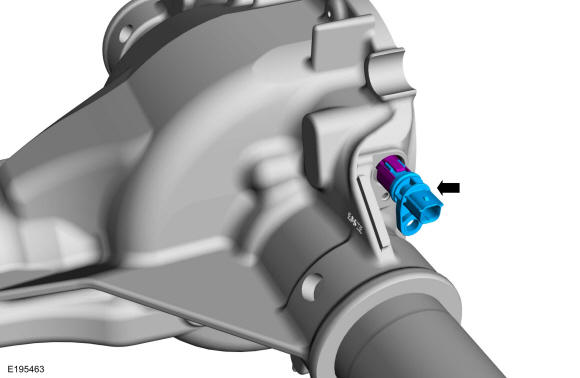

Install the ELD connector adaptor into the axle assembly housing, install the ELD connector adaptor bolt.Torque
: 62 lb.in (7 Nm)
All vehicles
- 9.
Check the ring gear backlash. Refer to: Ring Gear Backlash Adjustment .
- 10.
Install the axle shafts. Refer to: Axle Shaft .
- 11.
Install the differential housing cover. Refer to: Differential Housing Cover .
