Differential Carrier - Vehicles With: Electronic Locking Differential (ELD): Assembly

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Using the general equipment, install the new differential bearings. Use Special Service Tool: 205-D044 (D81T-4221-A) Installer, Differential Carrier Bearing.
GFD38651Courtesy of FORD MOTOR COMPANY

  1. 2.

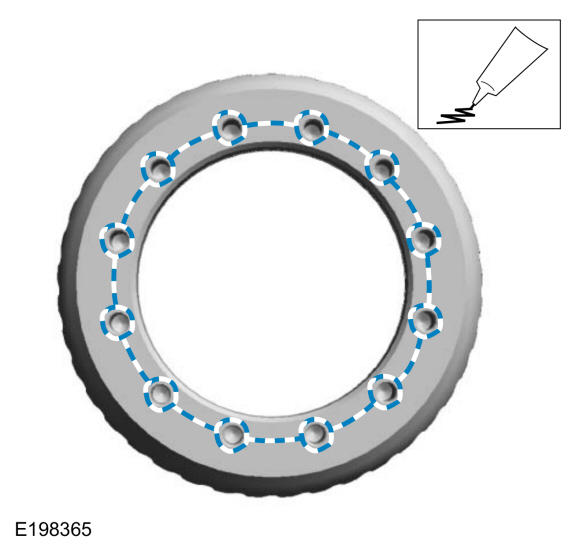

    Apply a one-eighth inch bead of maximum strength retaining compound on the rear face of the ring gear in the pattern shown below.

    Material

    : Maximum Strength Retaining Compound / Loctite ® 638™ (WSK-M2G349-A8)

GFD38652Courtesy of FORD MOTOR COMPANY

  1. 3.

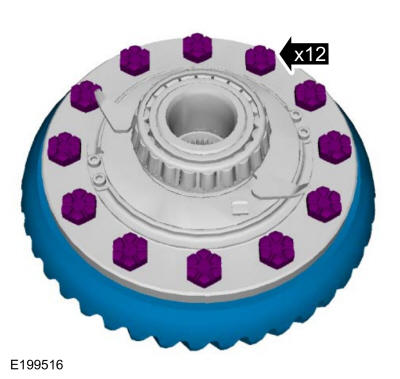

    NOTE: Tighten the ring gear bolts in a cross pattern.

    Install the ring gear and the new differential ring gear bolts. Tighten in 2 stages.

    Torque

    : Stage 1: 44 lb.ft (60 Nm) Stage 2: 90 °

GFD38653Courtesy of FORD MOTOR COMPANY

  1. 4.

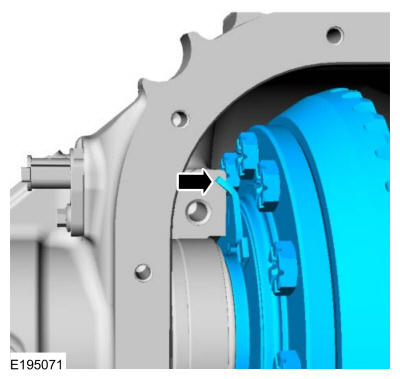

    NOTE: Install the differential with the tabs on the ELD coil up against the differential bearing cap mounting surface.

    Install the differential carrier. Refer to: Differential Carrier .

GFD38563Courtesy of FORD MOTOR COMPANY
