Rear Wheel Bearing: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

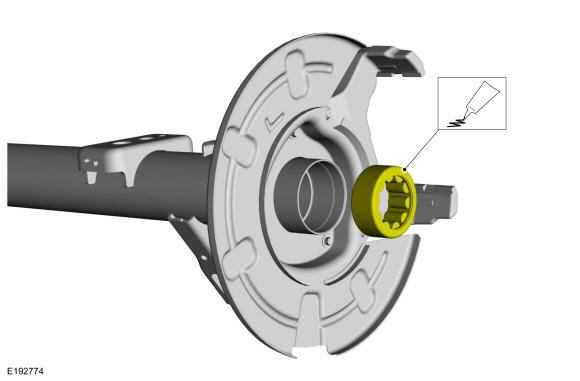

Lubricate the new rear wheel bearing.
Material

: Motorcraft ® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY

2.

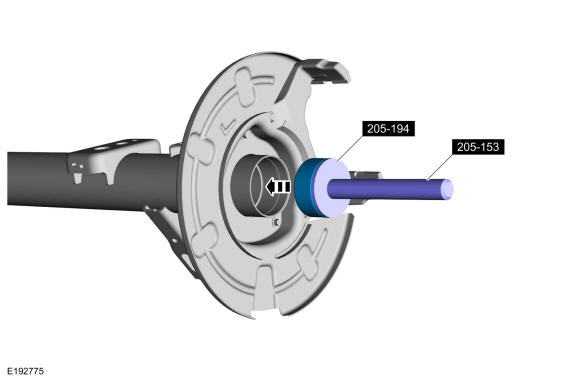

Using the special tools, install the new rear wheel bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-194 (T83T-1225-B) Installer, Axle Bearing.

Courtesy of FORD MOTOR COMPANY

3.

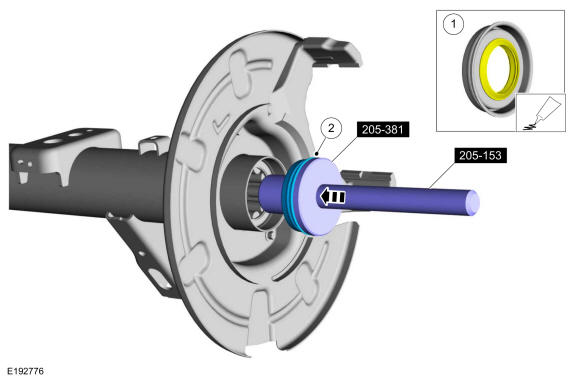

1. 1.

  Lubricate the axle shaft seal lip.
  Material

  : Motorcraft ® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)
1. 2.

  Using the special tools install the new axle shaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-381 (T97T-1177-A) Installer, Rear Axle Oil Seal.

Courtesy of FORD MOTOR COMPANY

4.

Install the axle shaft. Refer to: Axle Shaft .
