Drive Pinion: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Remove the differential carrier. Refer to: Differential Carrier .

  1. 2.

    Remove the drive pinion seal. Refer to: Drive Pinion Seal .

  1. 3.

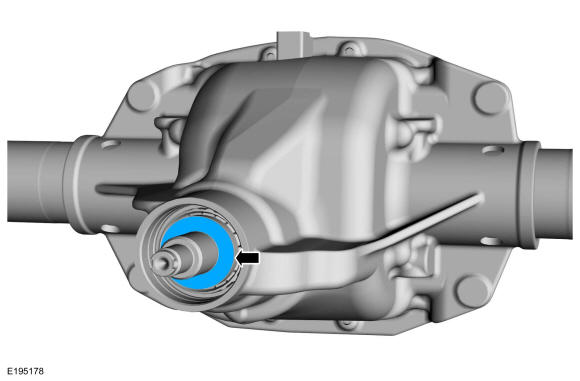

    Remove the drive pinion outer shim.
GFD38491Courtesy of FORD MOTOR COMPANY

  1. 4.

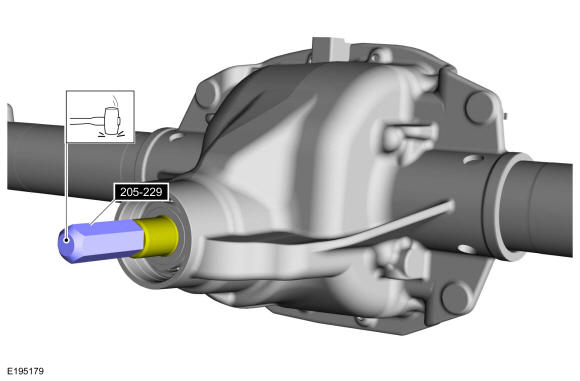

    Using the special tool and a soft face mallet, tap drive pinion free of the of the drive pinion outer bearing. Use Special Service Tool: 205-229 (T85T-4209-AH) Protector, Drive Pinion Thread. Use the General Equipment: Rubber Mallet
GFD38492Courtesy of FORD MOTOR COMPANY

  1. 5.

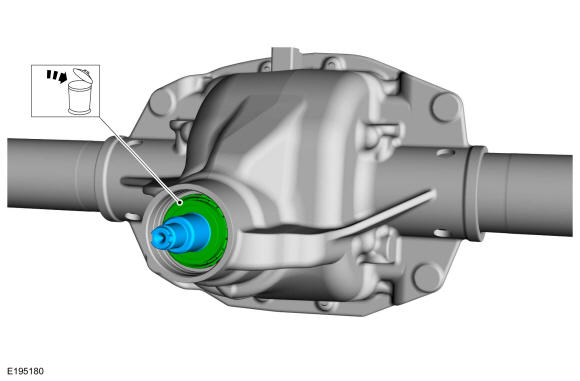

    Remove the drive pinion and remove and discard the drive pinion outer bearing.
GFD38493Courtesy of FORD MOTOR COMPANY

  1. 6.

    Remove and discard the drive pinion collapsible spacer.
GFD38494Courtesy of FORD MOTOR COMPANY

  1. 7.

    Using the bearing puller and a hydraulic press, remove and discard the inner drive pinion bearing. Use Special Service Tool: 205-D064 (D84L-1123-A) Puller, Bearing. Use the General Equipment: Hydraulic Press
GFD38495Courtesy of FORD MOTOR COMPANY

  1. 8.

    Remove the inner drive pinion bearing shim.
GFD38496Courtesy of FORD MOTOR COMPANY

  1. 9.

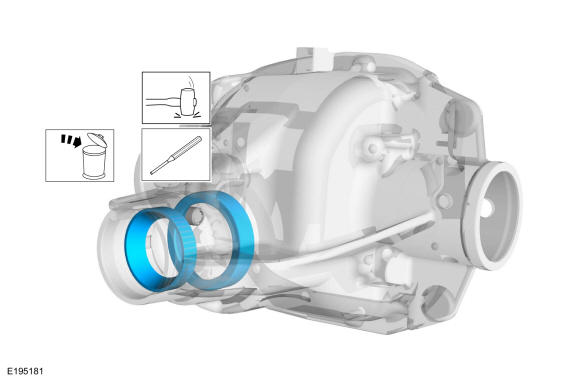

    Using the general equipment, remove and discard the drive pinion bearing cups. Use the General Equipment: Punch Use the General Equipment: Copper Hammer
GFD38497Courtesy of FORD MOTOR COMPANY
