Drive Pinion: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    NOTE: Make sure the drive pinion bearing cups are seated correctly or damage to the components may occur.

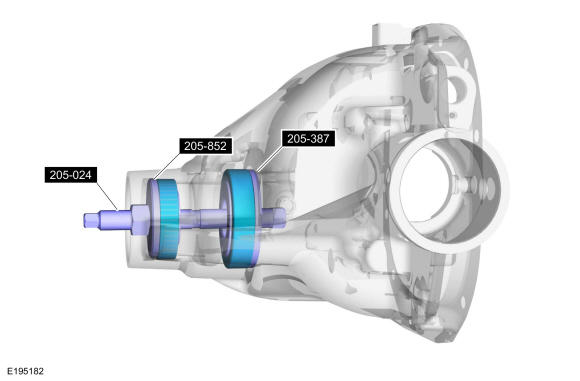

    Using the special tools, install the new inner and new outer drive pinion bearing cups. Use Special Service Tool: 205-024 (T67P-4616-A) Installer, Drive Pinion Bearing Cup., 205-852 Inner Pinion Bearing Cup Installer., 205-387 (T97T-4628-A) Installer, Rear Axle Bearing Cup.

GFD38498Courtesy of FORD MOTOR COMPANY

  1. 2.

    NOTE: Only tighten finger tight at this stage.

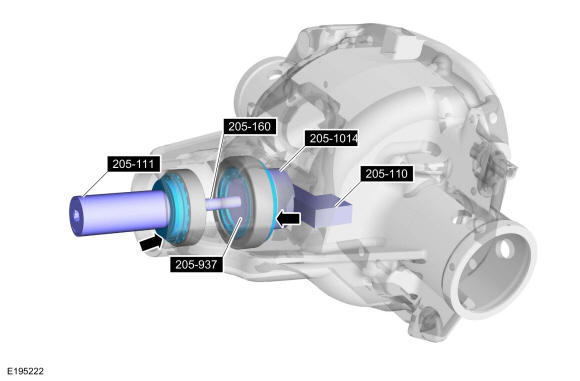

    Assemble the special tools in the differential housing. Use Special Service Tool: 205-110 (T76P-4020-A10) Gauge Block., 205-111 (T76P-4020-A11) Adapter for 205-S127 Pinion Depth Gauge., 205-160 (T80T-4020-F43) Adapter for 205-S156 Pinion Depth Gauge., 205-937 Adapter, Pinion Aligning., 205-1014 Gauge Disc.

GFD38499Courtesy of FORD MOTOR COMPANY

  1. 3.

      NOTE: This step duplicates final drive pinion bearing preload

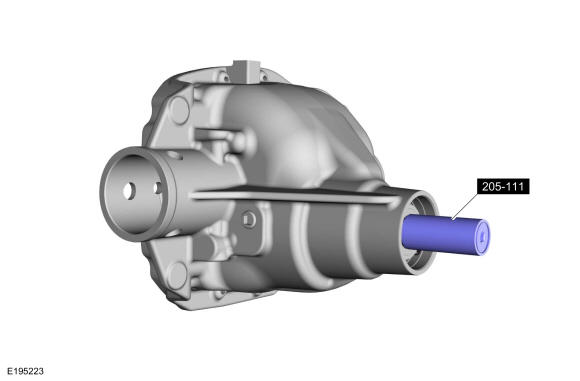

    • Tighten the special tool to the specified torque.

      Torque

      : 18 lb.in (2 Nm)

    • Slowly rotate and record the rotational torque readings.
GFD38500Courtesy of FORD MOTOR COMPANY

  1. 4.

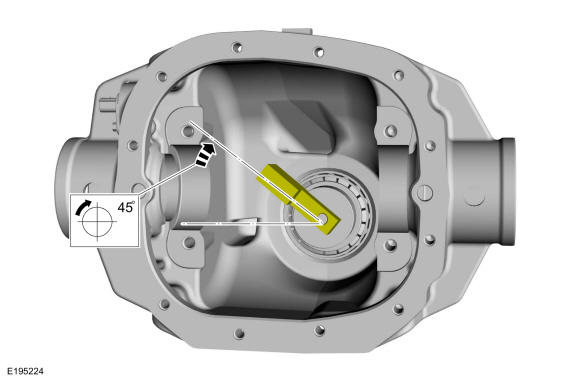

    Check for proper location of special tools.
GFD38501Courtesy of FORD MOTOR COMPANY

  1. 5.

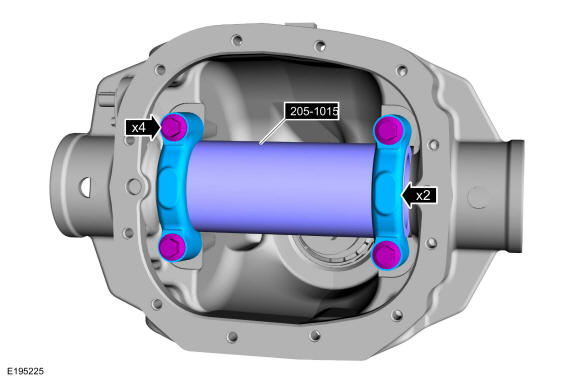

    Position the special tool. Install the differential bearing caps and differential bearing cap bolts.

    Torque

    : 83 lb.ft (112 Nm)

GFD38502Courtesy of FORD MOTOR COMPANY

  1. 6.

    NOTE: Drive pinion bearing adjustment shims must be flat and clean.
    NOTE: A slight drag should be felt for correct drive pinion bearing adjustment shim selection. Do not attempt to force the drive pinion bearing adjustment shim between the gauge block and the gauge tube. This will minimize selection of a drive pinion bearing adjustment shim thicker than required, which results in a deep tooth contact in the final assembly of integral axle assemblies.

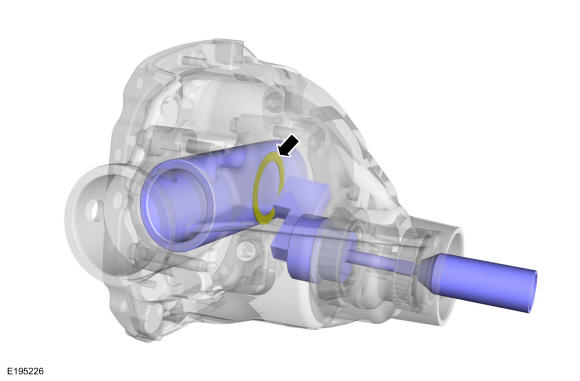

    Use a drive pinion bearing adjustment shim as a gauge for drive pinion bearing adjustment shim selection.

GFD38503Courtesy of FORD MOTOR COMPANY

  1. 7.

    NOTE: The differential bearing caps need to stay in the correct orientation for installation.

    Remove the differential bearing cap bolts and differential bearing caps, remove the special tools.

GFD38502Courtesy of FORD MOTOR COMPANY

  1. 8.

    Remove the special tools. Use Special Service Tool: 205-110 (T76P-4020-A10) Gauge Block., 205-111 (T76P-4020-A11) Adapter for 205-S127 Pinion Depth Gauge., 205-160 (T80T-4020-F43) Adapter for 205-S156 Pinion Depth Gauge., 205-937 Adapter, Pinion Aligning., 205-1014 Gauge Disc.
GFD38499Courtesy of FORD MOTOR COMPANY

  1. 9.

    Install the drive pinion inner bearing and selected drive pinion bearing adjustment shim until they are firmly seated on the drive pinion. Use Special Service Tool: 205-488 Installer, Drive Pinion Bearing. Use the General Equipment: Hydraulic Press
GFD38504Courtesy of FORD MOTOR COMPANY

  1. 10.

    Install the new drive pinion collapsible spacer.
GFD38505Courtesy of FORD MOTOR COMPANY

  1. 11.

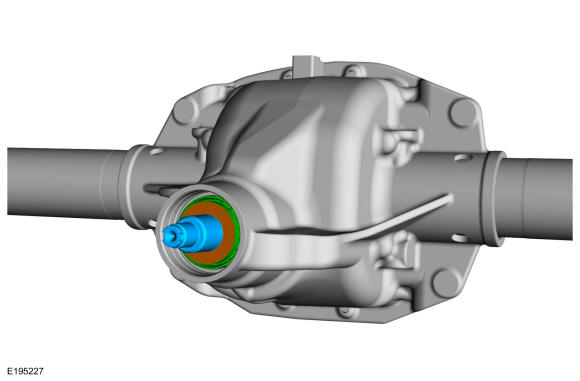

    Install the new outer differential pinion bearing, outer differential pinion shim and the differential pinion.
GFD38506Courtesy of FORD MOTOR COMPANY

  1. 12.

    NOTE: When installing the drive pinion flange and pinion nut with no differential carrier installed, the drag torque (torque to turn) should be 2 to 3 Nm (16-29 in-lbs).

    Install the drive pinion seal. Refer to: Drive Pinion Seal .

  1. 13.

    Install the differential carrier. Refer to: Differential Carrier .
