Drive Pinion Seal: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the drive pinion flange. Refer to: Drive Pinion Flange .
- 2.

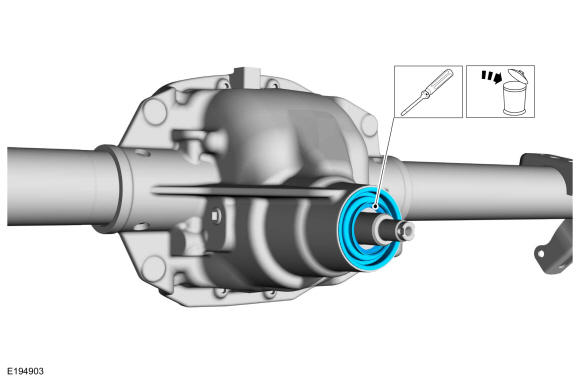

Using a flat blade screwdriver, remove and discard the drive pinion seal. Use the General Equipment: Flat Headed Screw Driver
