Differential Housing Cover: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

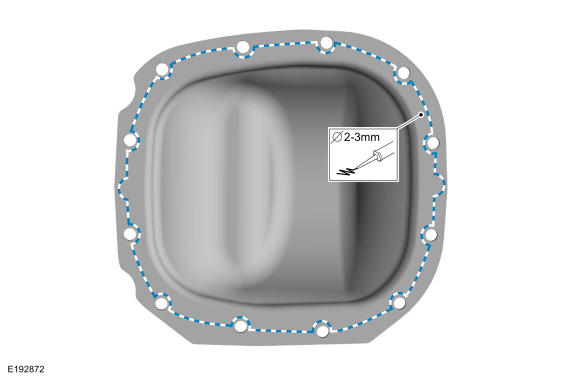

    Apply a new, continuous 2-3mm bead of sealant to the differential housing cover as shown below.

    Material

    : Silicone Sealant (WSS-M4G323-A8)

GFD38477Courtesy of FORD MOTOR COMPANY

  1. 2.

    NOTE: The differential housing cover must be installed within 15 minutes of application of the silicone, or new sealant must be applied. If possible, allow one hour before filling with lubricant to make sure the silicone sealant has correctly cured.

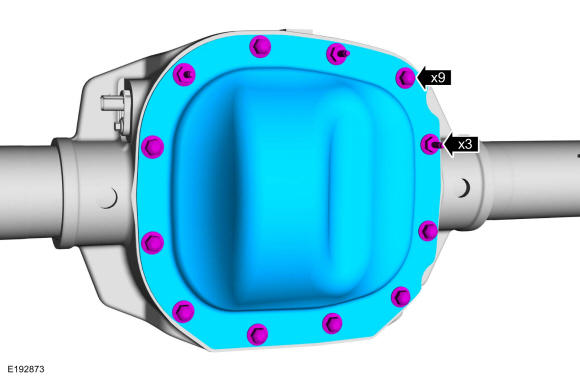

    Install the differential housing cover and the differential housing cover bolts and the differential housing cover stud bolts.

    Torque

    : 33 lb.ft (45 Nm)

GFD38478Courtesy of FORD MOTOR COMPANY

  1. 3.

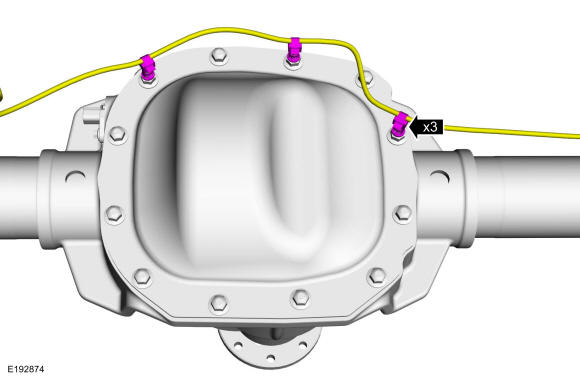

    Attach the ABS harness fasteners to the differential housing cover stud bolts.
GFD38479Courtesy of FORD MOTOR COMPANY

  1. 4.

    Fill the differential with fluid. Refer to: Differential Fluid Level Check .
