Differential Carrier - Vehicles With: Electronic Locking Differential (ELD): Disassembly

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Remove the differential carrier. Refer to: Differential Carrier .

  1. 2.

    Using the general equipment, remove and discard the differential bearings. Use Special Service Tool: 205-D072 (D97L-4221-A) 2 Jaw Puller., 205-D061 (D83T-4205-C2) Step Plate.
GFD38535Courtesy of FORD MOTOR COMPANY

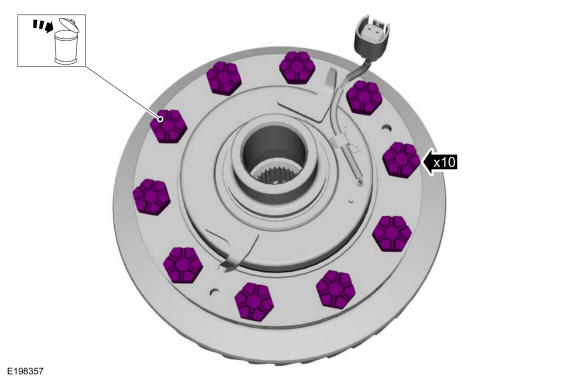

  1. 3.

    Remove and discard the ring gear bolts.
GFD38551Courtesy of FORD MOTOR COMPANY

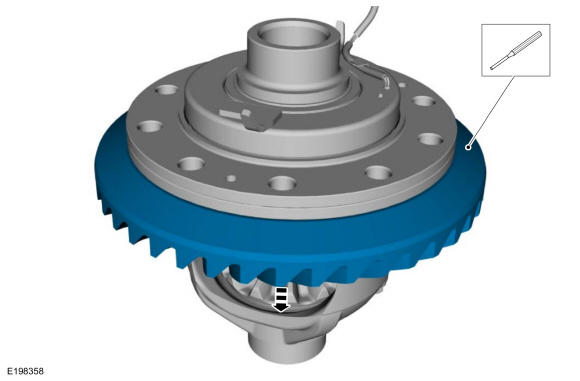

  1. 4.

    Using the brass punch and a soft face hammer, remove the ring gear. Use the General Equipment: Punch Use the General Equipment: Copper Hammer
GFD38552Courtesy of FORD MOTOR COMPANY

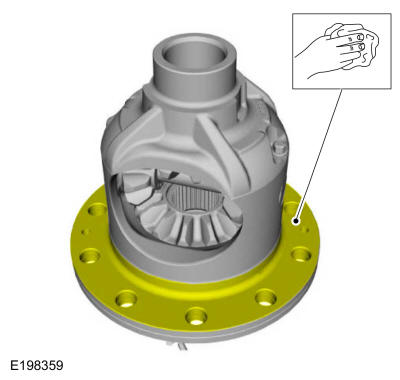

  1. 5.

    Clean the differential case flange of foreign material.
GFD38553Courtesy of FORD MOTOR COMPANY

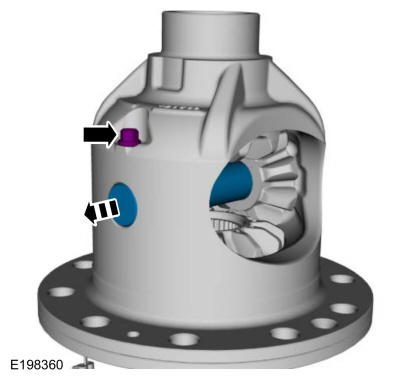

  1. 6.

    Remove the differential pinion shaft lock bolt and the differential pinion shaft.
GFD38554Courtesy of FORD MOTOR COMPANY

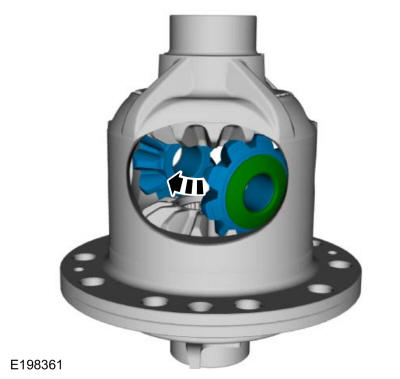

  1. 7.

    Rotate and remove the differential pinion gears and differential pinion gear thrust washers.
GFD38555Courtesy of FORD MOTOR COMPANY

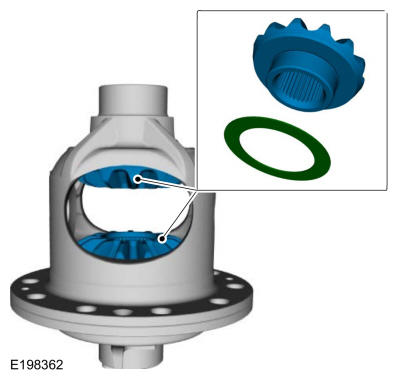

  1. 8.

    Remove the differential side gears and the differential side gear thrust washers.
GFD38556Courtesy of FORD MOTOR COMPANY
