Front Driveshaft: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps may contain installation instructions.

1.

With the vehicle in NEUTRAL, position the vehicle on a hoist. REFER to: Jacking and Lifting - Overview .

2.

If equipped. Remove the bolts and the transmission shield.
Torque

: 71 lb.in (8 Nm)

GFD38415

Courtesy of FORD MOTOR COMPANY

3.

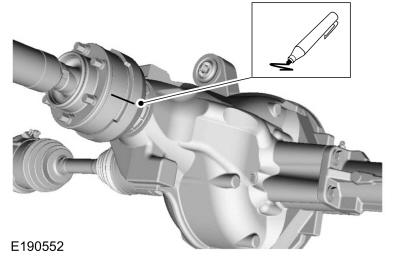

Index-mark the front driveshaft flange CV joint to the pinion flange cup.

GFD38416

Courtesy of FORD MOTOR COMPANY

4.

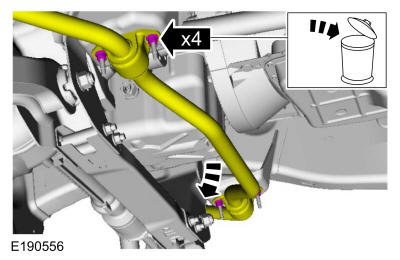

Remove and discard the stabilizer bar bracket nuts and allow the stabilizer bar to swing downward.
Torque

: 41 lb.ft (55 Nm)

GFD38417

Courtesy of FORD MOTOR COMPANY

5.

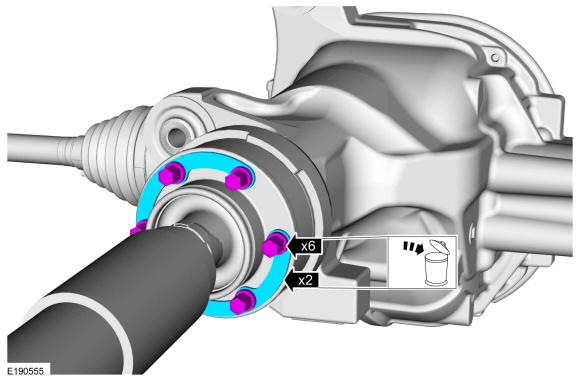

Remove and discard the front driveshaft CV joint-to-pinion flange cup bolts and retaining straps.
Torque

: 41 lb.ft (55 Nm)

GFD38418

Courtesy of FORD MOTOR COMPANY

6.

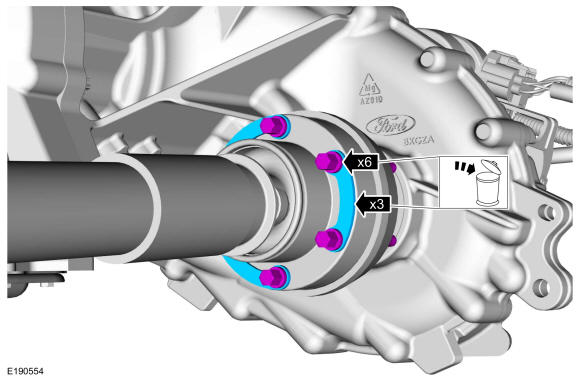

Remove and discard the rear driveshaft CV joint-to-transfer case flange cup bolts and retaining straps.
Torque

: 41 lb.ft (55 Nm)

GFD38419

Courtesy of FORD MOTOR COMPANY

7.

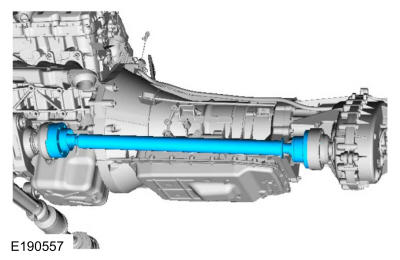

Remove the front driveshaft.

GFD38420

Courtesy of FORD MOTOR COMPANY
