Driveshaft Angle Adjustment

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s) / General Equipment

Transmission Jack

Adjustment

NOTE: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may result in major service expense. New parts must be installed with the same part numbers or equivalent part, if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

NOTE: Some vehicles may exhibit a drive-away shudder or vibration under moderate to heavy acceleration from a stop, especially when heavily loaded or when towing a trailer. It is important to confirm how the vehicle is driven the majority of the time (loaded or unloaded), as adjusting the driveline angle in one condition (loaded or unloaded) may result in a shudder or vibration with the vehicle in the opposite condition (loaded or unloaded).

NOTE: Verify suspension is not modified from the original configuration. Aftermarket leveling kits and rear leaf spring shackle kits change ride height, which affects pinion angle and other critical driveline related operating angles. Vehicle must be at OEM specifications before accurate evaluation and diagnosis can be performed.

NOTE: The driveline angle must be measured with the vehicle in the same condition as the concern (loaded or unloaded) to determine the amount of adjustment necessary to correct the condition.

1.

Measure the driveline angle. REFER to: Driveshaft Angle Measurement .

2.

If the driveline does not have an optimum 3.5 degree operating range, use the Service Kit for Adjusting Rear Axle Pinion Angle (base part number -4C088-) to correct the angle. The kit contains all of the parts necessary for the adjustment procedure.

The U-joints must be equal or within one degree of each other.

The driveline can have a maximum 3.5 degree operating angle.

The U-joints must have at least one-half of one degree continuous operating angle.

Part Number	Part Name
5A313	1 degree pinion angle shim
5A313	2 degree pinion angle shim

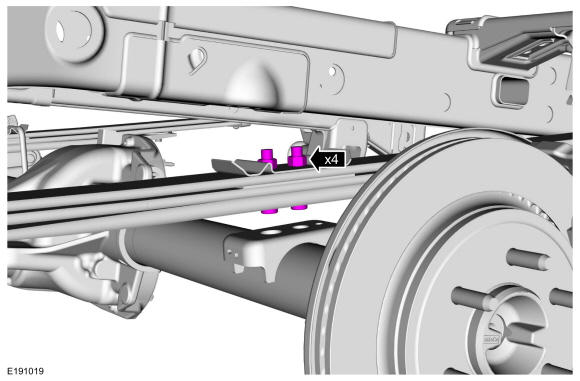

5595	Upper U-bolt center plate bolt (4 required)

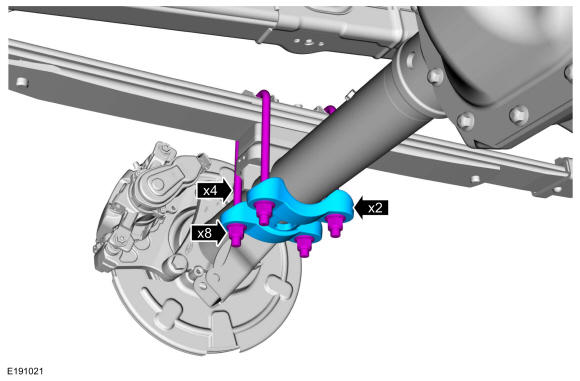

5705	U-bolt (4 required)

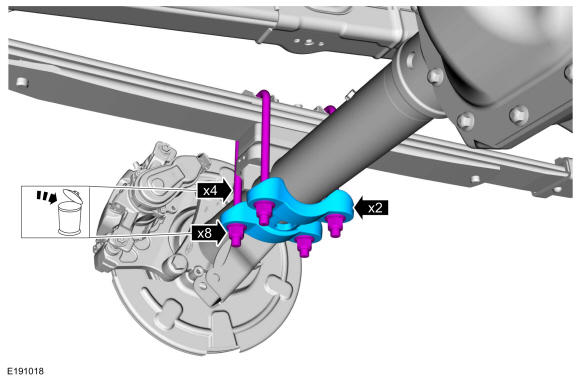

W520215	U-bolt nut (8 required)

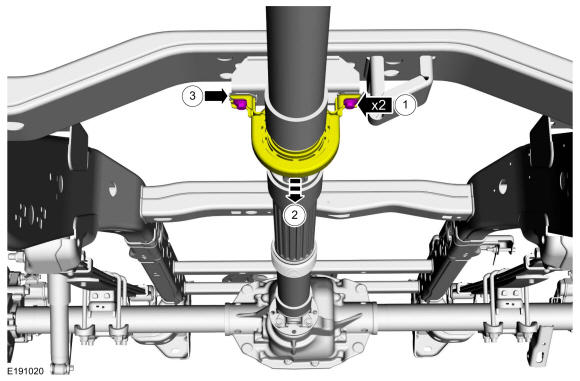

W715579	Center bearing support bolt
W717158	Center bearing support nut
4A209	Center bearing support shim
506545	Shock absorber lower bolt
W520214	Shock absorber lower nut

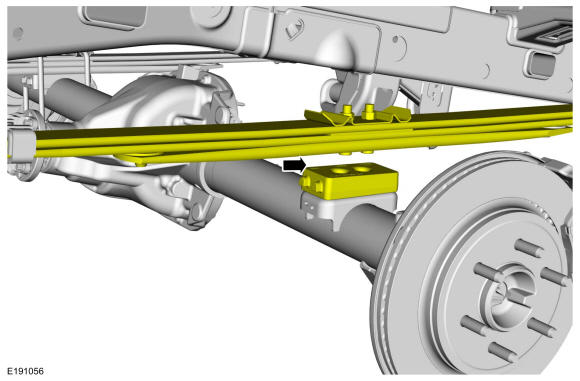

NOTE: The driveline angle on these vehicles can be changed by adding 1 degree or 2 degree pinion angle shims.

3.

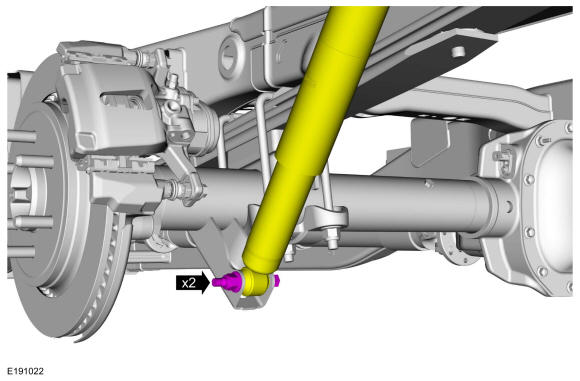

NOTE: Left side shown in illustration, right side similar.

Using the general equipment to support the rear axle, remove and discard the rear shock absorber lower nut and bolt.

Use the General Equipment: Transmission Jack
