Driveshaft Universal Joint: Assembly

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Install the U-joint kits as complete assemblies only. Do not mix components from other U-joint kits.

1.

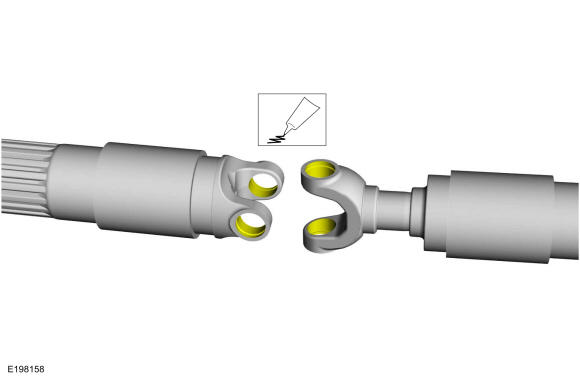

Lube the U-joint bearing cup bores.
Material

: Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

GFD38431

Courtesy of FORD MOTOR COMPANY

2.

NOTE: The tripod bearing cup needle bearings need to be in the correct position.

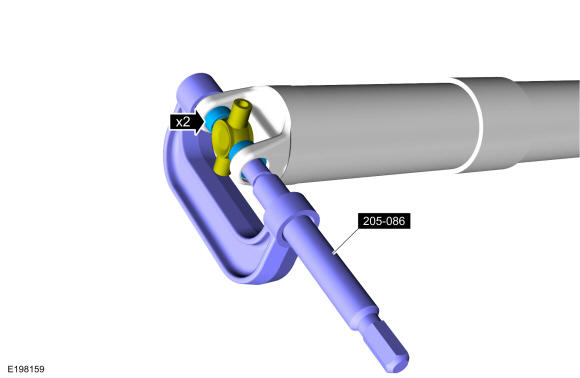

Using the special tool, install the new U-joint spider and bearing cups into the driveshaft yoke.

Use Special Service Tool: 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw.

GFD38432

Courtesy of FORD MOTOR COMPANY

3.

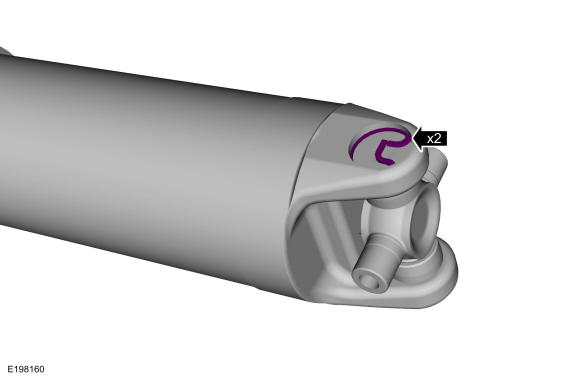

Install the new bearing cup snap rings into the driveshaft yoke grooves.

GFD38433

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Driveshaft to rear axle flange yoke U-joint shown in illustration, others similar.

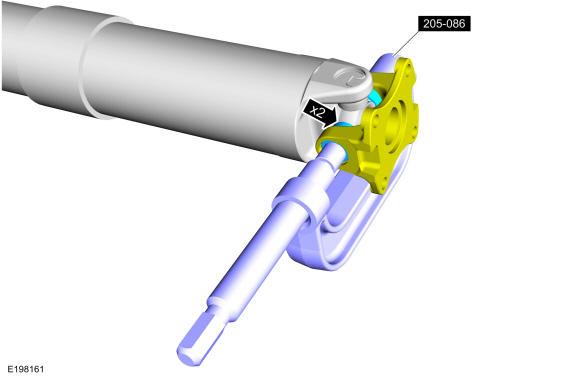

Using the special tool, install the new bearing cups on the opposite side of the driveshaft slip yoke.

Use Special Service Tool: 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw.

GFD38434

Courtesy of FORD MOTOR COMPANY

5.

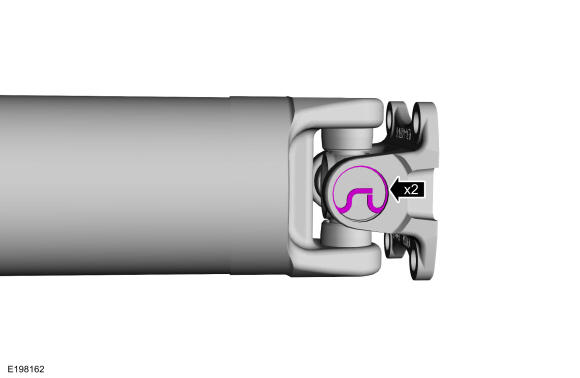

Install the new bearing cup snap rings into the driveshaft yoke grooves.

GFD38435

Courtesy of FORD MOTOR COMPANY

6.

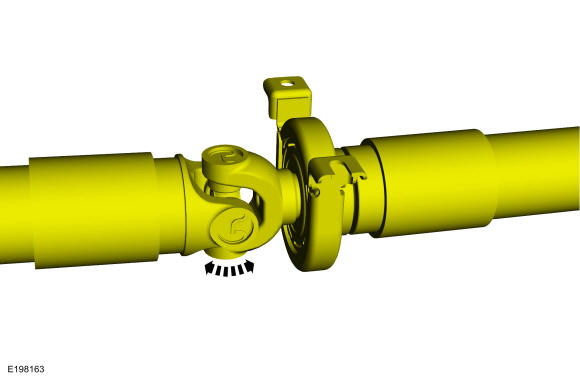

Rotate the driveshaft yoke to make sure the U-joints are free to rotate easily, without binding, before installing the driveshaft.

GFD38436

Courtesy of FORD MOTOR COMPANY

7.

Install the driveshaft. REFER to: Rear Driveshaft .
