Upper Arm: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1.

Measure the distance from the center of the hub to the lip of the fender with the vehicle in a level, static ground position (curb height).

Courtesy of FORD MOTOR COMPANY

2.

Remove the shock absorber and spring assembly. Refer to: Shock Absorber and Spring Assembly .

3.

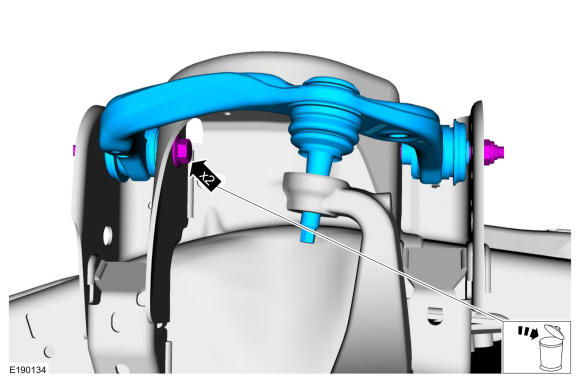

Remove and discard the 2 upper arm bolts and nuts and remove the upper arm.

Courtesy of FORD MOTOR COMPANY
