Shock Absorber and Spring Assembly: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
- 1.NOTE: The wheel speed sensor electrical connector is located in the engine compartment secured to the fender apron.
Disconnect the wheel speed sensor electrical connector.
- 2.
Remove the brake disc. Refer to: Brake Disc .
- 3.
- 1.
Remove the wheel speed sensor wire bracket bolt.
- 2.
Unclip the wheel speed sensor wire from the brake hose.
- 3.
Unclip the 2 wheel speed sensor wire retainers and position aside the wheel speed sensor wire.
- 1.
- 6.NOTE: Do not use a hammer to separate the outer tie-rod end from the wheel knuckle or damage to the wheel knuckle may result.NOTE: Use care when installing the tie rod separator or damage to the outer tie-rod end boot may occur.
Remove and discard the tie rod end nut and separate the tie rod end from the wheel knuckle.
Use the General Equipment: Tie Rod End Remover
- 10.NOTE: Be sure not to damage the ball joint boot when installing the Ball Joint Separator.
Separate the upper ball joint from the wheel knuckle.
Use Special Service Tool: 204-592 Separator, Lower Arm Ball Joint.
- 12.NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result.NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.
Separate the wheel knuckle from the lower ball joint and remove the wheel knuckle.
Use Special Service Tool: 204-592 Separator, Lower Arm Ball Joint.
- 16.
- 1.

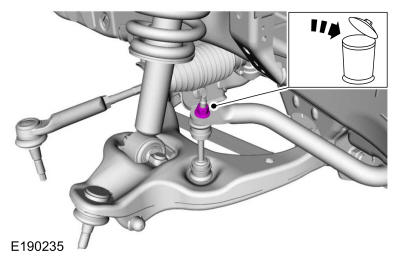

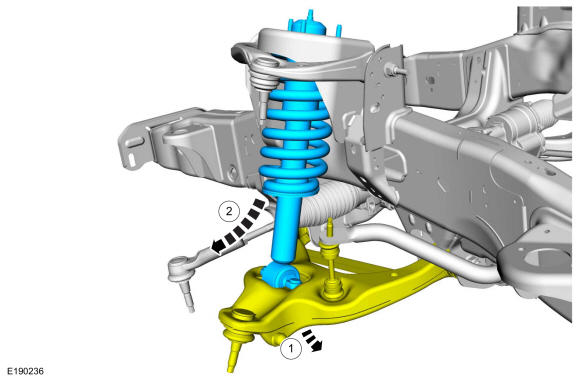

Position the lower arm down to gain clearance for removing the shock absorber and spring assembly.
- 2.
Remove the shock absorber and spring assembly.
- 1.
- 17.NOTE: If the individual spring and/or shock components are not being serviced, continue to the installation procedure.NOTE: For reference during assembly, index the upper mount, spring and shock absorber.
Compress the spring until the tension is released from the shock absorber.
Use the General Equipment: Spring Compressor
- 18.NOTE: Use the hex-holding feature to prevent the shock rod from turning while removing the nut.
Remove and discard the shock rod nut.
- 19.
Remove the upper mount and the shock absorber from the spring.Use the General Equipment: Spring Compressor
