Wheel Knuckle: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

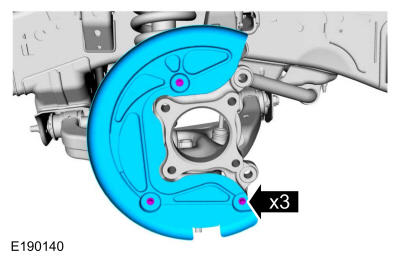

If necessary. Install the brake disc shield and the brake disc shield bolts.Torque
: 150 lb.in (17 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 2.
- 1.

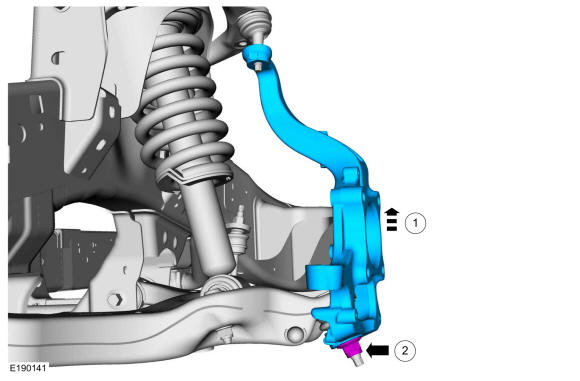

Install the wheel knuckle.
- 2.
Install the new lower ball joint nut.Torque
: 76 lb.ft (103 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 3.

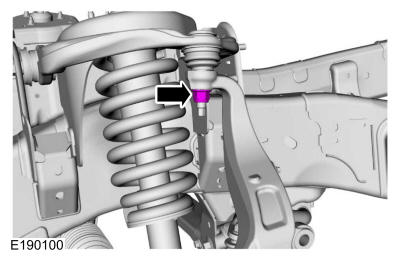

Install the new upper ball joint nut.Torque
: 46 lb.ft (63 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 4.

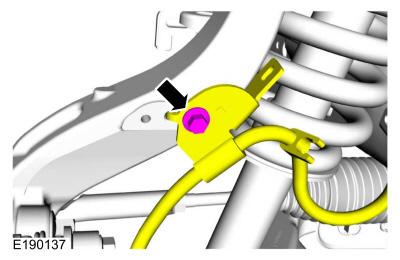

Position the brake hose and install the brake hose bracket bolt.Torque
: 22 lb.ft (30 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 5.

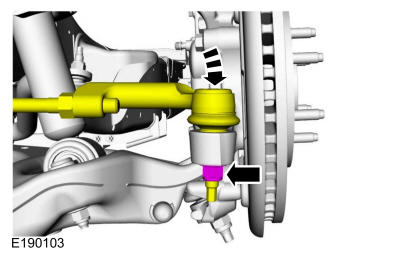

Position the tie rod end and install the new tie rod end nut.Torque
: 76 lb.ft (103 Nm)
 Courtesy of FORD MOTOR COMPANY
|
