Shock Absorber and Spring Assembly: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Install the shock absorber and the upper mount.
Use the General Equipment: Spring Compressor

Courtesy of FORD MOTOR COMPANY

2.

NOTE: If the individual spring and/or shock components are not being serviced, continue to the installation procedure.

NOTE: For reference during assembly, index the upper mount, spring and shock absorber.

Compress the spring until the tension is released from the shock absorber.

Use the General Equipment: Spring Compressor

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Use the hex-holding feature to prevent the shock rod from turning while installing the nut.

While holding the shock rod, install the new shock absorber and the shock rod nut.

Torque

: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

4.

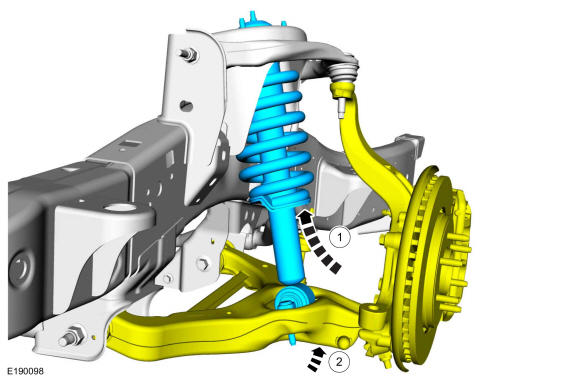

- 1.

  Install the shock absorber and spring assembly.
- 2.

  Position the lower arm and wheel knuckle up.

Courtesy of FORD MOTOR COMPANY

5.

Install the new shock absorber and spring assembly upper nuts.
Torque

: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY

6.

Install the new upper ball joint nut.
Torque

: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

7.

Install the new shock absorber and spring assembly lower nuts.
Torque

: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

8.

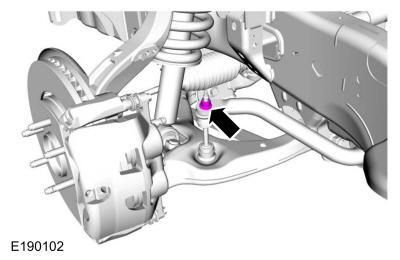

NOTE: Use the hex-holding feature to prevent the stud from turning while installing the nut.

Install the new front stabilizer link upper nut.

Torque

: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY

9.
- 1.

  Position the wheel speed sensor wire harness and install the wheel speed sensor bolt.
  Torque

  : 106 lb.in (12 Nm)
- 2.

  Position the brake hose and install the brake hose bracket bolt.
  Torque

  : 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

10.

Position the tie rod end and install the new tie rod end nut.
Torque

: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY

11.

Install the wheel and tire. Refer to: Wheel and Tire .
