Lower Arm: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

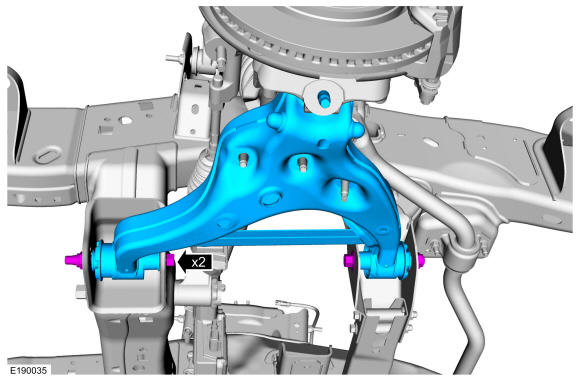

1.

NOTE: Only tighten the nuts and bolts finger tight at this stage.

Position the lower arm and install the new lower arm bolts nuts.

GFD38283

Courtesy of FORD MOTOR COMPANY

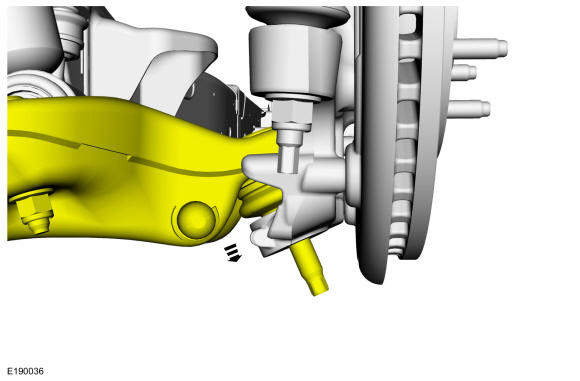

2.

Attach the lower ball joint to the wheel knuckle.

GFD38284

Courtesy of FORD MOTOR COMPANY

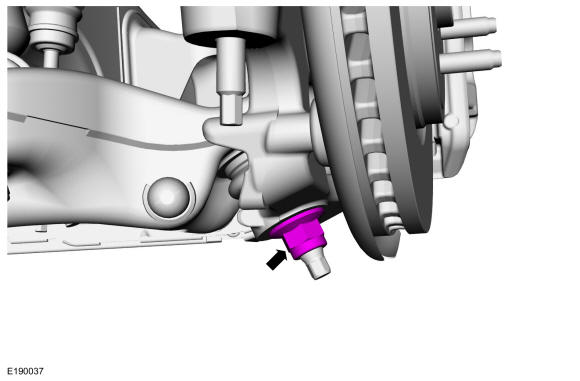

3.

Install the new lower ball joint nut.
Torque

: 76 lb.ft (103 Nm)

GFD38285

Courtesy of FORD MOTOR COMPANY

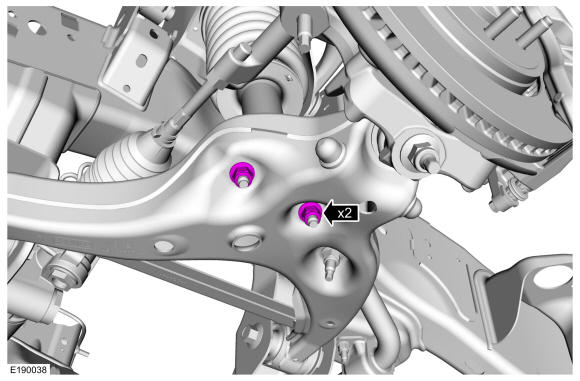

4.

Install the new shock absorber and spring assembly lower nuts.
Torque

: 66 lb.ft (90 Nm)

GFD38286

Courtesy of FORD MOTOR COMPANY

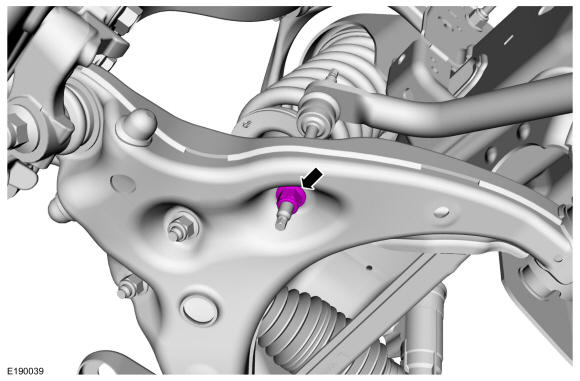

5.

NOTE: Use the hex-holding feature to prevent the stud from turning while removing the nut.

Install the new front stabilizer link lower nut.

Torque

: 52 lb.ft (70 Nm)

GFD38287

Courtesy of FORD MOTOR COMPANY

6.

Use a suitable jack to raise the suspension until the distance between the center of the hub and the lip of the fender is equal to the measurement taken during removal (curb height).

GFD38288

Courtesy of FORD MOTOR COMPANY

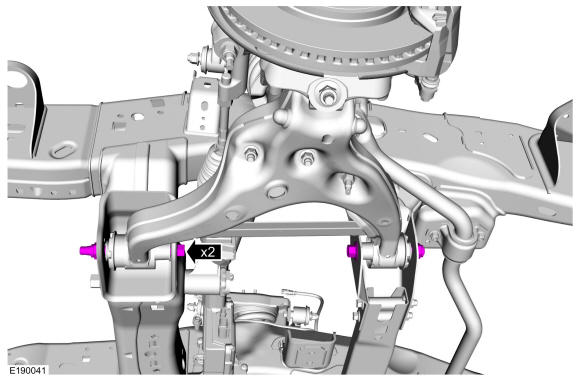

7.

Tighten the new lower arm bolts nuts.
Torque

: 258 lb.ft (350 Nm)

GFD38289

Courtesy of FORD MOTOR COMPANY

8.

Install the wheel and tire. Refer to: Wheel and Tire .

9.

Check and if necessary adjust front camber. Refer to: Front Camber and Caster Adjustment .
