Front Stabilizer Bar: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

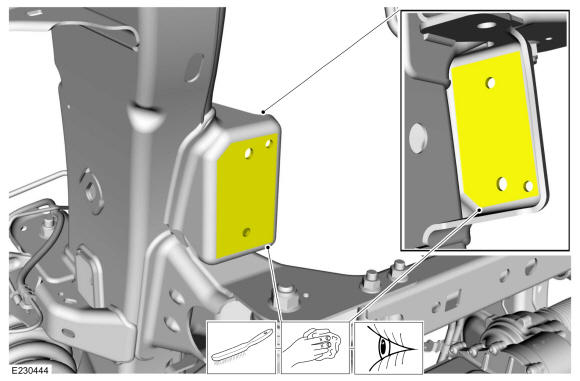

- 2.NOTE: Both surfaces must be thoroughly cleaned before inserting the new stud plates into the frame bracket holes. Any debris left under the stud plate flanges will prevent the joint from being securely tightened; allowing the joint to loosen and the stabilizer-bar to detach from the frame.
On both sides. Inspect and thoroughly clean both sides of the frame bracket mounting surfaces. Insert the new stud plates into the frame bracket holes.
