Front Toe Adjustment
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool(s) / General Equipment
| Wheel Alignment System |
|---|
Adjustment
- 1.NOTE: Make sure that the vehicle is standing on a level surface.

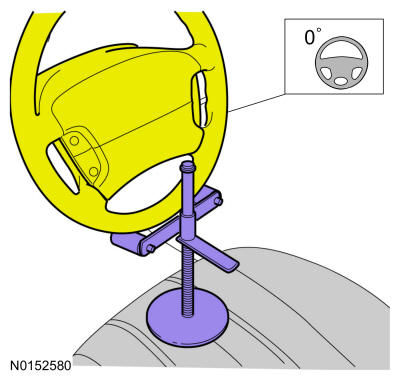

Steering wheel in straight ahead position.
- 2.
Using alignment equipment and the manufacturer's instructions, check the front toe setting on both sides.Use the General Equipment: Wheel Alignment System
- 3.

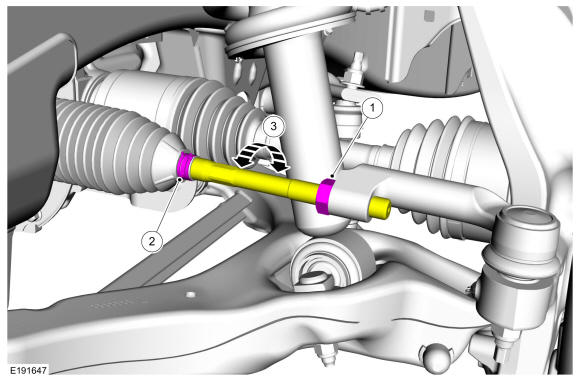

- 1.
On both sides. Loosen the outer tie rod end jamb nut.Torque
: 76 lb.ft (103 Nm)
- 2.
On both sides. Position aside the steering gear boot clamp.
- 3.NOTE: Do not allow the steering gear bellows to twist when the inner tie rod is rotated.
Rotate the inner tie rods until the toe reading is within specifications.
- 1.
