Section 632 (OEM Wiring Diagrams Component Testing)
>>
Component Testing
>>
Window Control Switch - Passenger Door
Window Control Switch - Passenger Door
WARNING:
This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

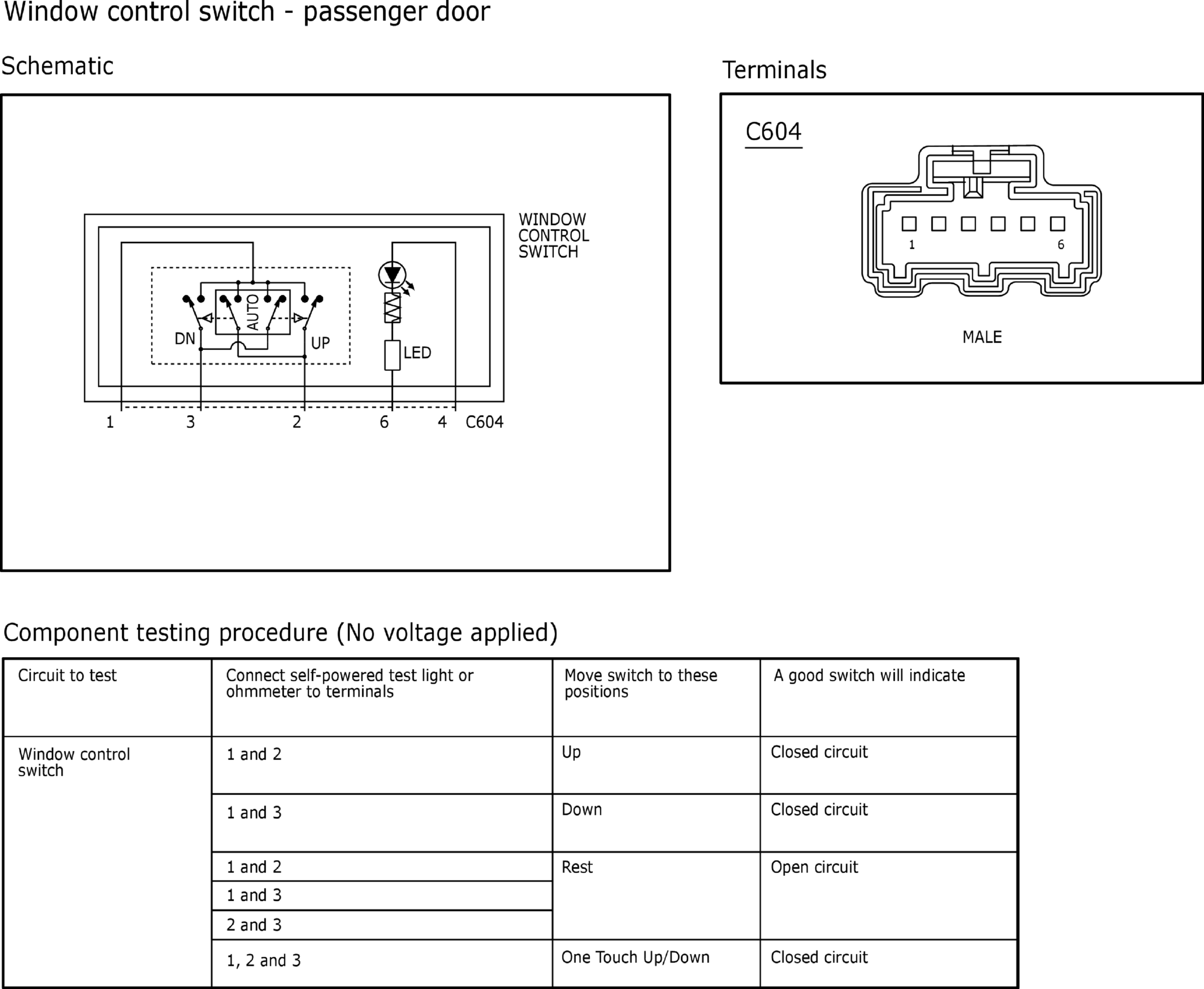

Fig 1: Window Control Switch - Passenger Door
Courtesy of FORD MOTOR COMPANY
