Component Testing: Relays
WARNING:
This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

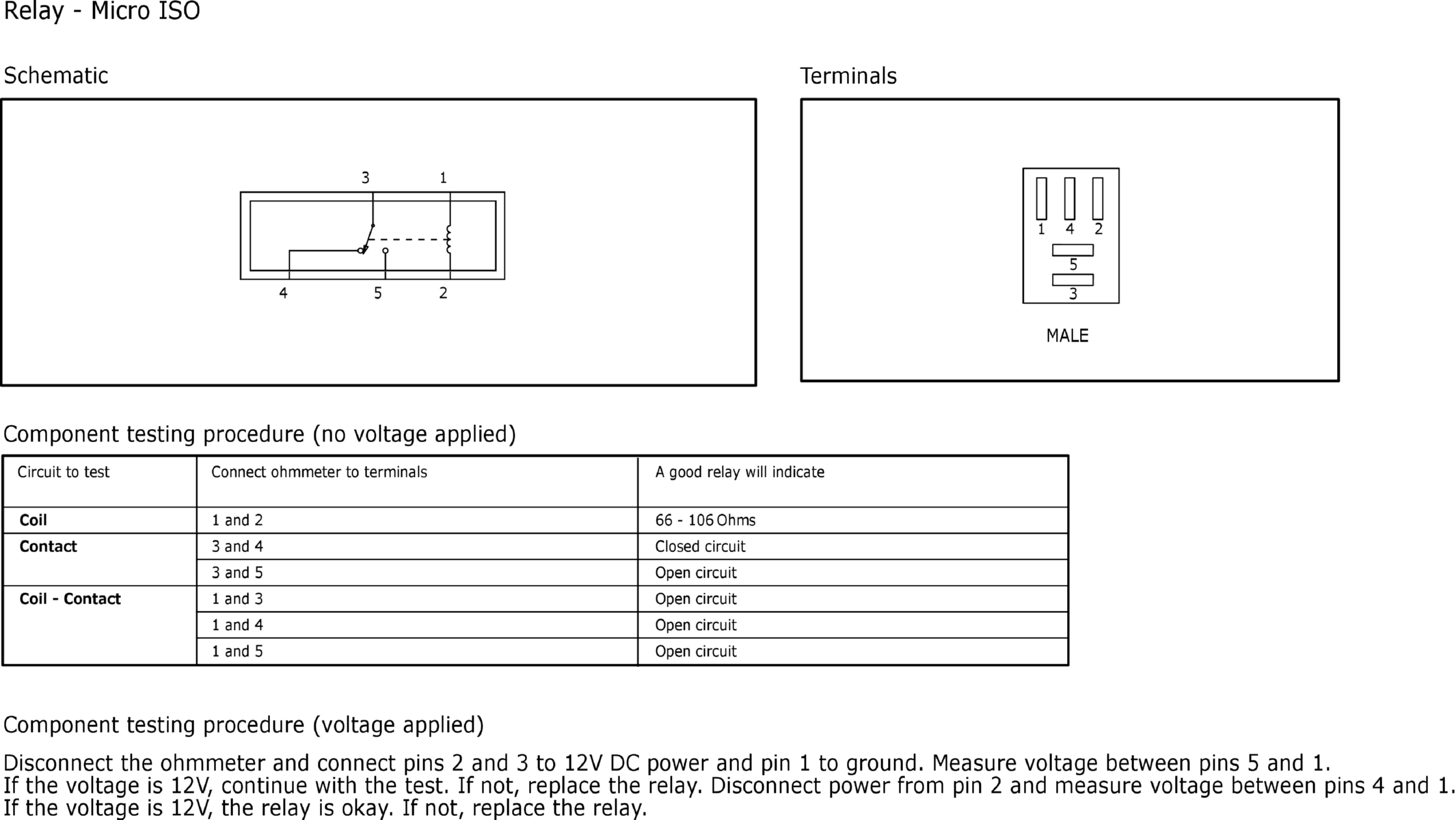

Fig 1: Relay - Micro ISO
Courtesy of FORD MOTOR COMPANY

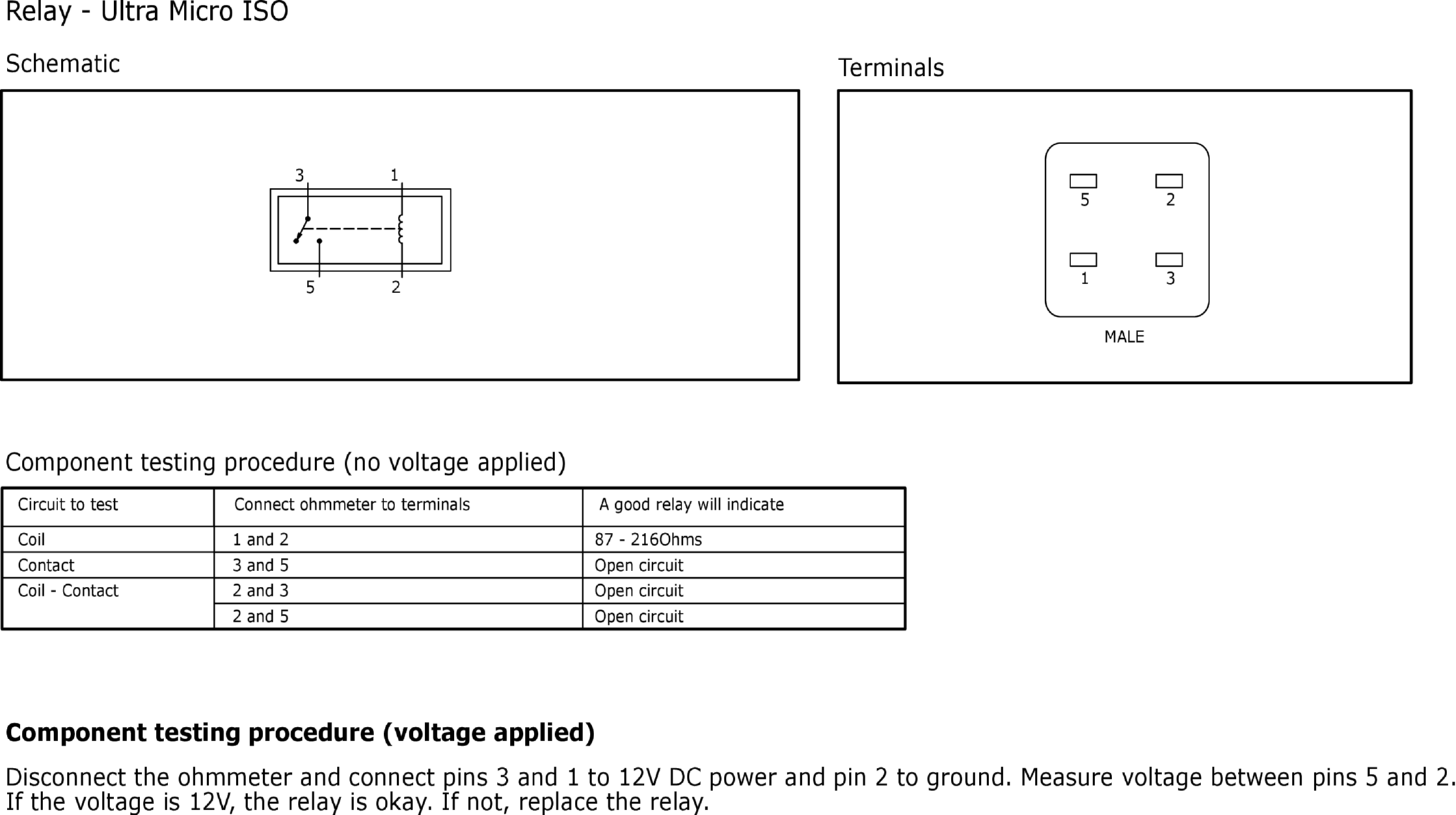

Fig 2: Relay - Ultra Micro ISO
Courtesy of FORD MOTOR COMPANY

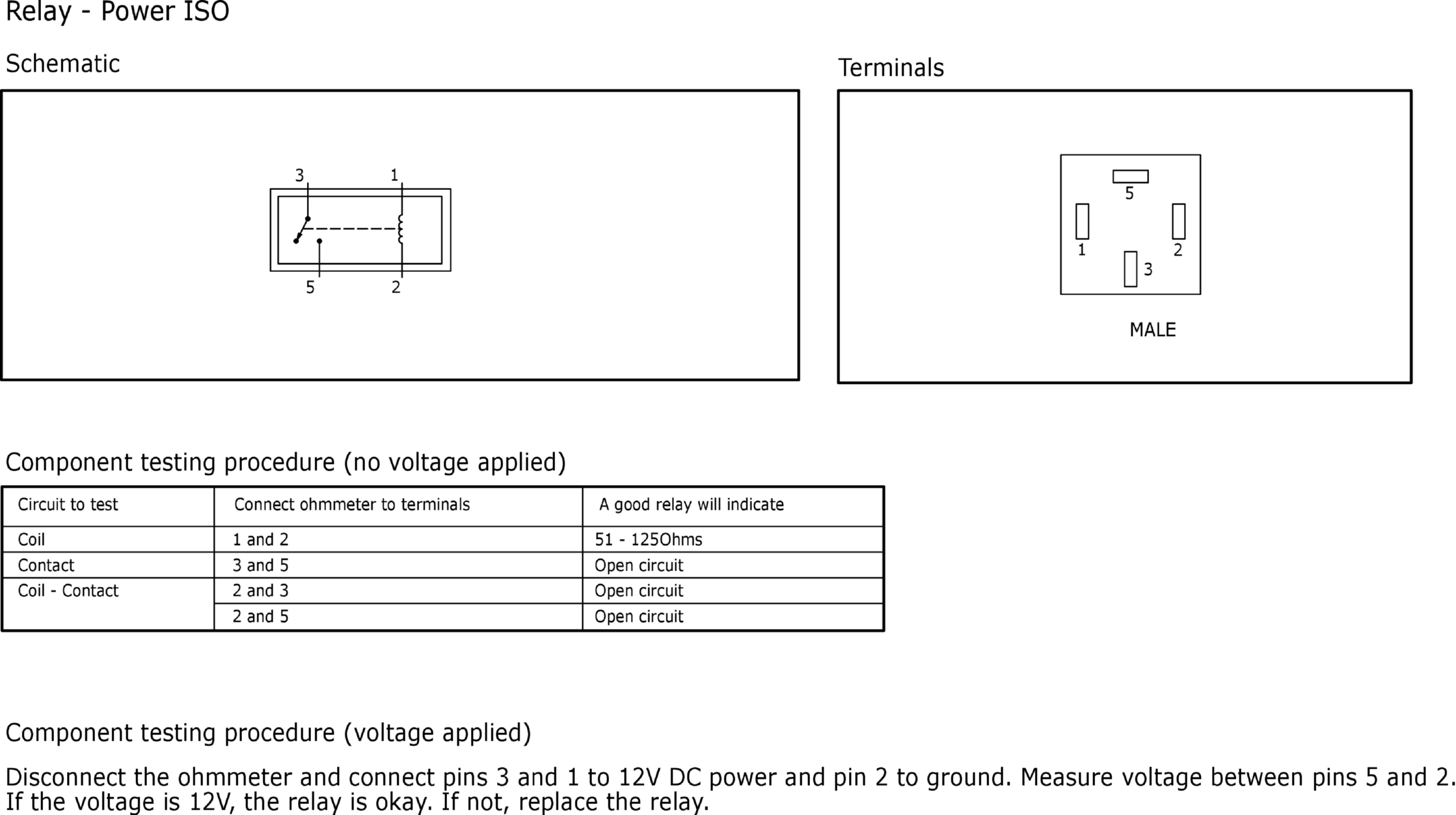

Fig 3: Relay - Power ISO
Courtesy of FORD MOTOR COMPANY
