Vehicle Emergency Messaging System

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

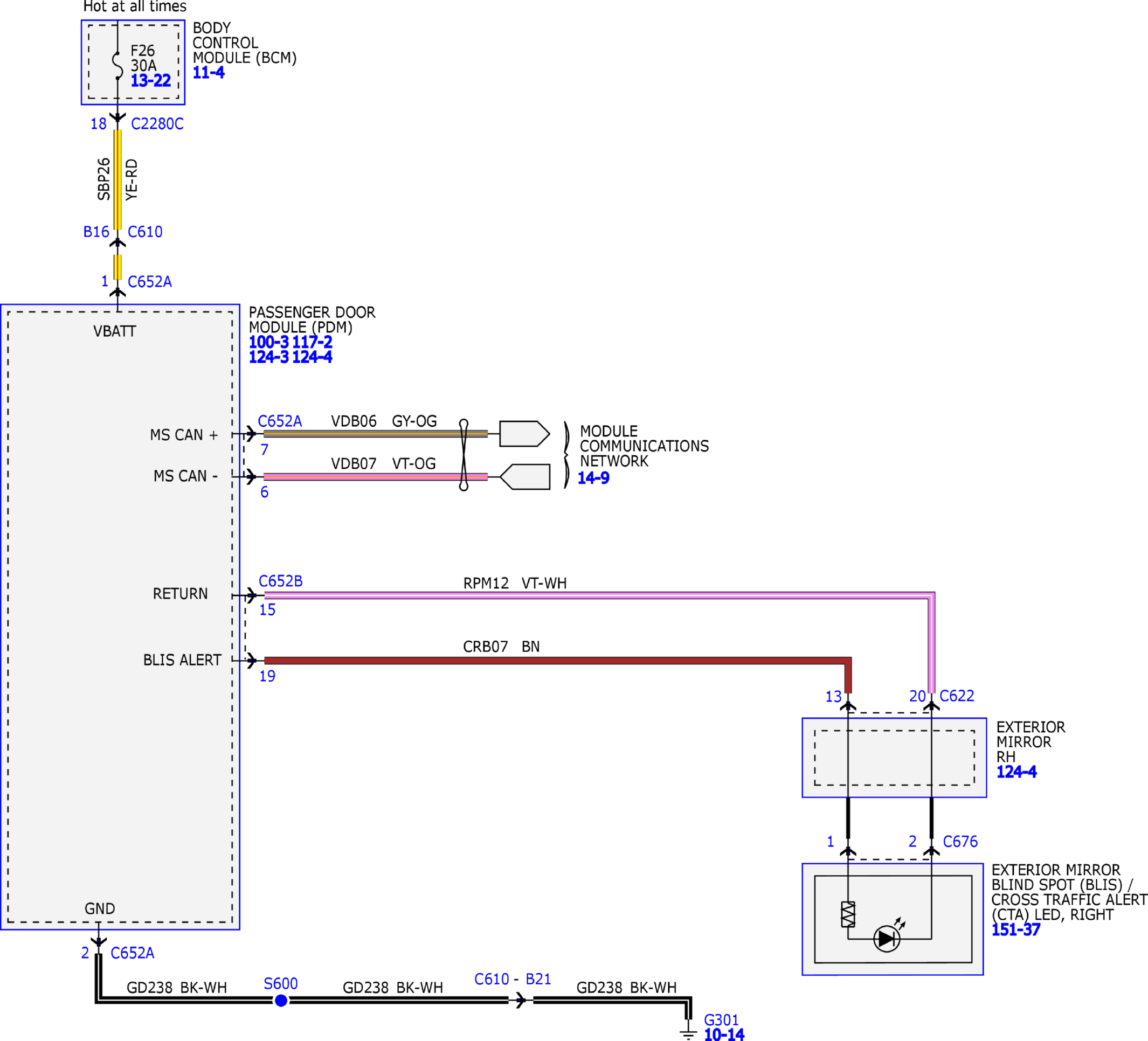

Fig 1: Vehicle Emergency Messaging System Wiring Diagrams (1 Of 5)

Courtesy of FORD MOTOR COMPANY

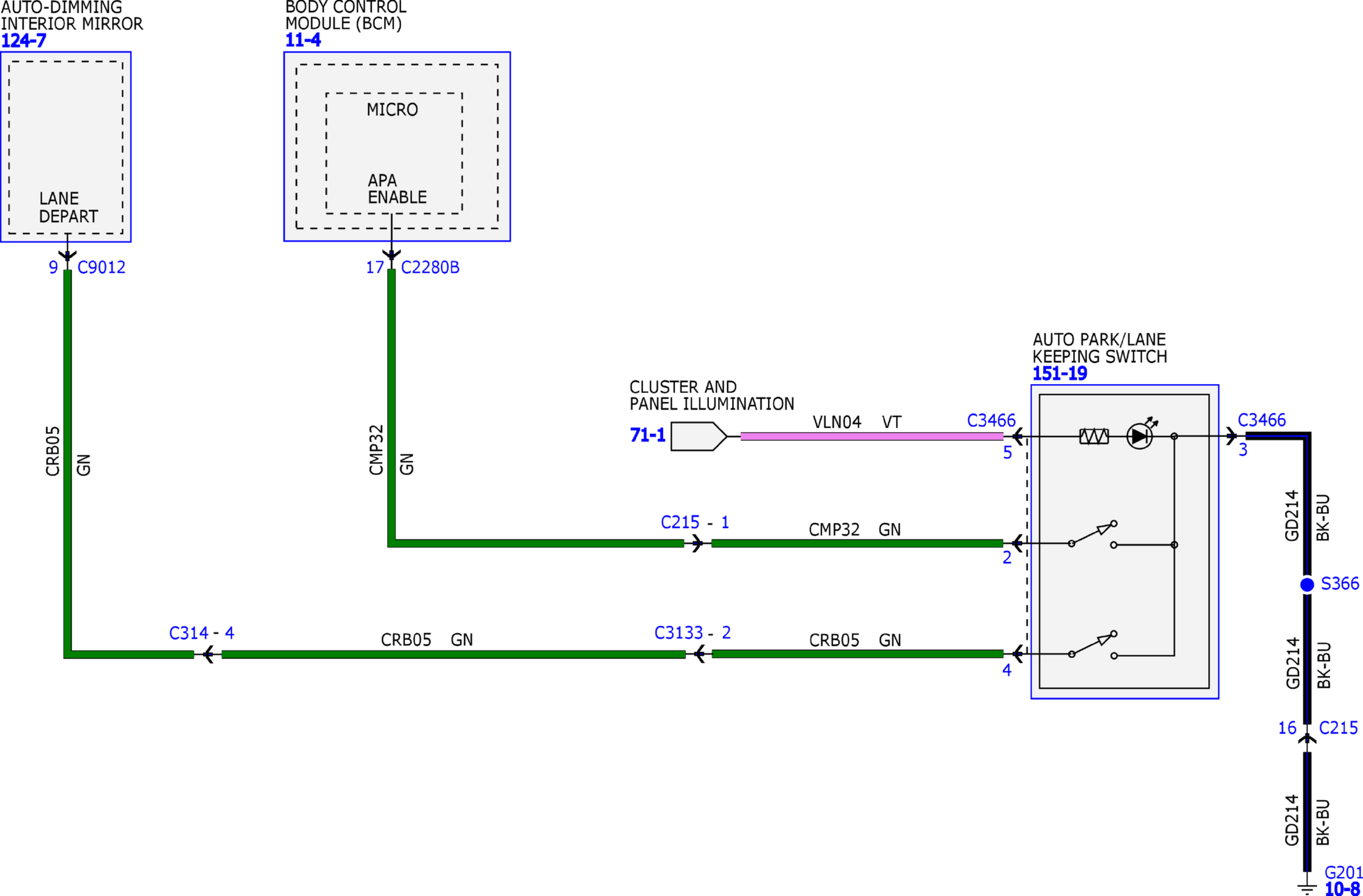

Fig 2: Vehicle Emergency Messaging System Wiring Diagrams (2 Of 5)

Courtesy of FORD MOTOR COMPANY

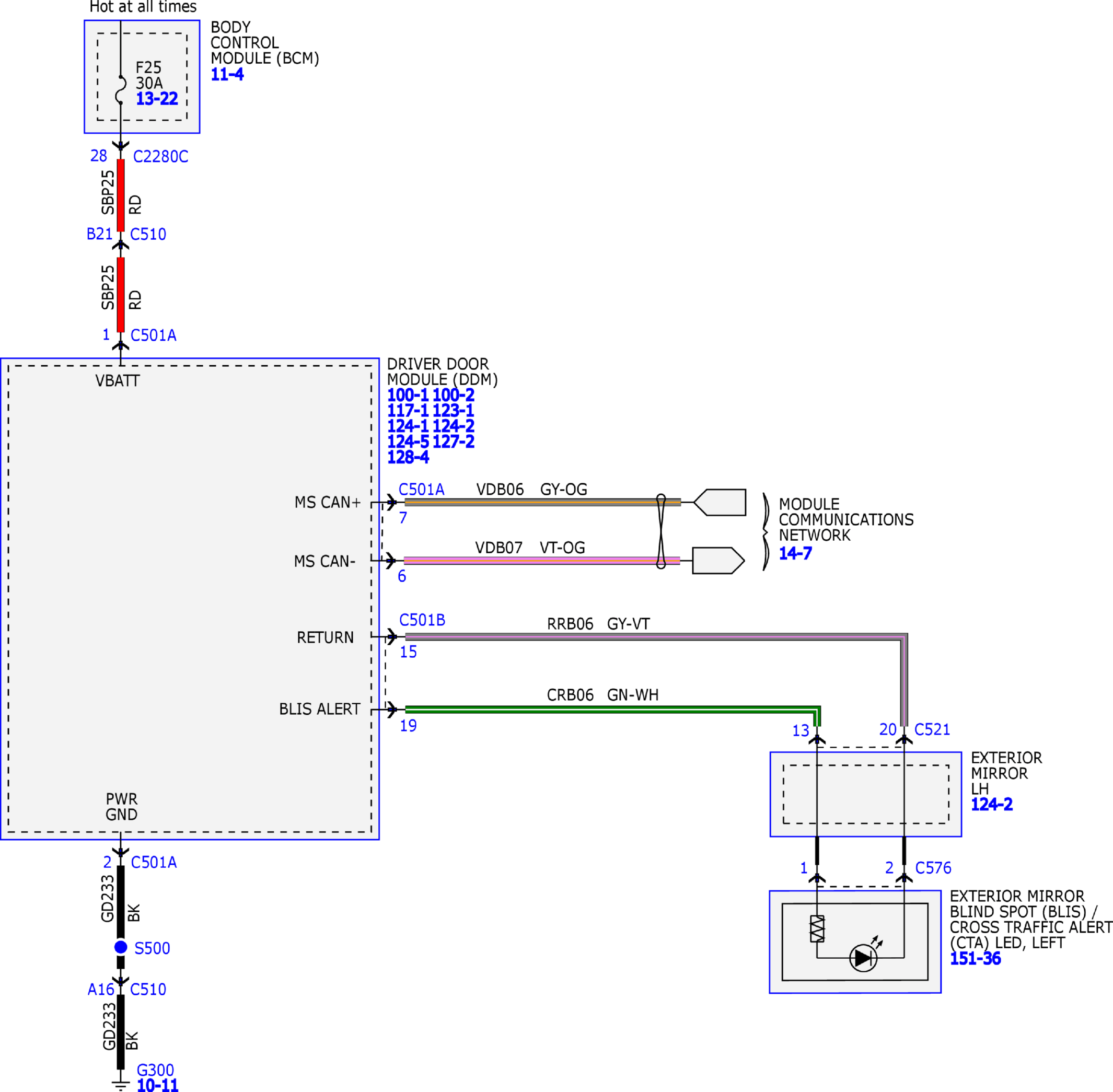

Fig 3: Vehicle Emergency Messaging System Wiring Diagrams (3 Of 5)

Courtesy of FORD MOTOR COMPANY

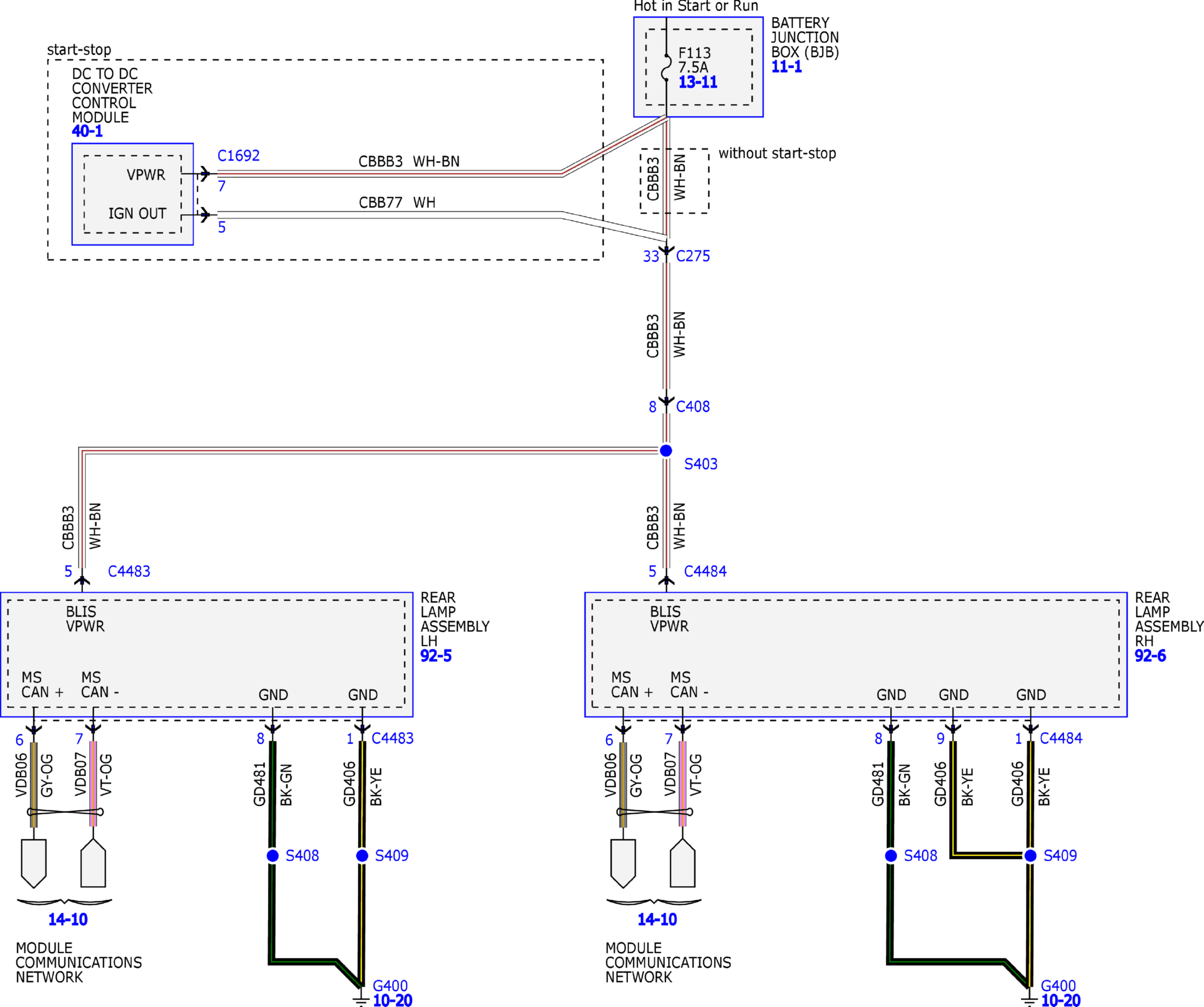

Fig 4: Vehicle Emergency Messaging System Wiring Diagrams (4 Of 5)

Courtesy of FORD MOTOR COMPANY

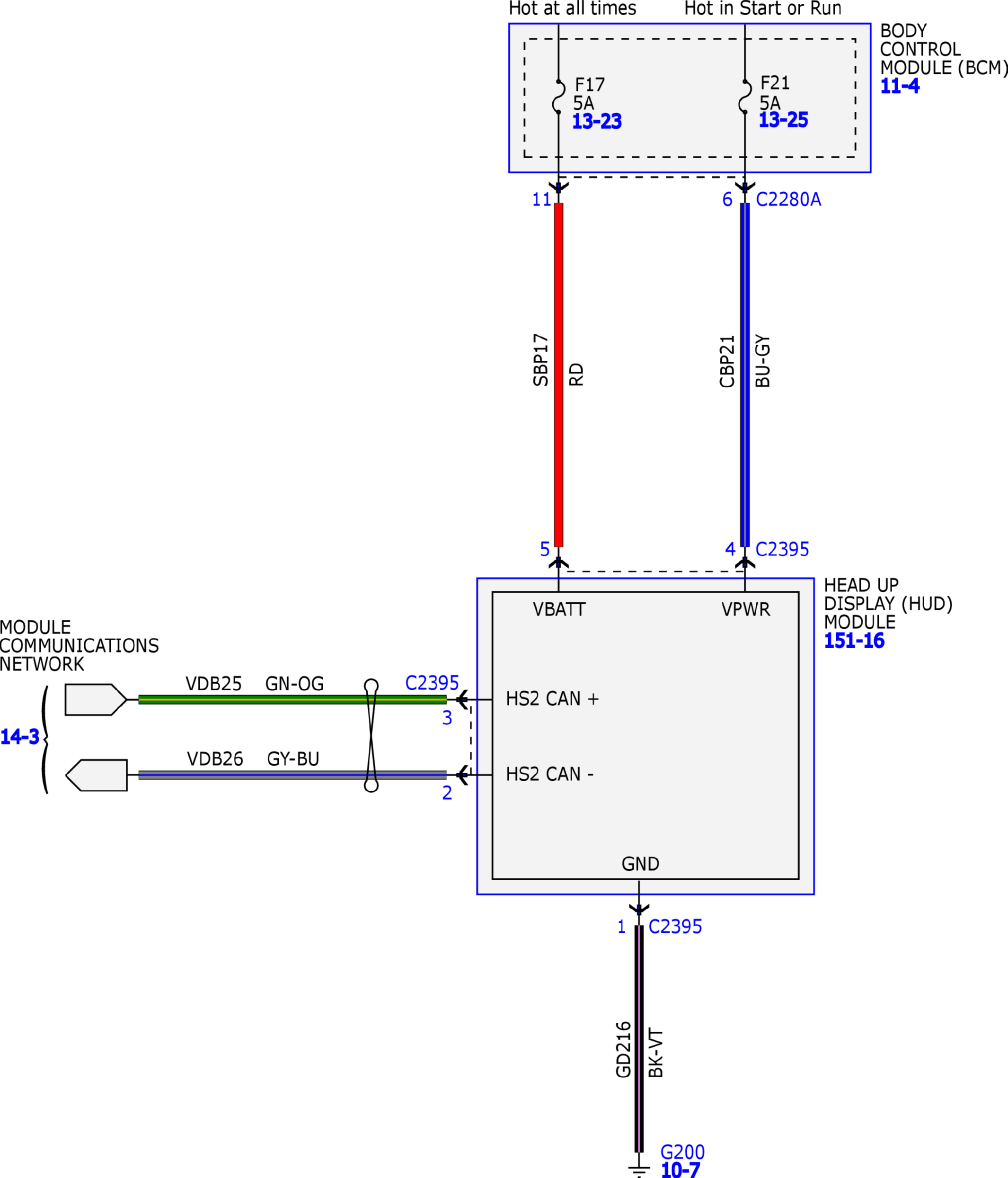

Fig 5: Vehicle Emergency Messaging System Wiring Diagrams (5 Of 5)

Courtesy of FORD MOTOR COMPANY
