Two Wheel Drive/Four Wheel Drive Systems

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

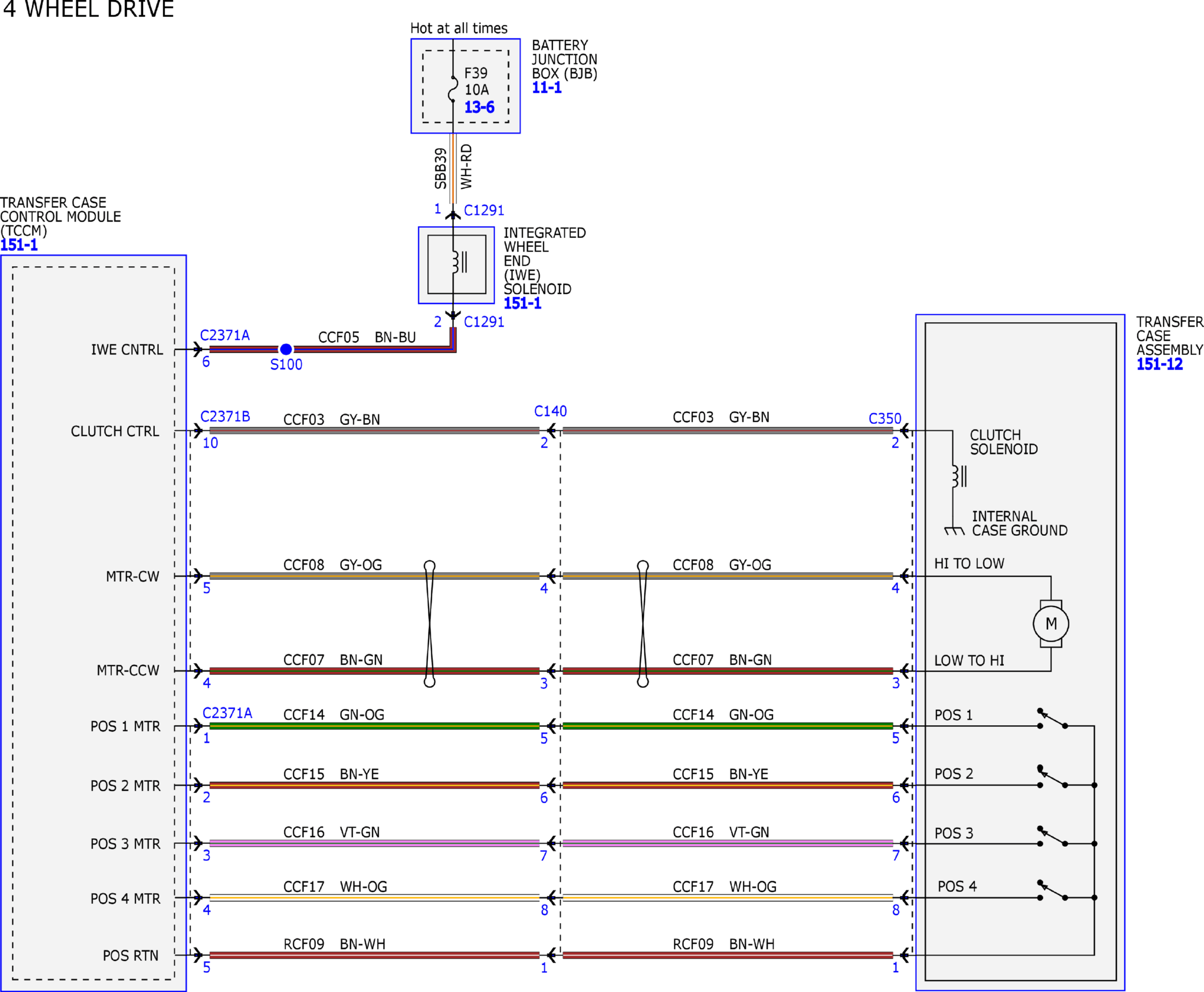

Fig 1: Two Wheel Drive/Four Wheel Drive Systems Wiring Diagrams (1 Of 4)

Courtesy of FORD MOTOR COMPANY

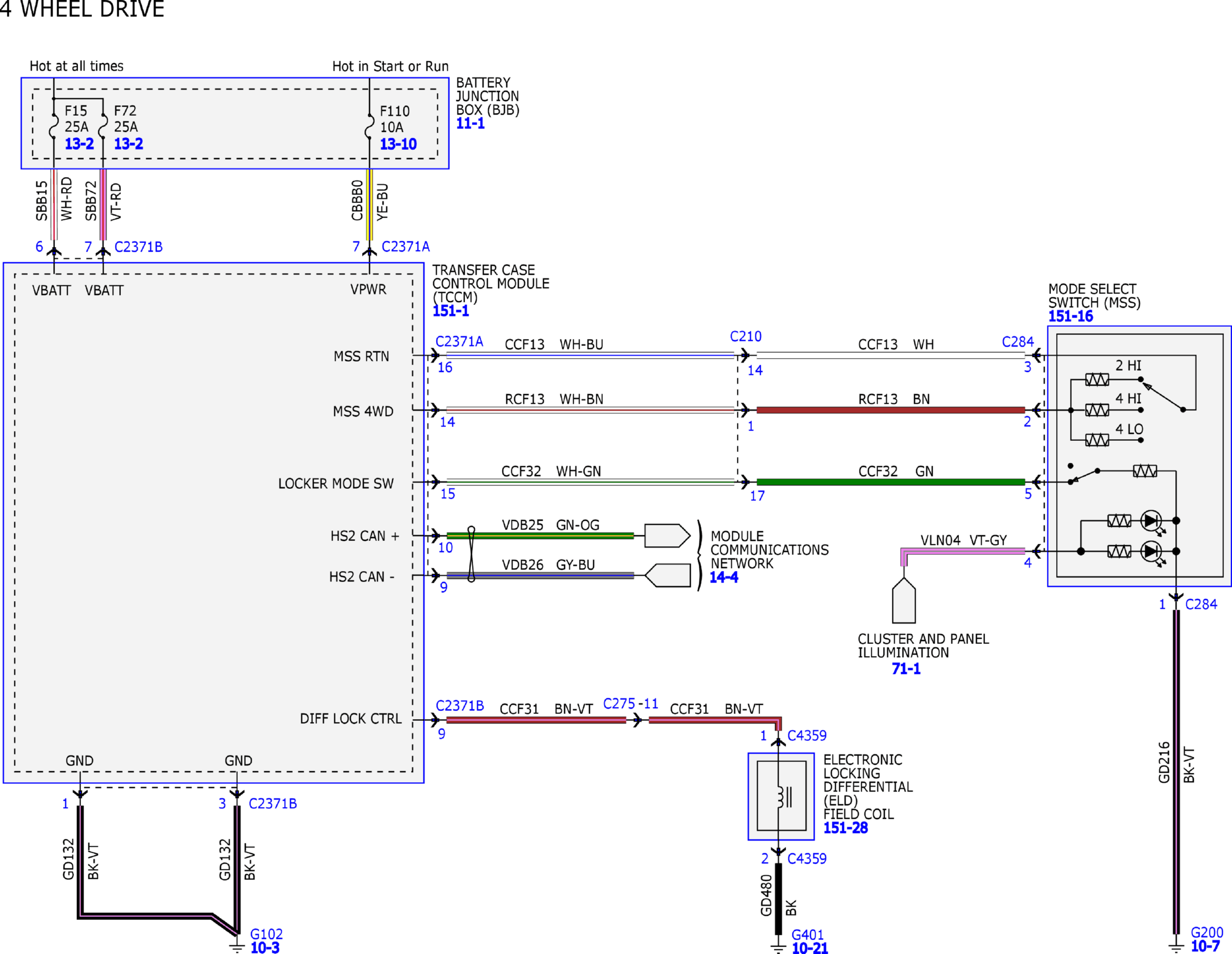

Fig 2: Two Wheel Drive/Four Wheel Drive Systems Wiring Diagrams (2 Of 4)

Courtesy of FORD MOTOR COMPANY

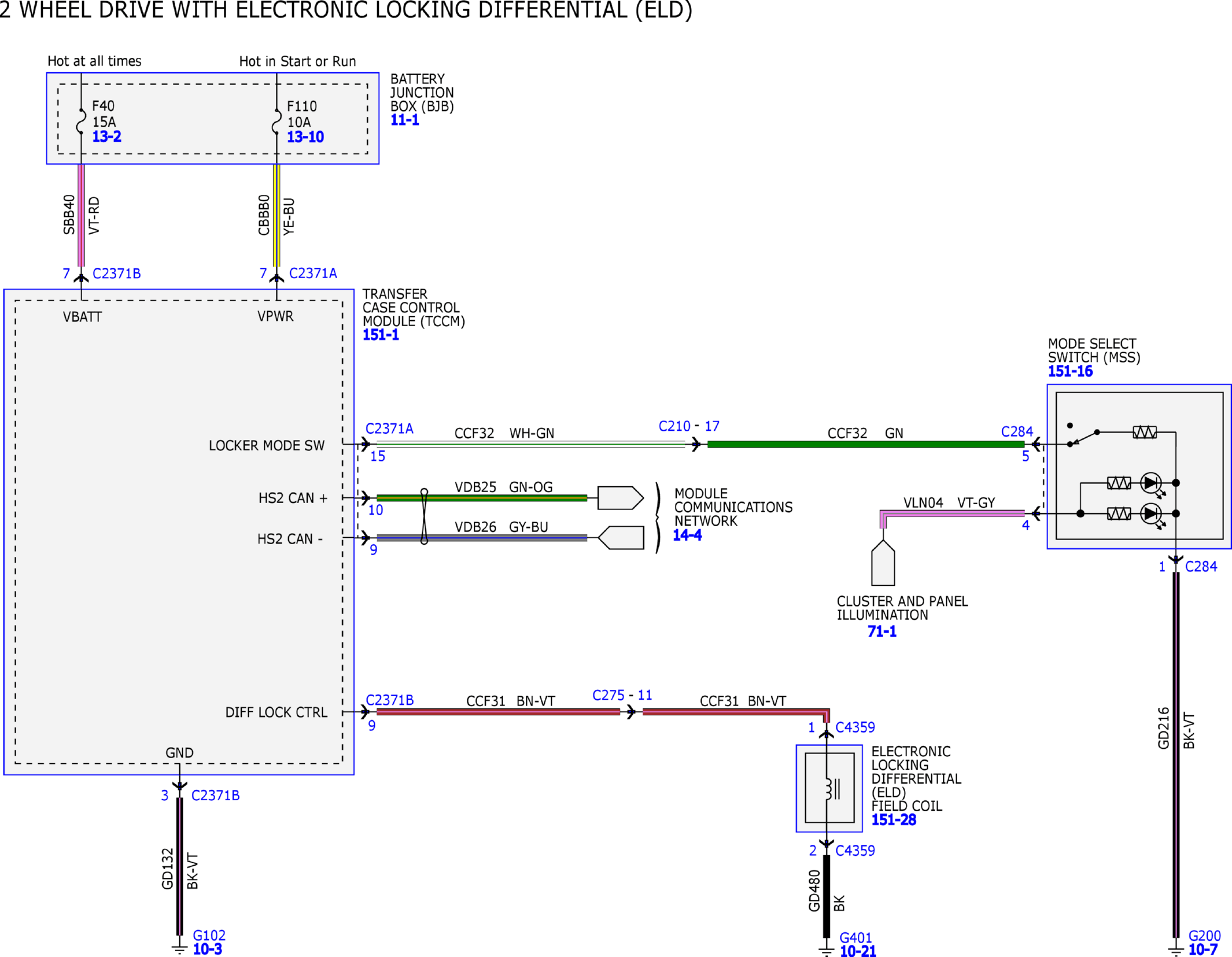

Fig 3: Two Wheel Drive/Four Wheel Drive Systems Wiring Diagrams (3 Of 4)

Courtesy of FORD MOTOR COMPANY

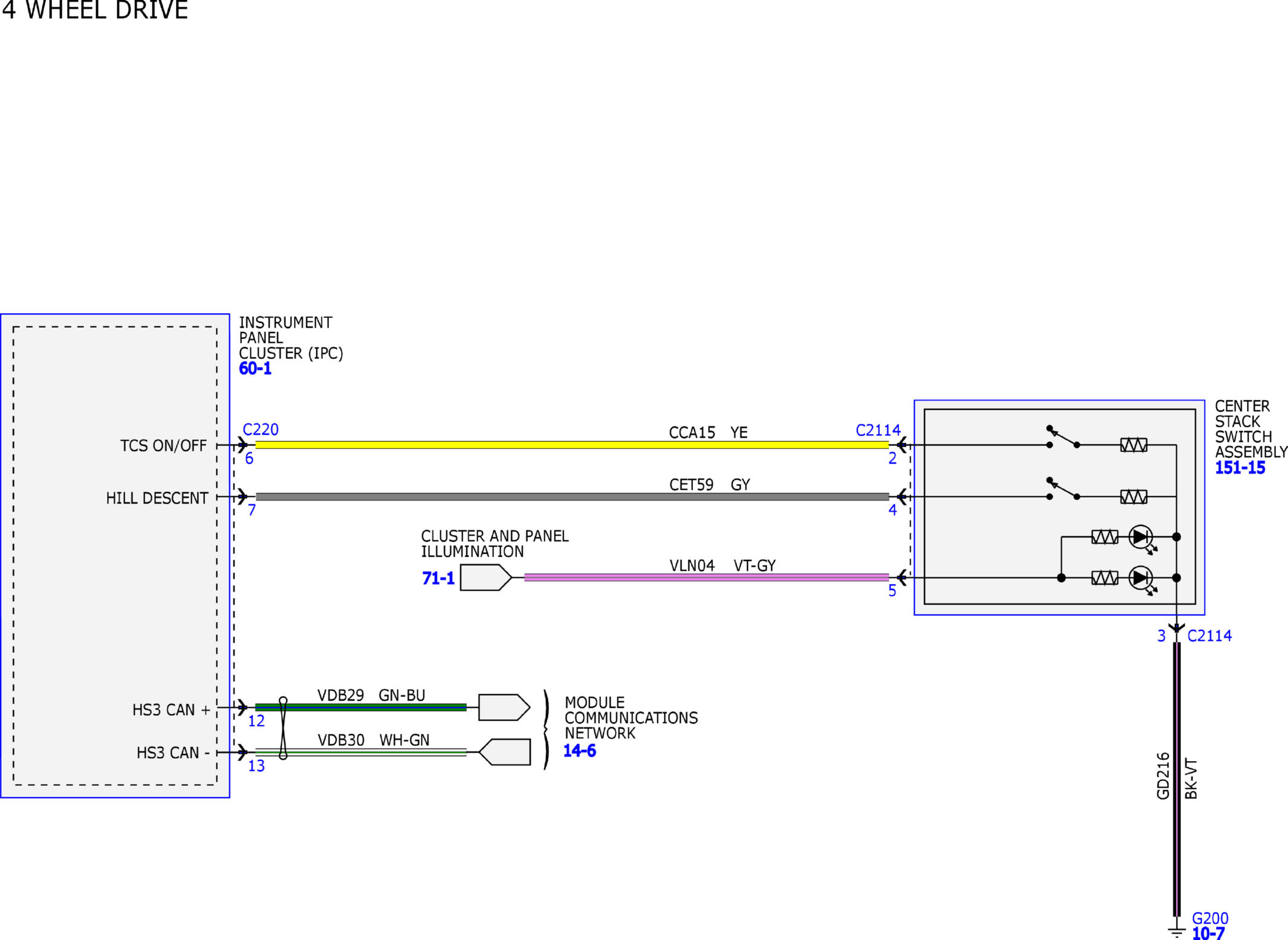

Fig 4: Two Wheel Drive/Four Wheel Drive Systems Wiring Diagrams (4 Of 4)

Courtesy of FORD MOTOR COMPANY
