Supplemental Restraint System

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

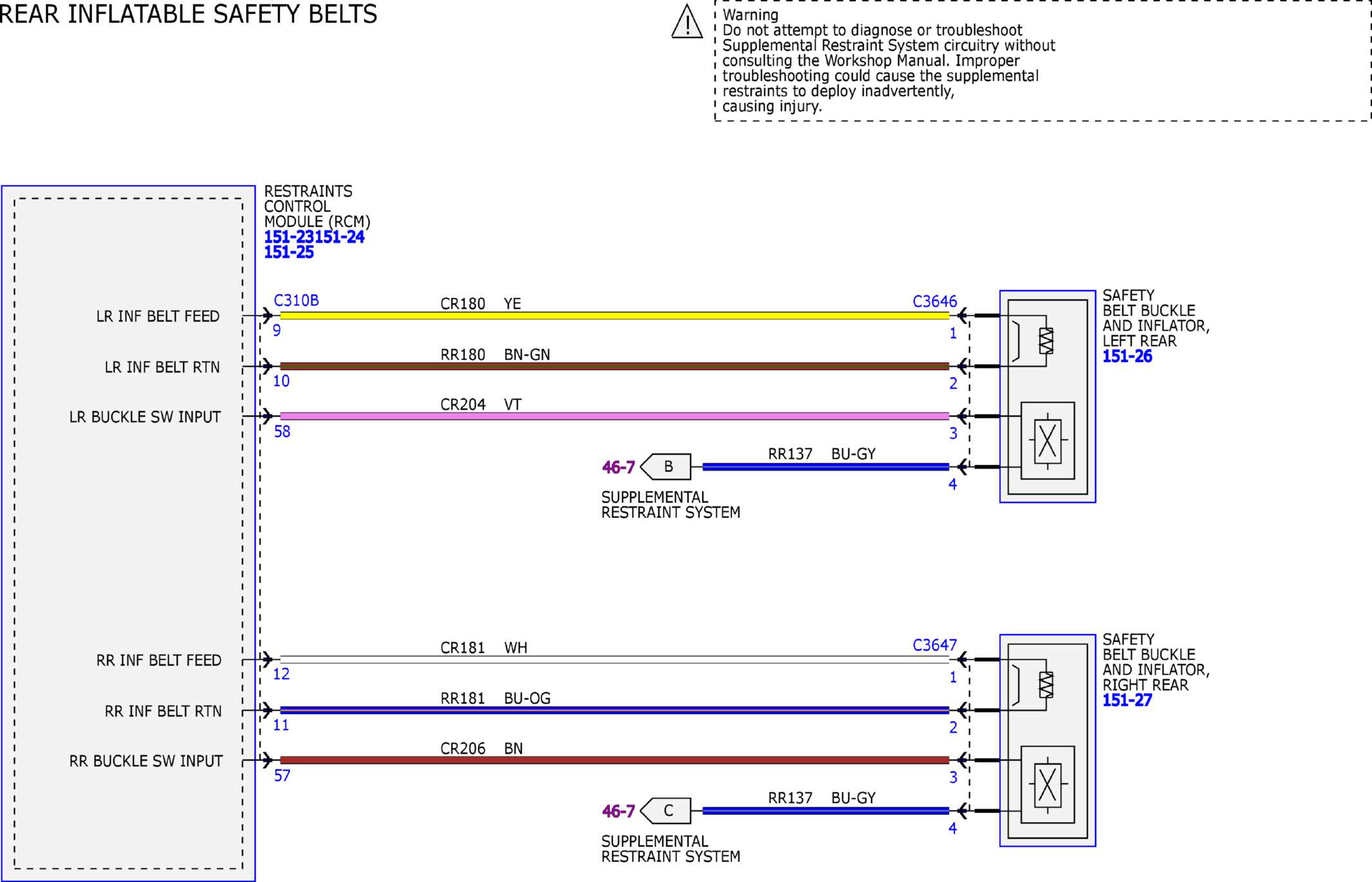

Fig 1: Supplemental Restraint System Wiring Diagrams (1 Of 8)

Courtesy of FORD MOTOR COMPANY

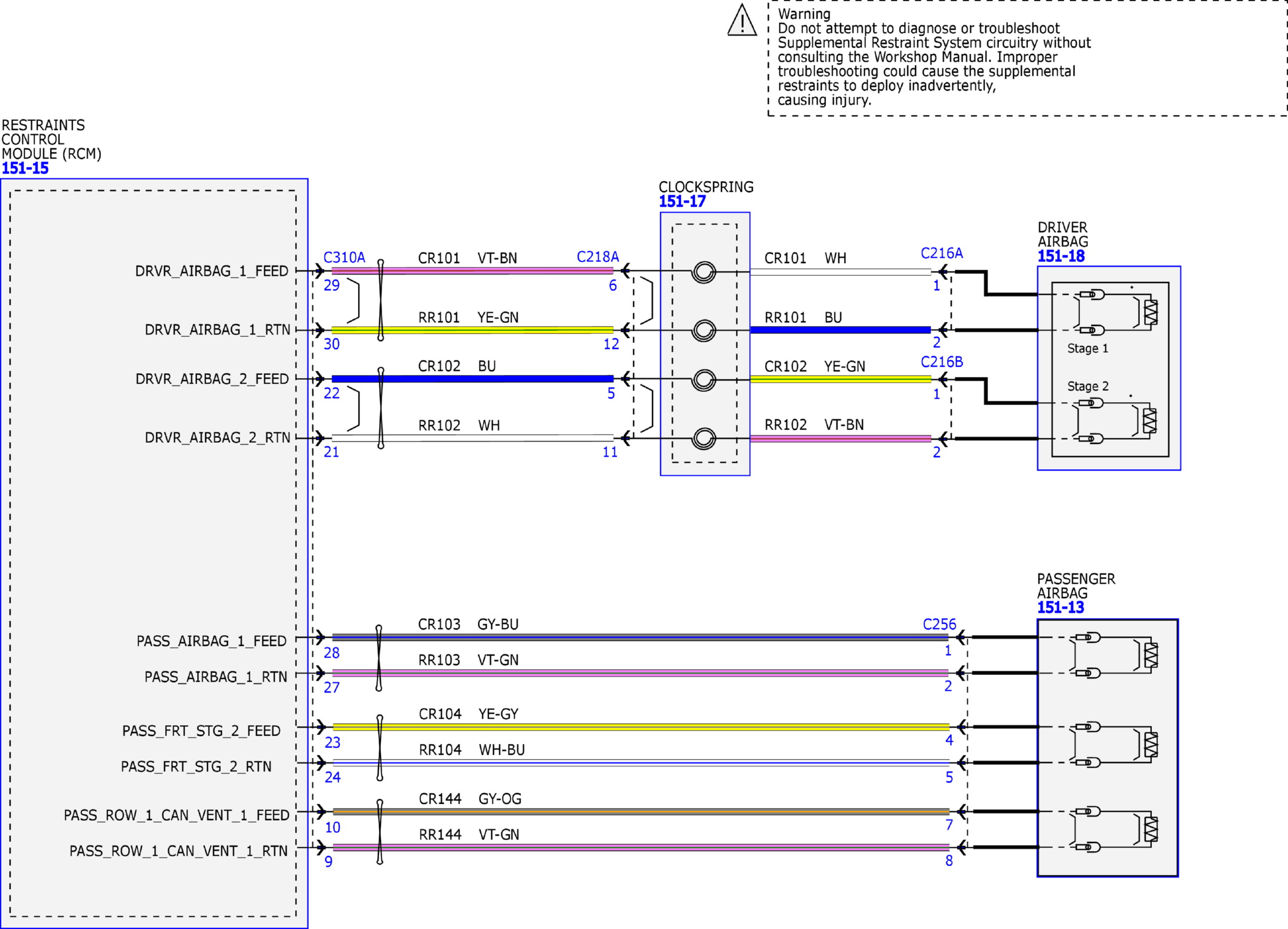

Fig 2: Supplemental Restraint System Wiring Diagrams (2 Of 8)

Courtesy of FORD MOTOR COMPANY

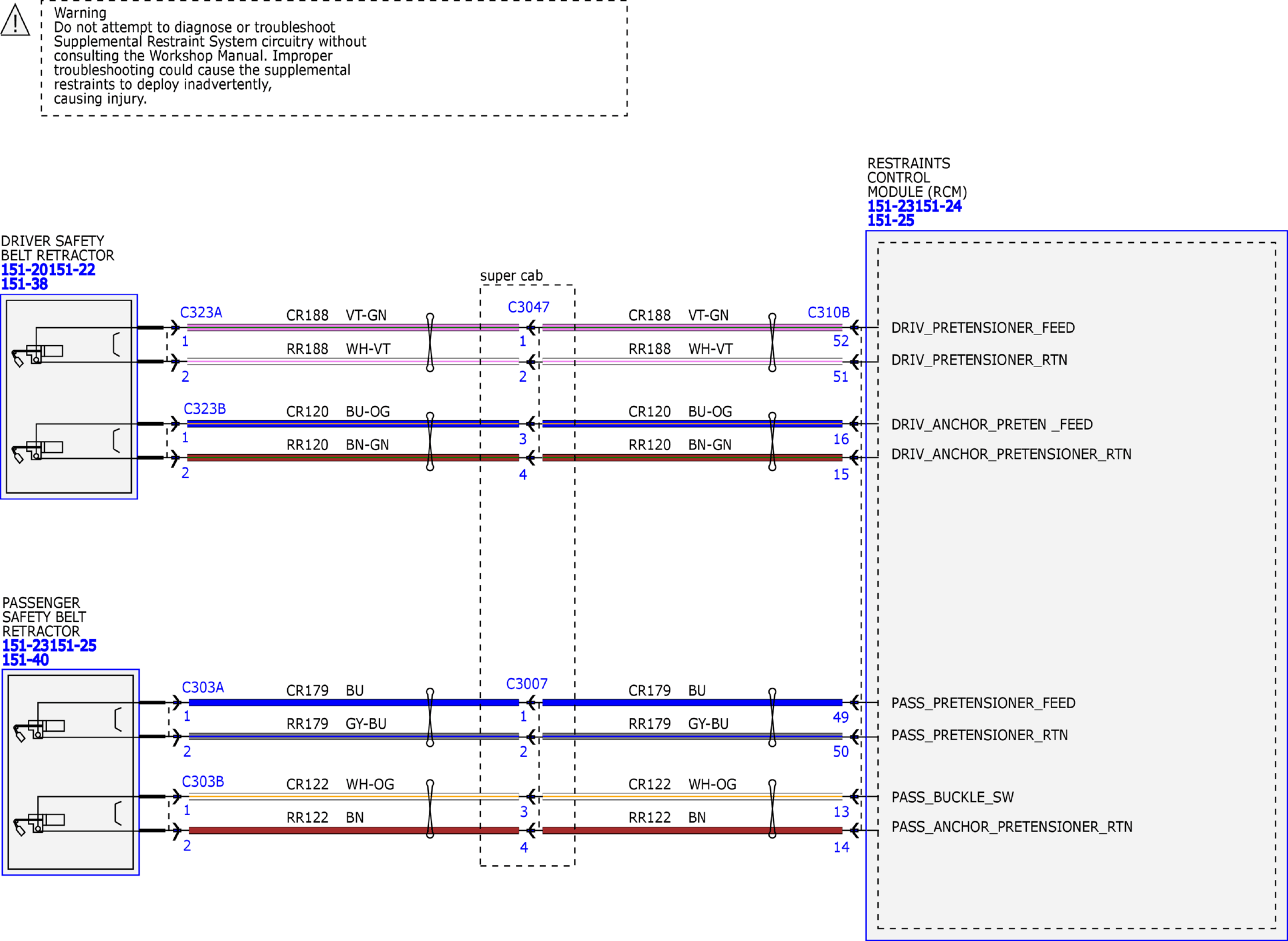

Fig 3: Supplemental Restraint System Wiring Diagrams (3 Of 8)

Courtesy of FORD MOTOR COMPANY

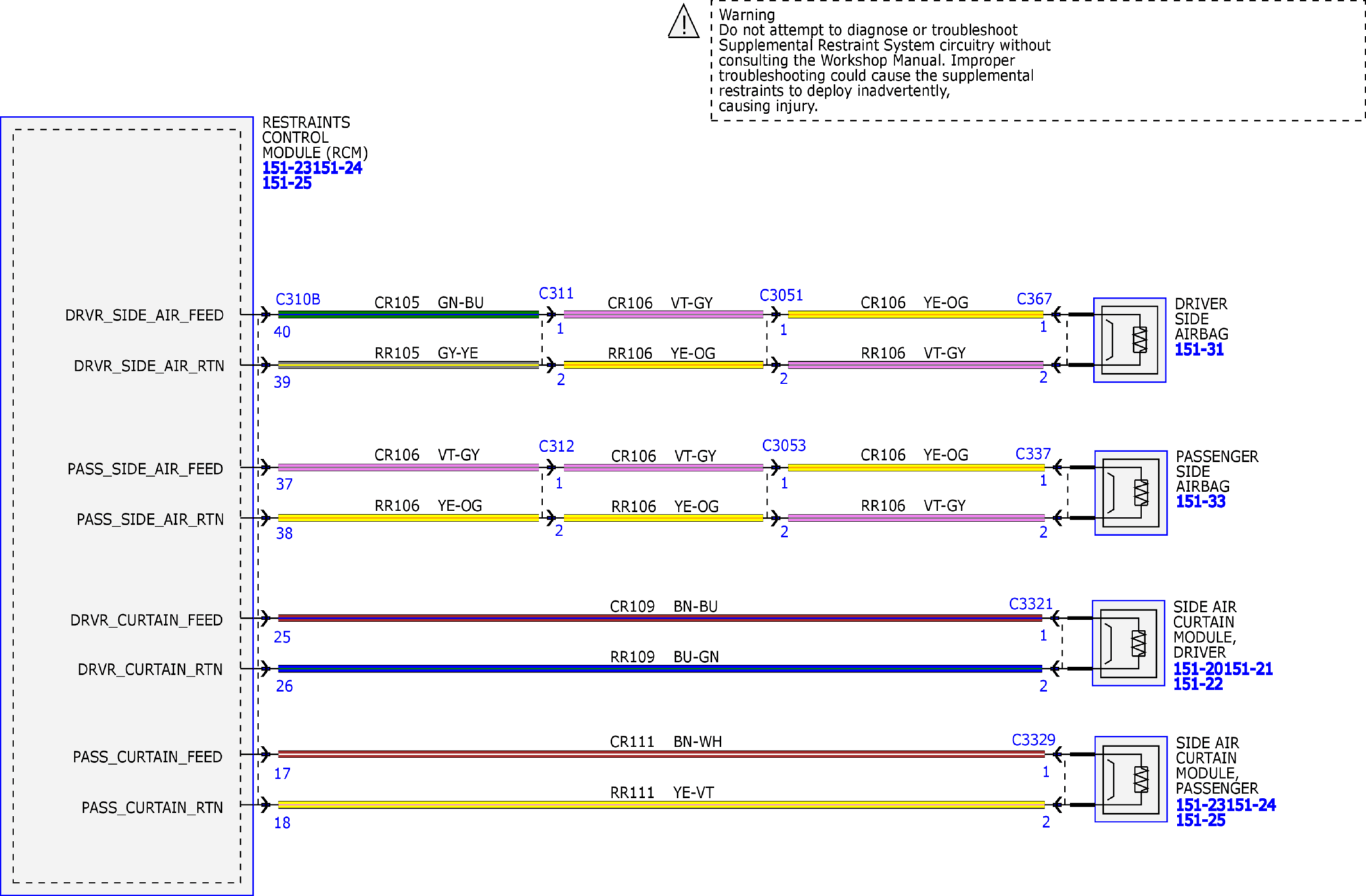

Fig 4: Supplemental Restraint System Wiring Diagrams (4 Of 8)

Courtesy of FORD MOTOR COMPANY

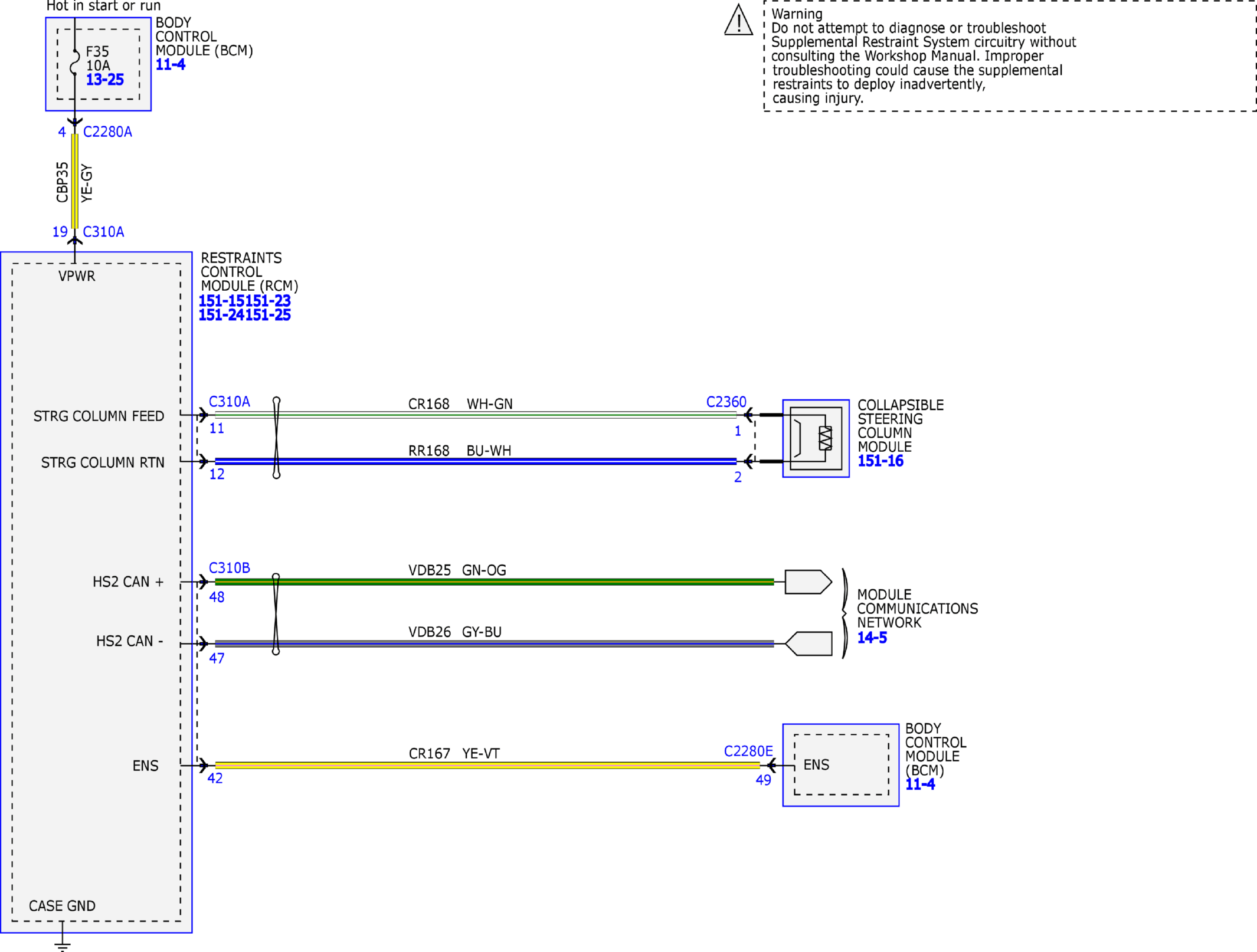

Fig 5: Supplemental Restraint System Wiring Diagrams (5 Of 8)

Courtesy of FORD MOTOR COMPANY

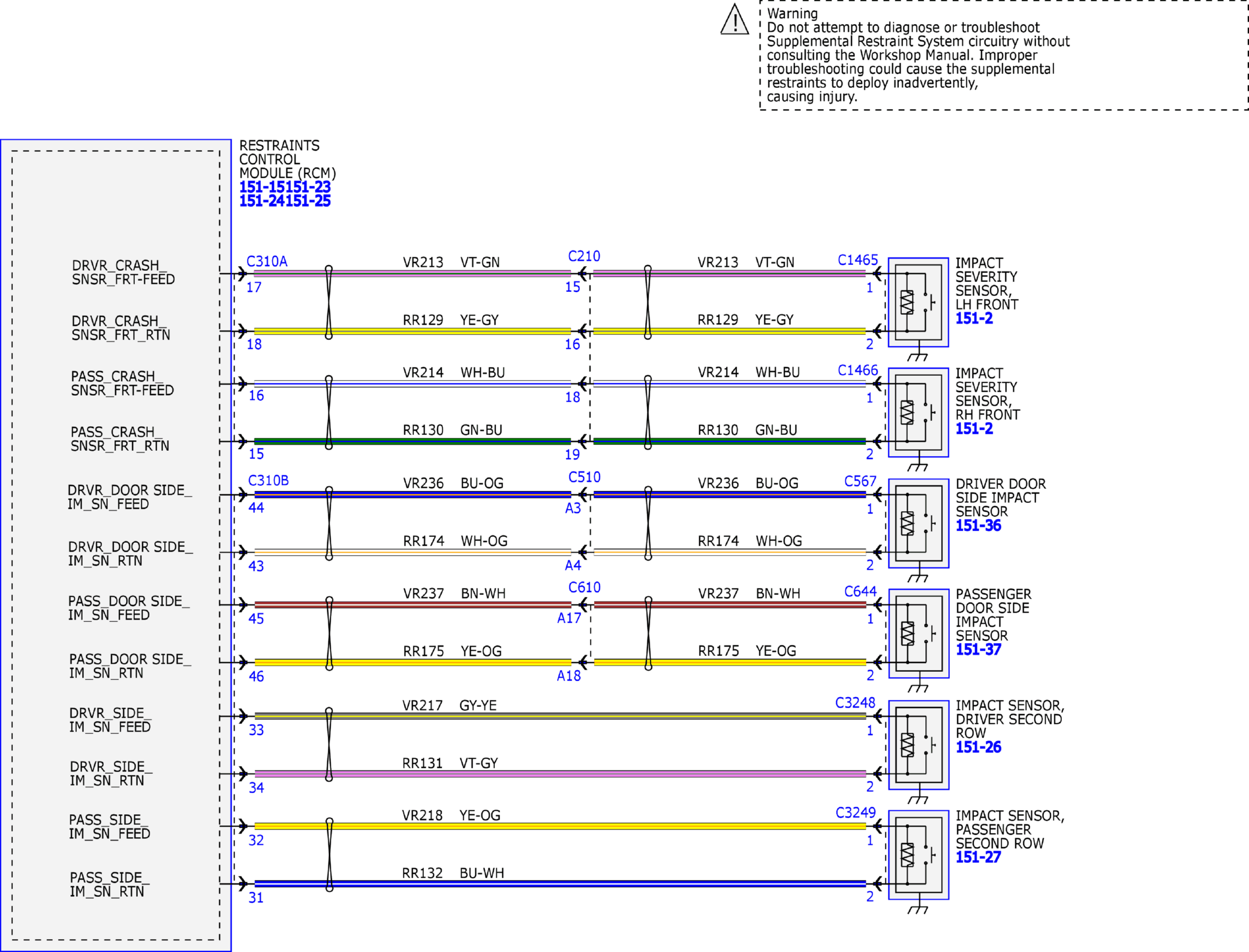

Fig 6: Supplemental Restraint System Wiring Diagrams (6 Of 8)

Courtesy of FORD MOTOR COMPANY

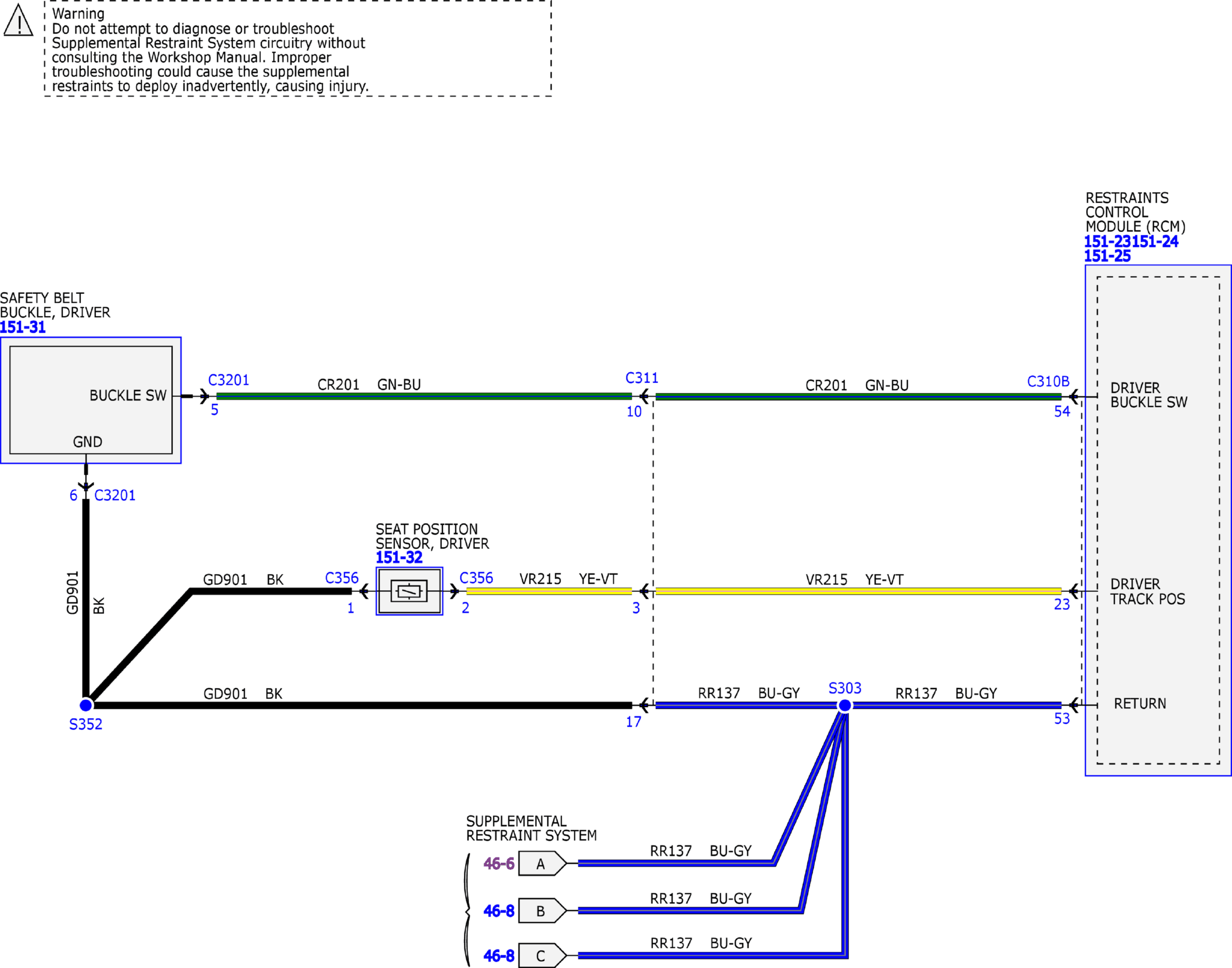

Fig 7: Supplemental Restraint System Wiring Diagrams (7 Of 8)

Courtesy of FORD MOTOR COMPANY

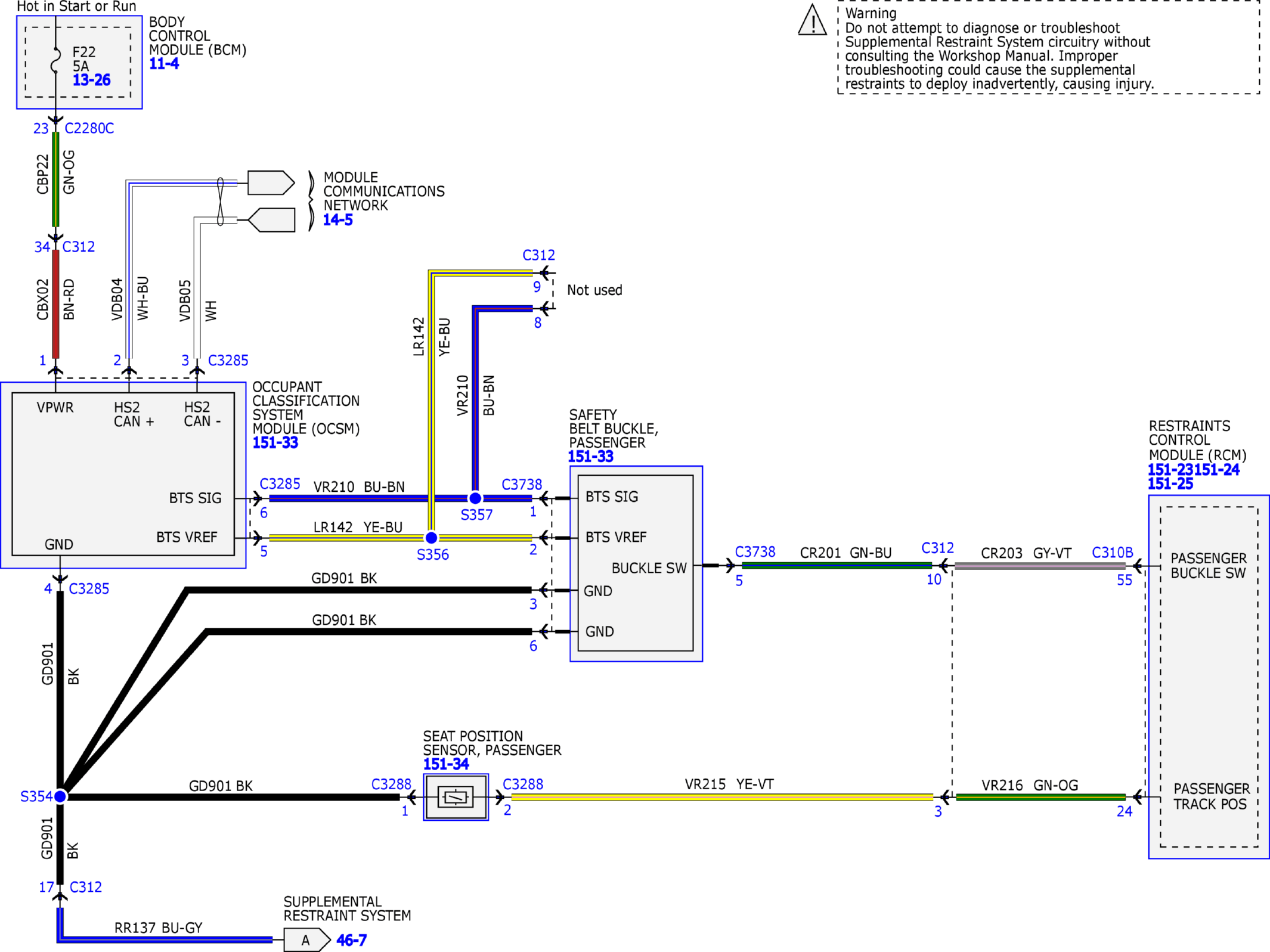

Fig 8: Supplemental Restraint System Wiring Diagrams (8 Of 8)

Courtesy of FORD MOTOR COMPANY
