Section 631 (OEM Wiring Diagrams)
>>
Shift Interlock
Shift Interlock
WARNING:
This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

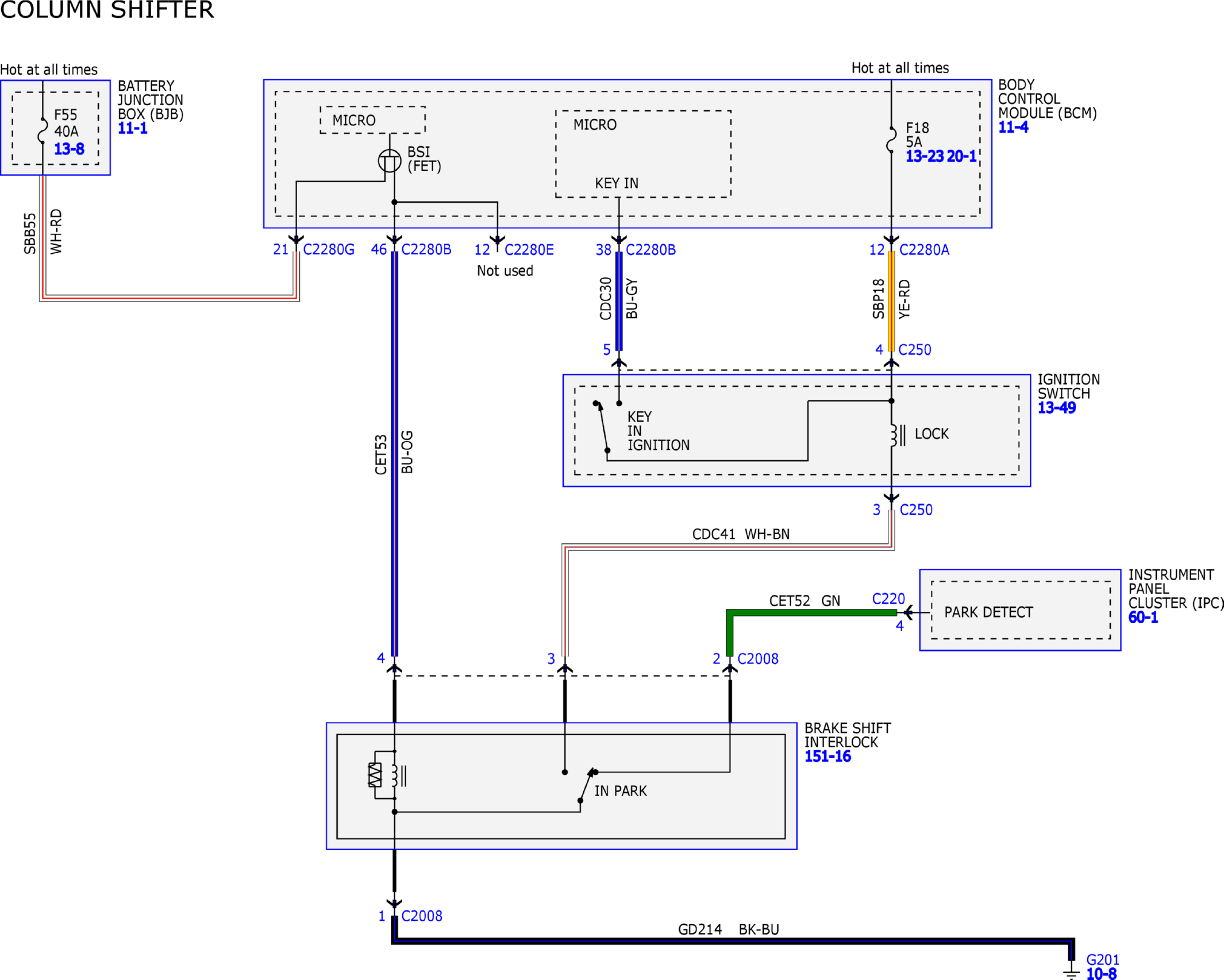

Fig 1: Shift Interlock System Wiring Diagrams (1 Of 2)
Courtesy of FORD MOTOR COMPANY

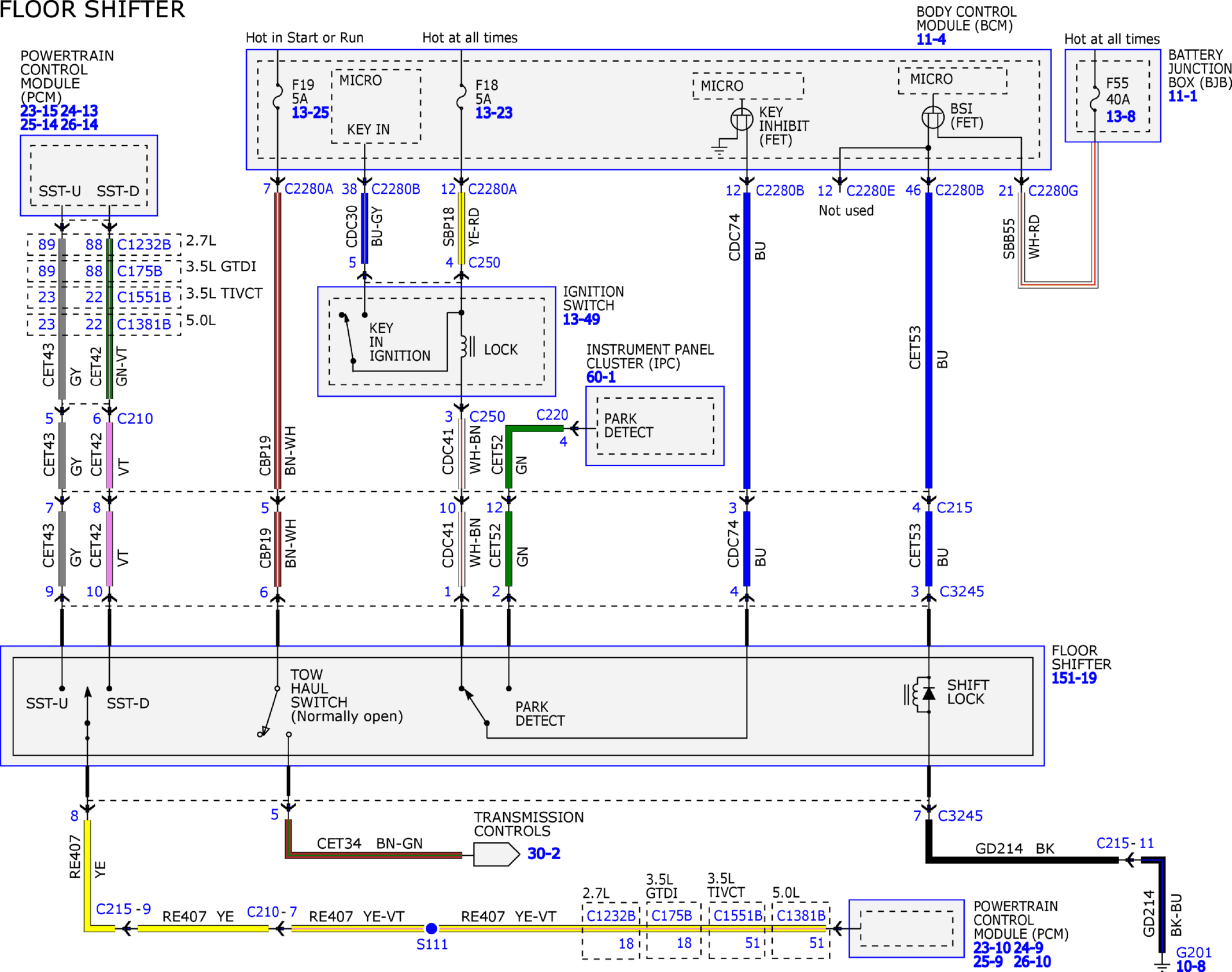

Fig 2: Shift Interlock System Wiring Diagrams (2 Of 2)
Courtesy of FORD MOTOR COMPANY
