Remote Keyless Entry And Alarm

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

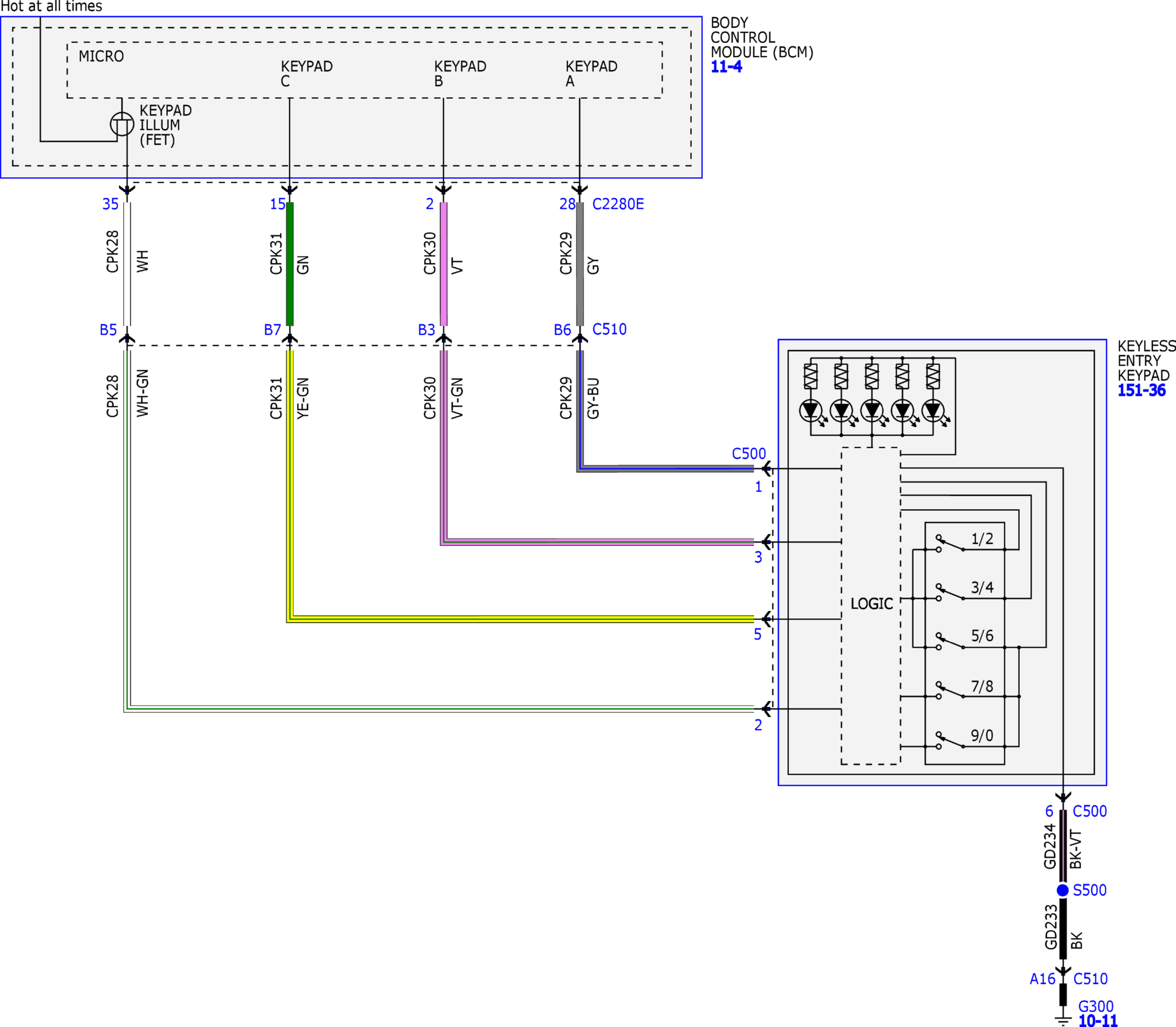

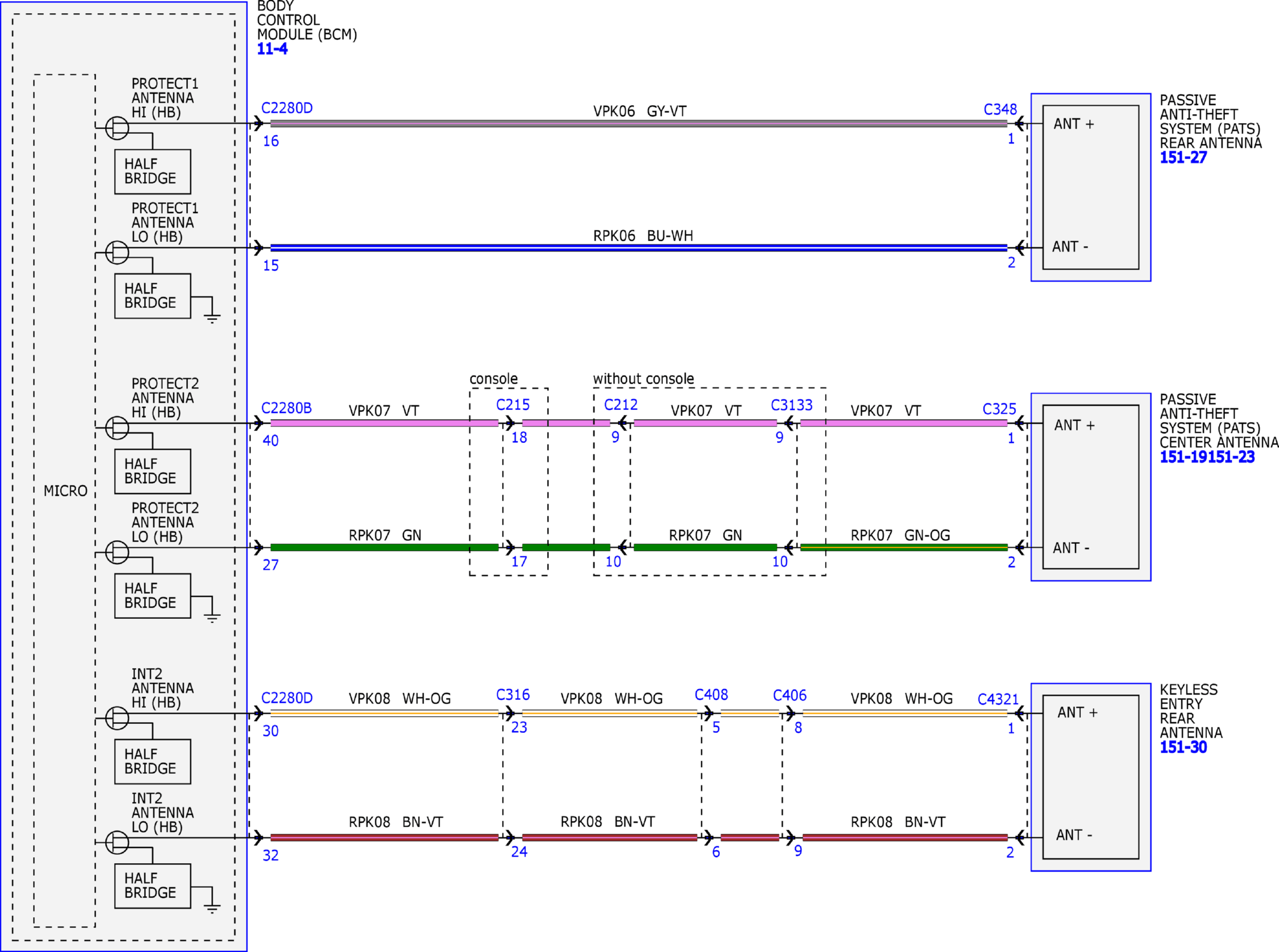

Fig 1: Remote Keyless Entry and Alarm System Wiring Diagrams (1 Of 9)

Courtesy of FORD MOTOR COMPANY

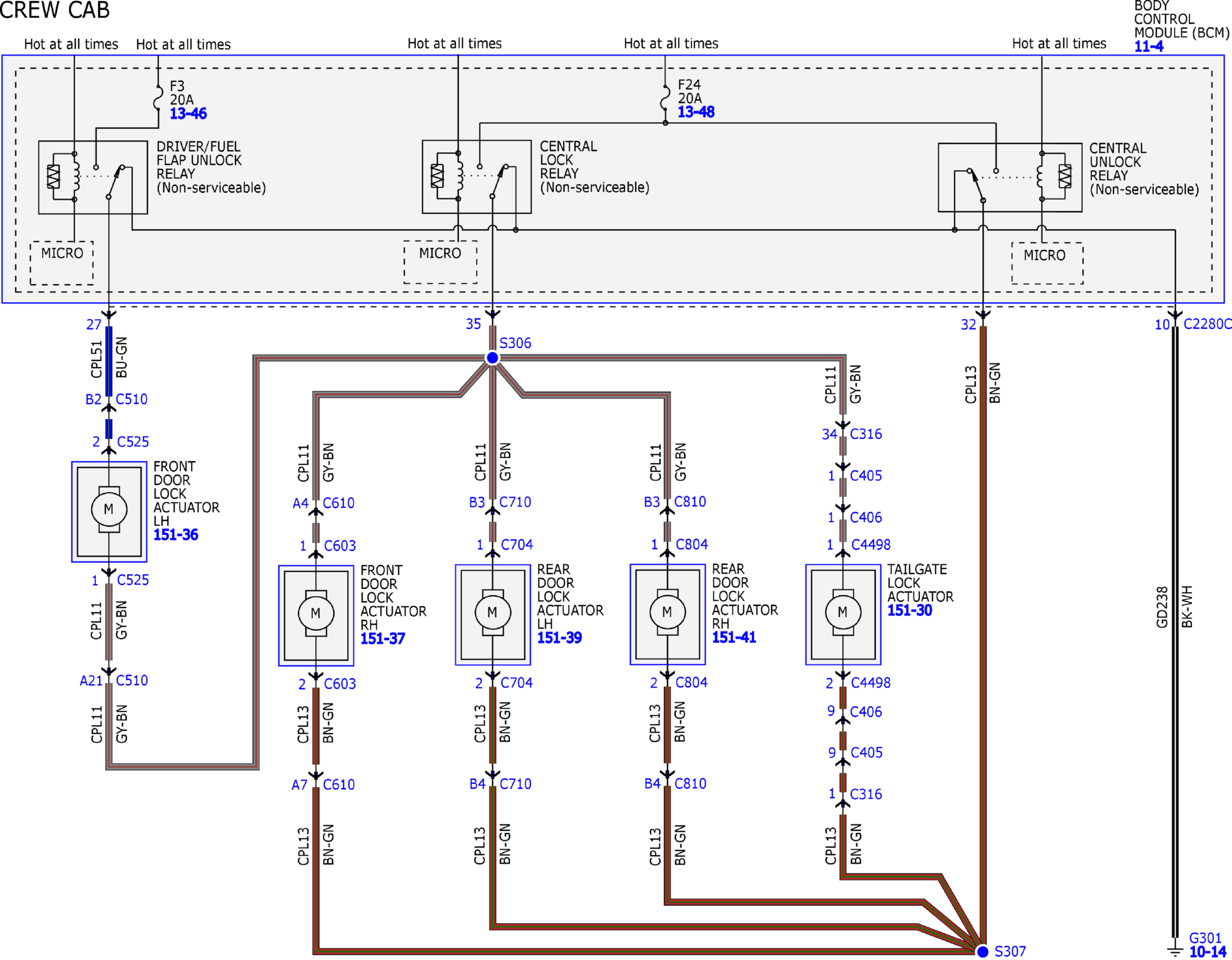

Fig 2: Remote Keyless Entry and Alarm System Wiring Diagrams (2 Of 9)

Courtesy of FORD MOTOR COMPANY

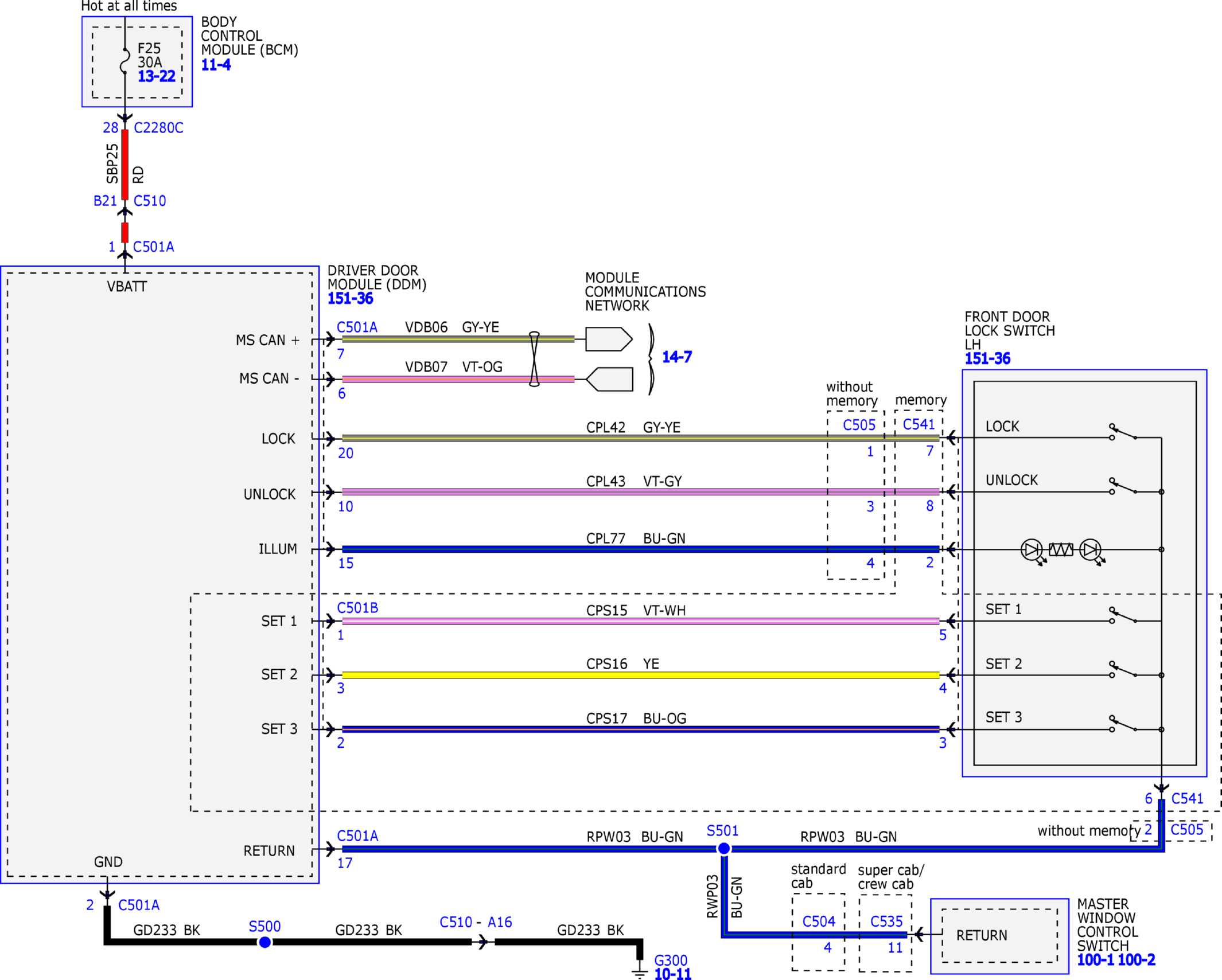

Fig 3: Remote Keyless Entry and Alarm System Wiring Diagrams (3 Of 9)

Courtesy of FORD MOTOR COMPANY

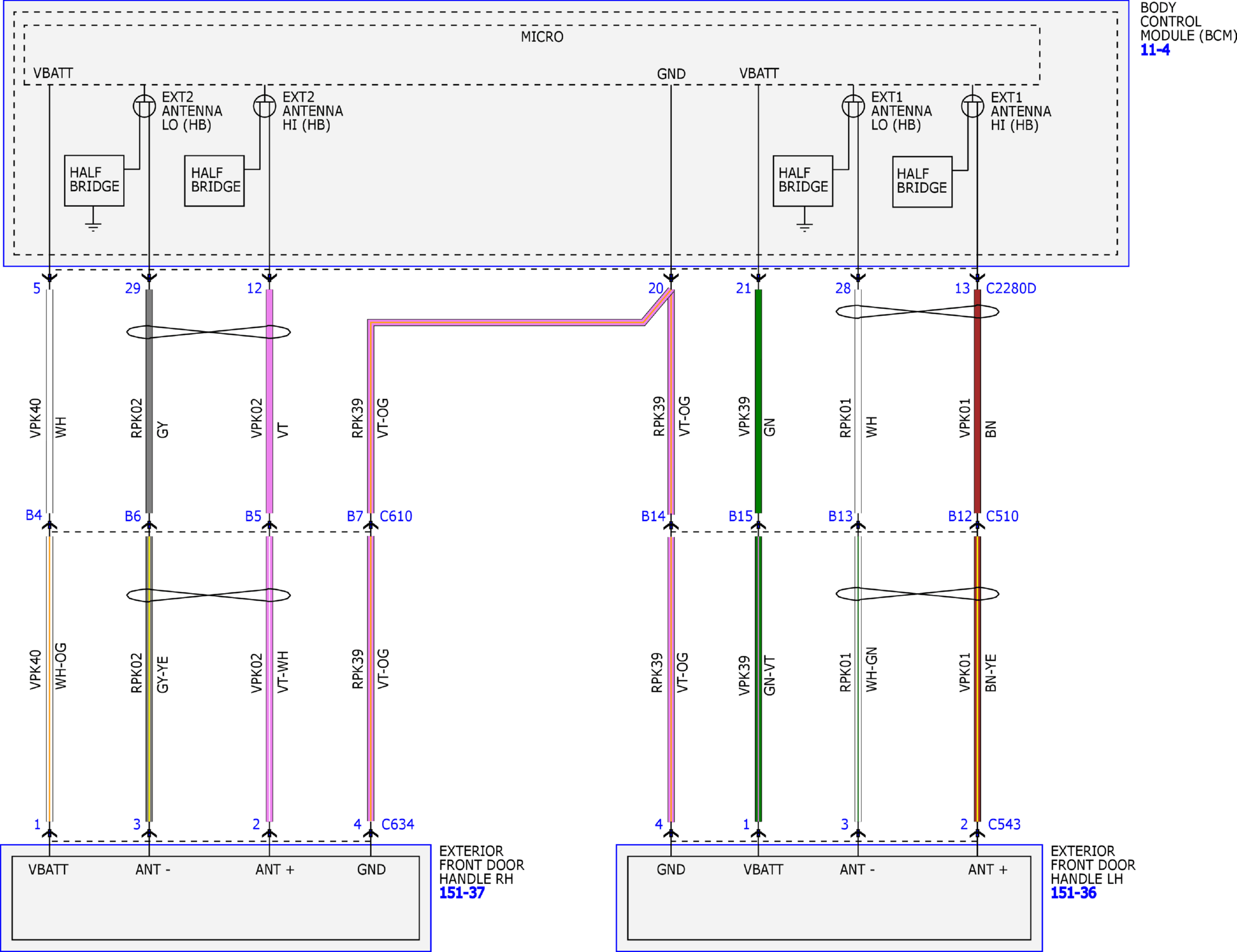

Fig 4: Remote Keyless Entry and Alarm System Wiring Diagrams (4 Of 9)

Courtesy of FORD MOTOR COMPANY

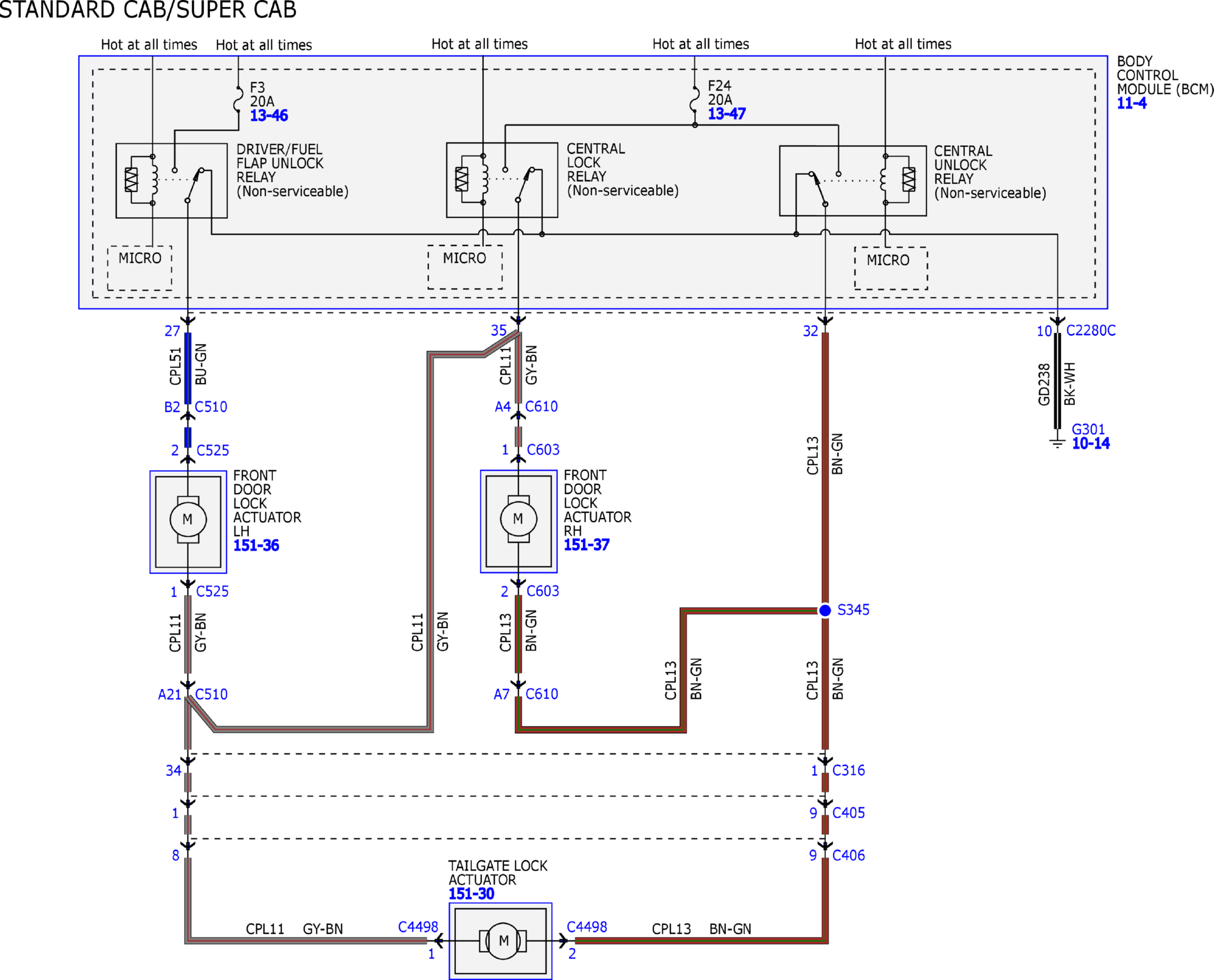

Fig 5: Remote Keyless Entry and Alarm System Wiring Diagrams (5 Of 9)

Courtesy of FORD MOTOR COMPANY

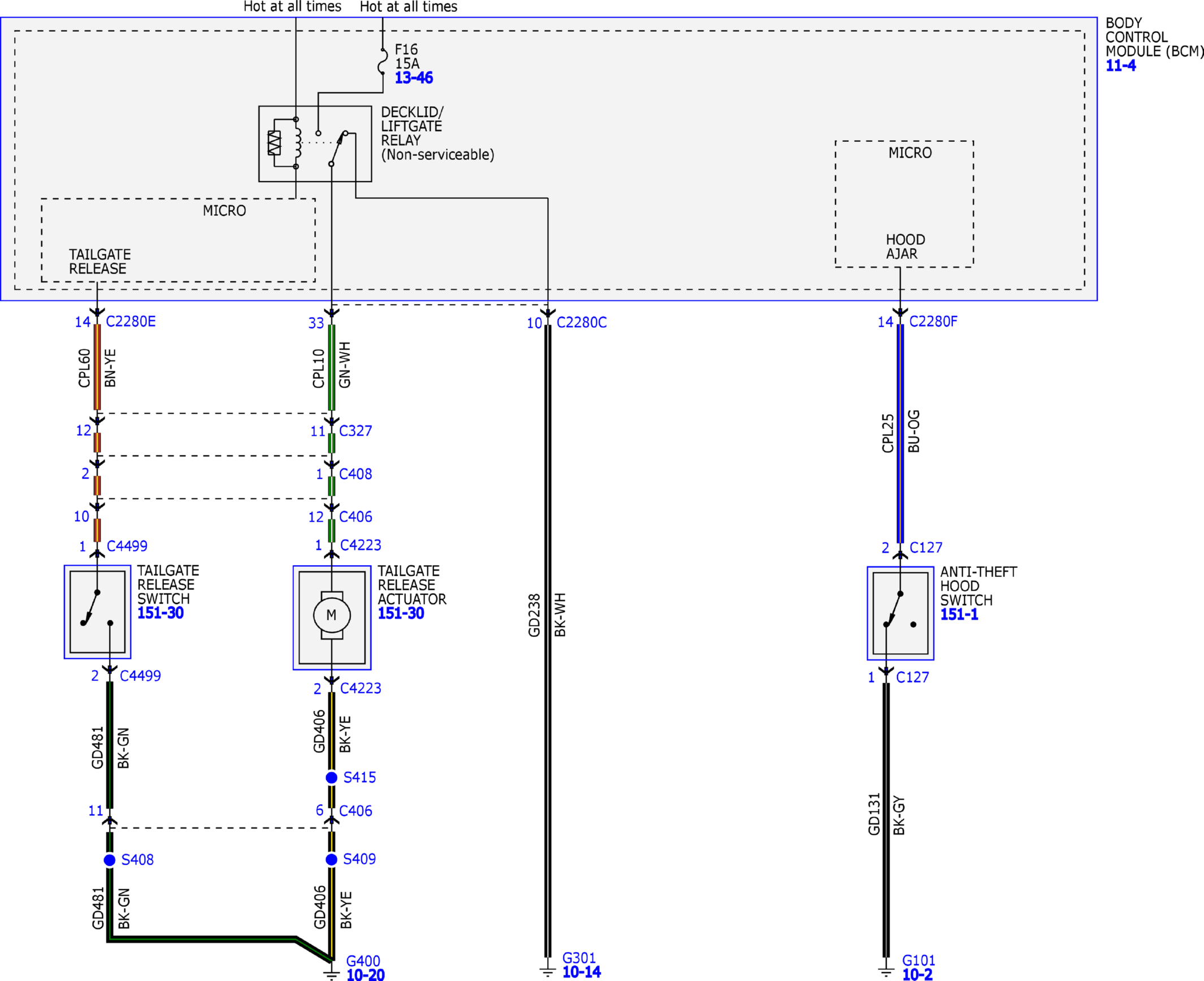

Fig 6: Remote Keyless Entry and Alarm System Wiring Diagrams (6 Of 9)

Courtesy of FORD MOTOR COMPANY

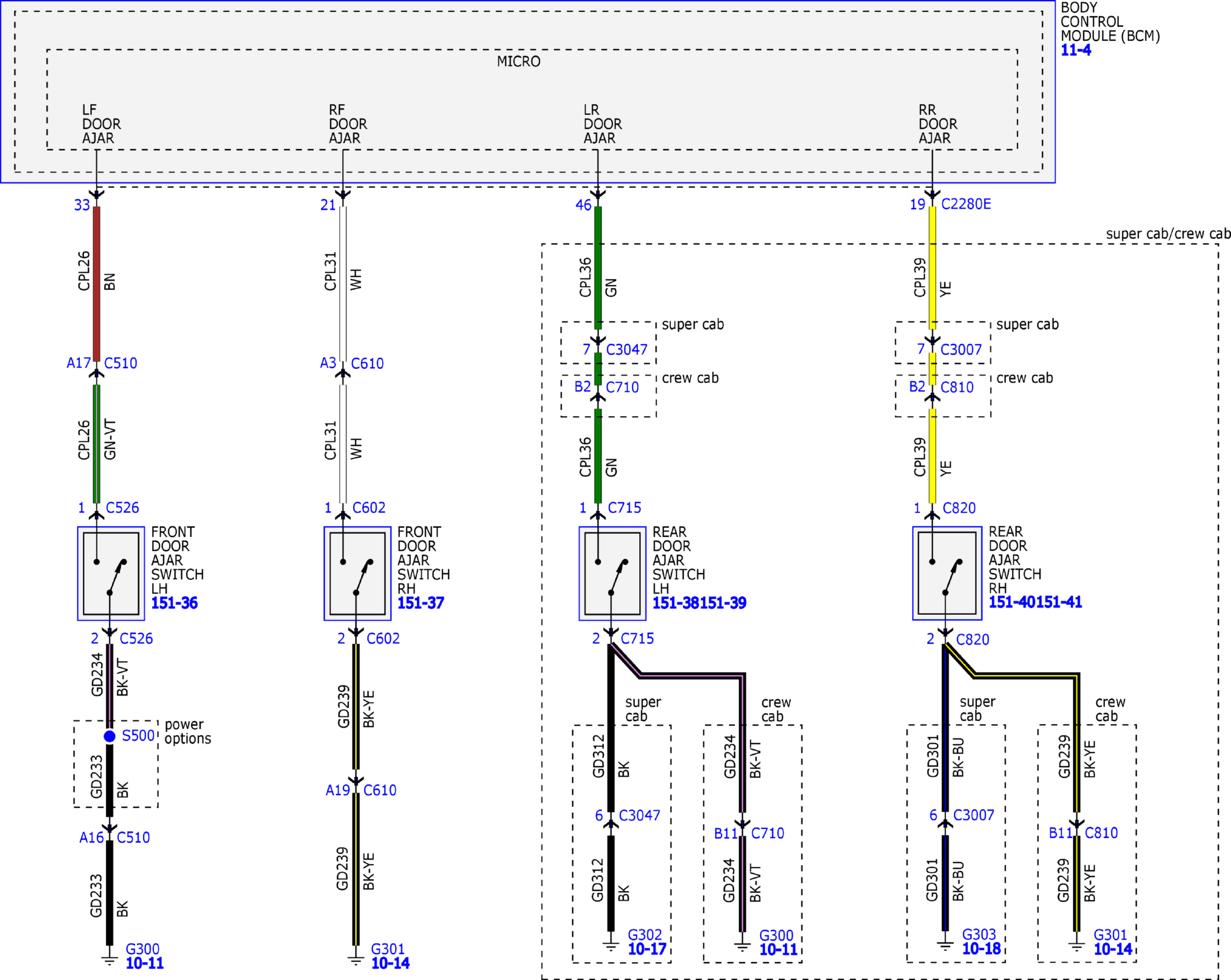

Fig 7: Remote Keyless Entry and Alarm System Wiring Diagrams (7 Of 9)

Courtesy of FORD MOTOR COMPANY

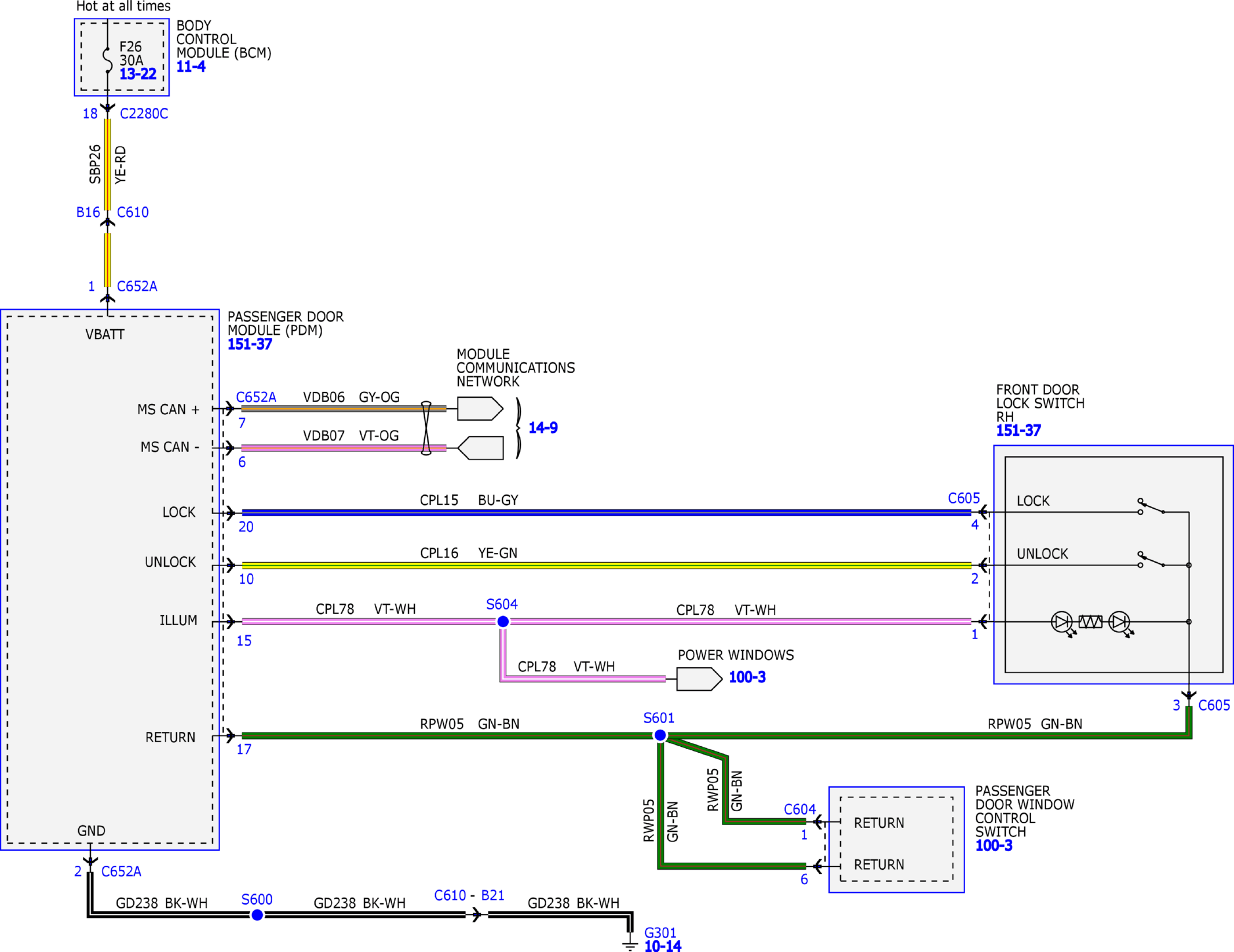

Fig 8: Remote Keyless Entry and Alarm System Wiring Diagrams (8 Of 9)

Courtesy of FORD MOTOR COMPANY

Fig 9: Remote Keyless Entry and Alarm System Wiring Diagrams (9 Of 9)

Courtesy of FORD MOTOR COMPANY
