Power Windows

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

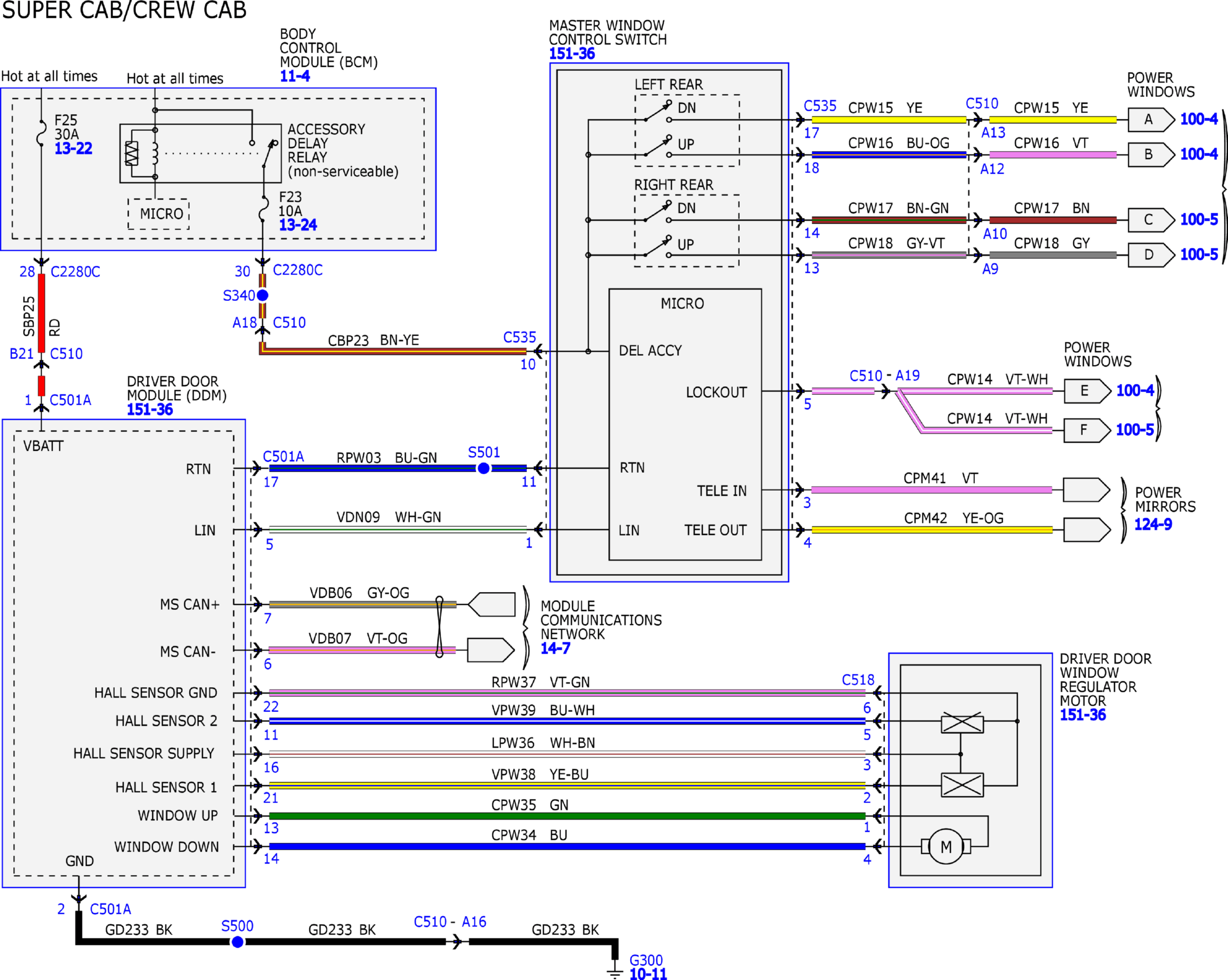

Fig 1: Power Windows System Wiring Diagrams (1 Of 6)

Courtesy of FORD MOTOR COMPANY

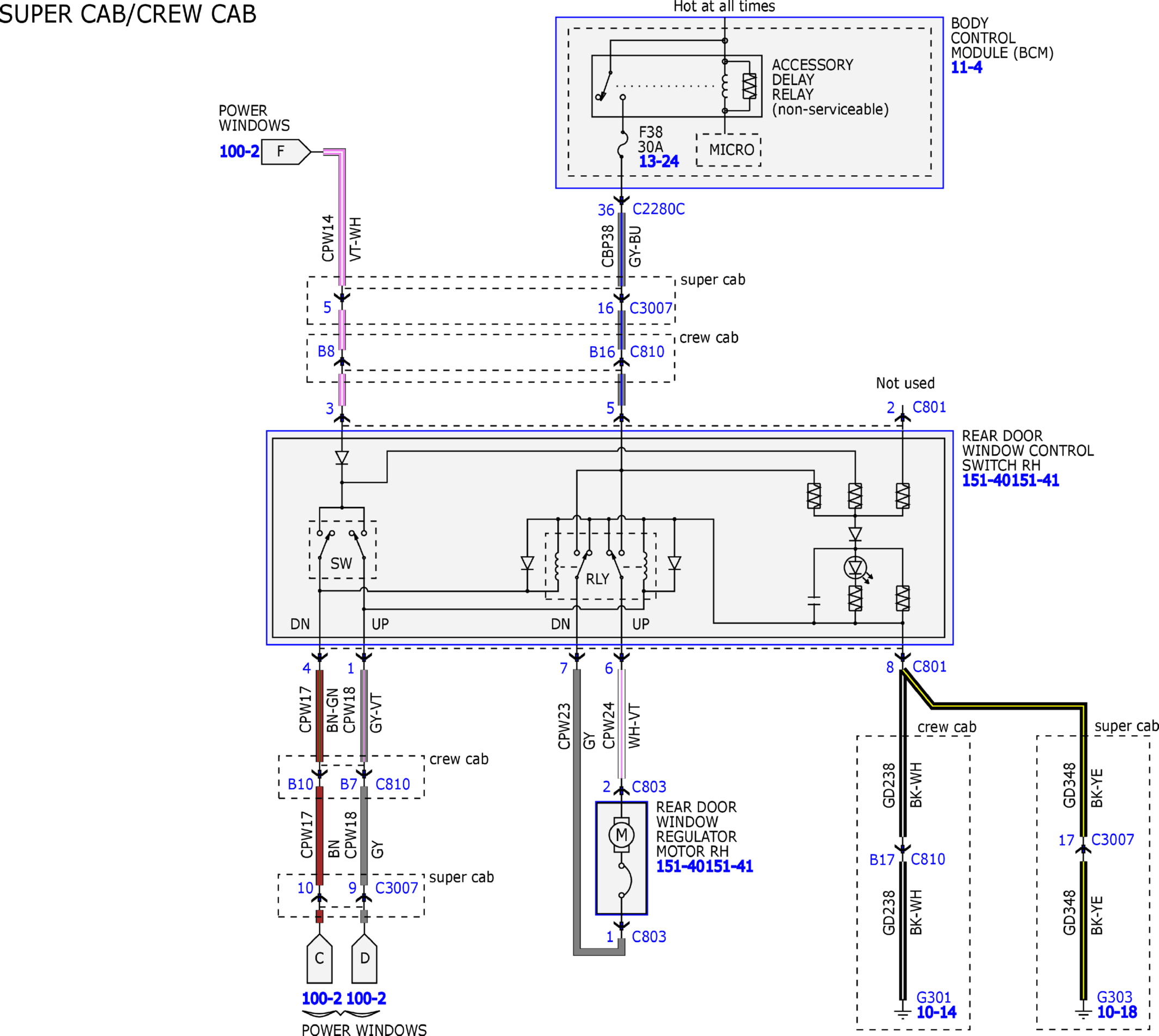

Fig 2: Power Windows System Wiring Diagrams (2 Of 6)

Courtesy of FORD MOTOR COMPANY

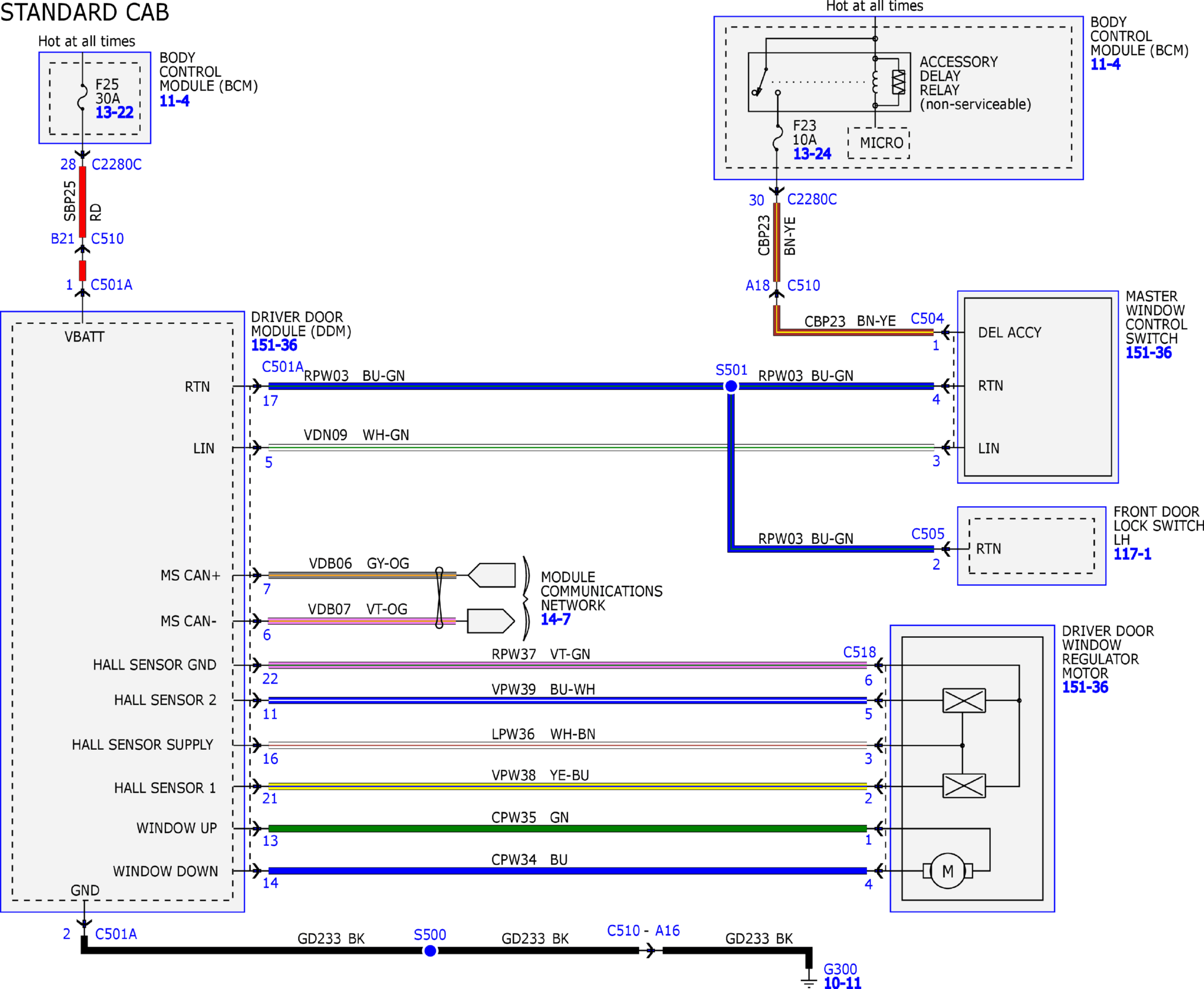

Fig 3: Power Windows System Wiring Diagrams (3 Of 6)

Courtesy of FORD MOTOR COMPANY

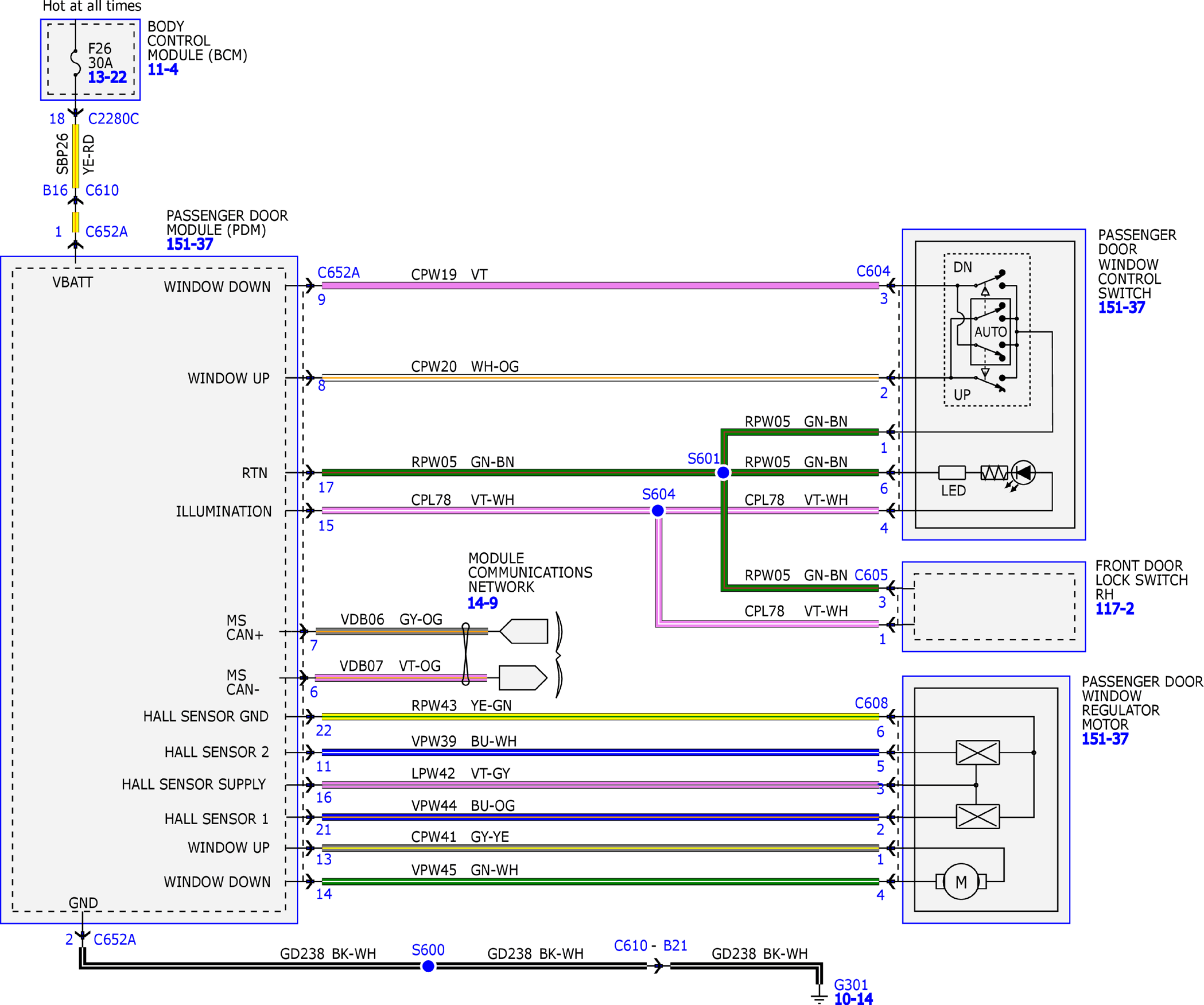

Fig 4: Power Windows System Wiring Diagrams (4 Of 6)

Courtesy of FORD MOTOR COMPANY

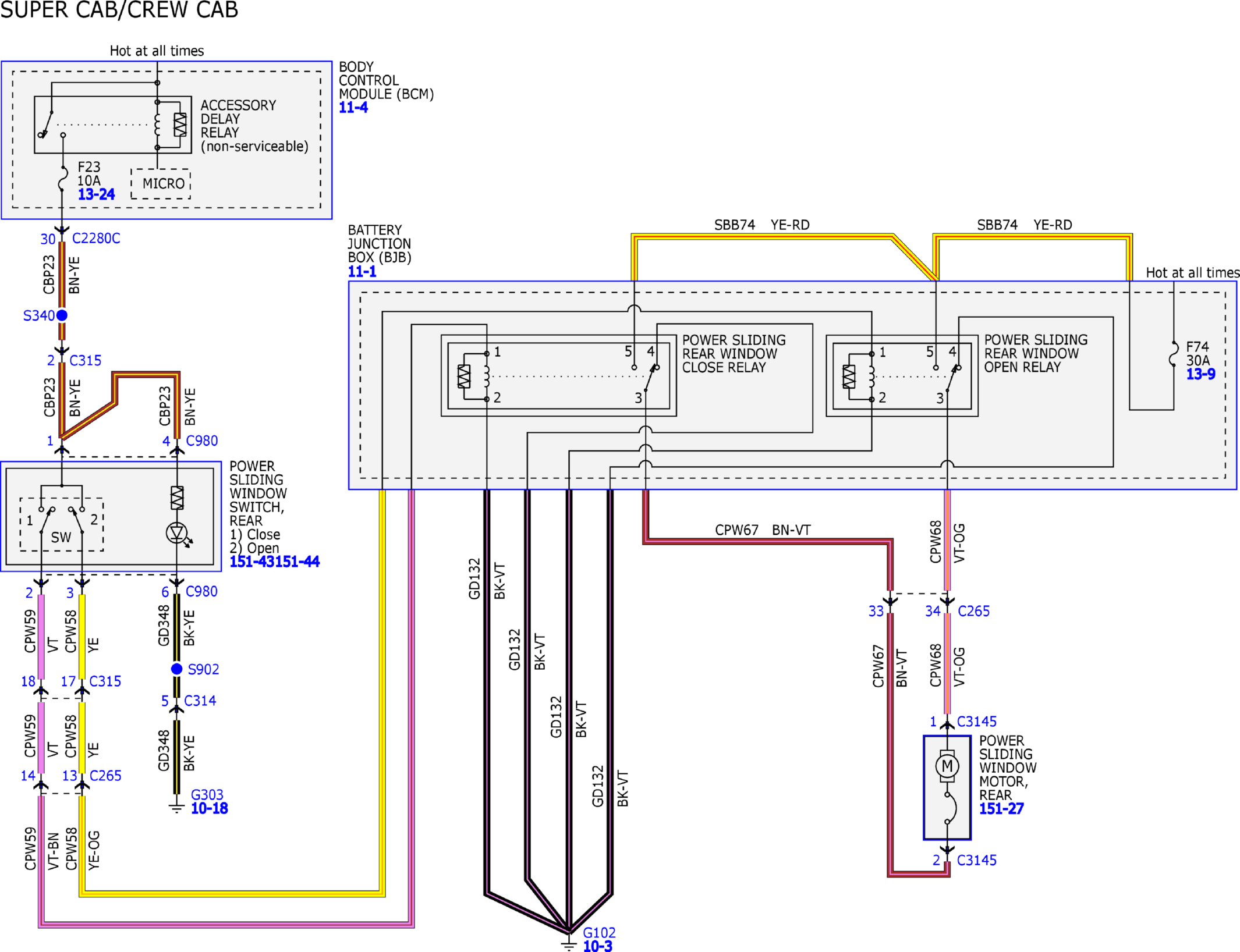

Fig 5: Power Windows System Wiring Diagrams (5 Of 6)

Courtesy of FORD MOTOR COMPANY

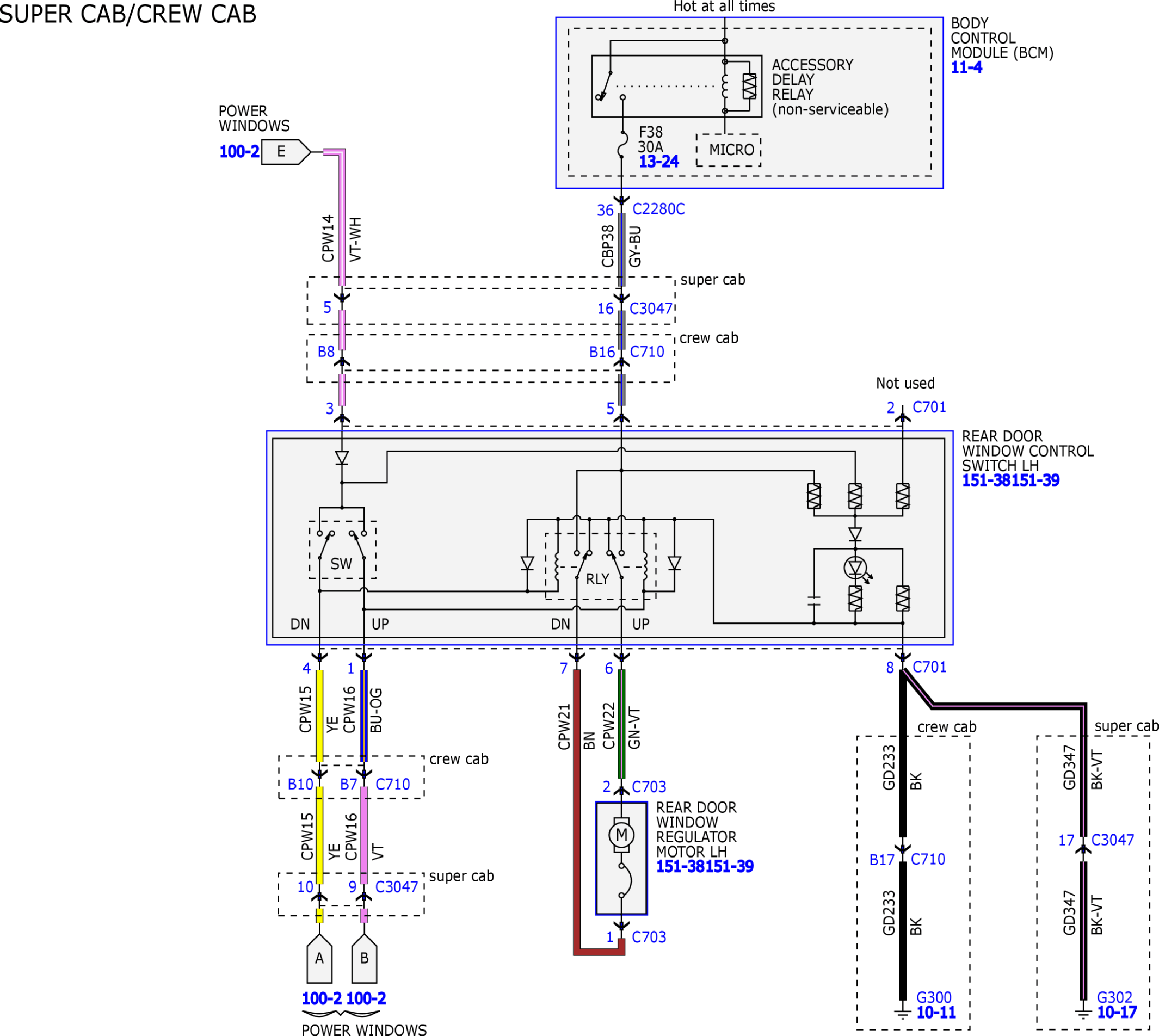

Fig 6: Power Windows System Wiring Diagrams (6 Of 6)

Courtesy of FORD MOTOR COMPANY
