Section 631 (OEM Wiring Diagrams)
>>
Instrument Cluster
Instrument Cluster
WARNING:
This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

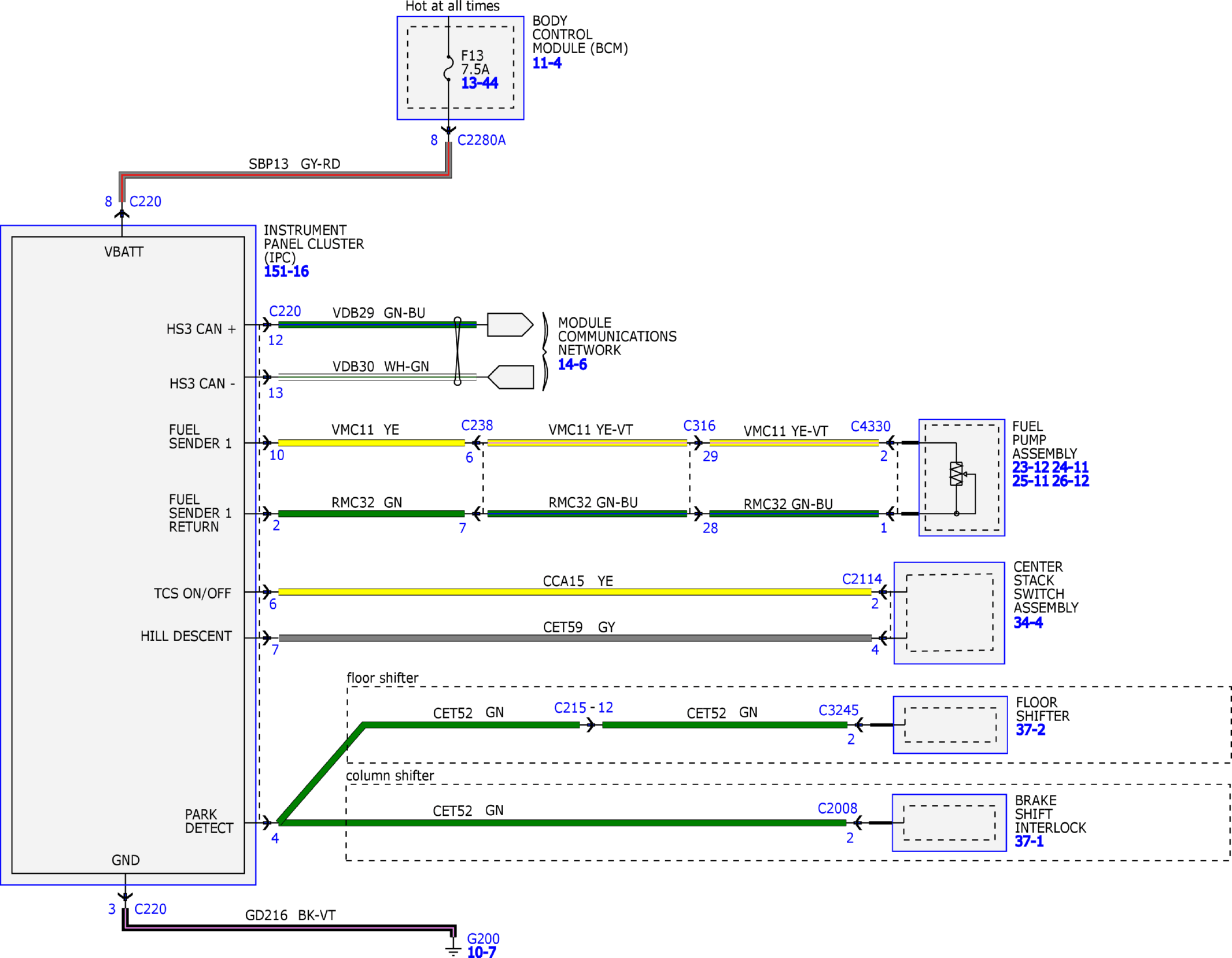

Fig 1: Instrument Cluster System Wiring Diagrams (1 Of 2)
Courtesy of FORD MOTOR COMPANY

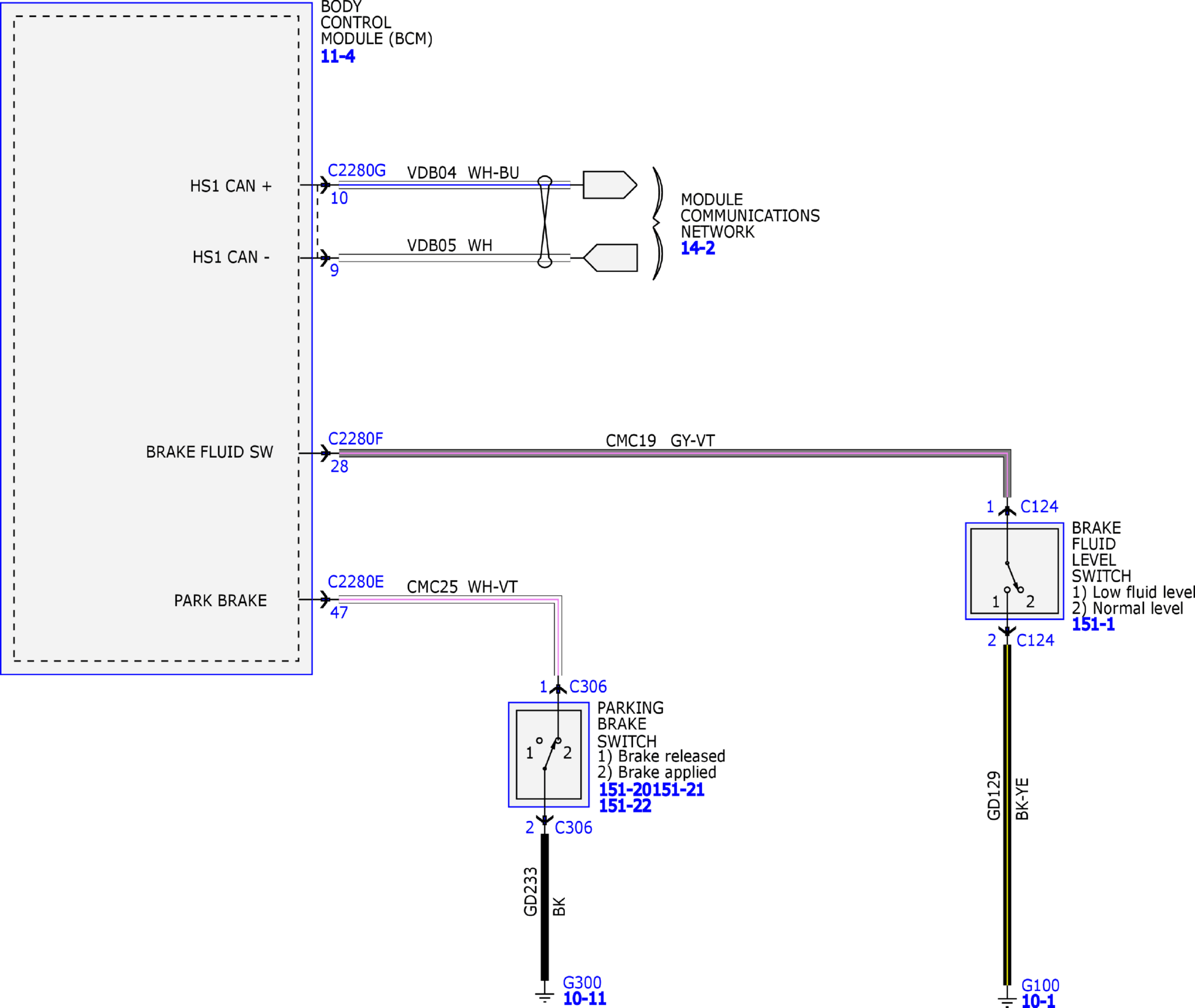

Fig 2: Instrument Cluster System Wiring Diagrams (2 Of 2)
Courtesy of FORD MOTOR COMPANY
