Section 631 (OEM Wiring Diagrams): Headlamps/AUTOLAMPS

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

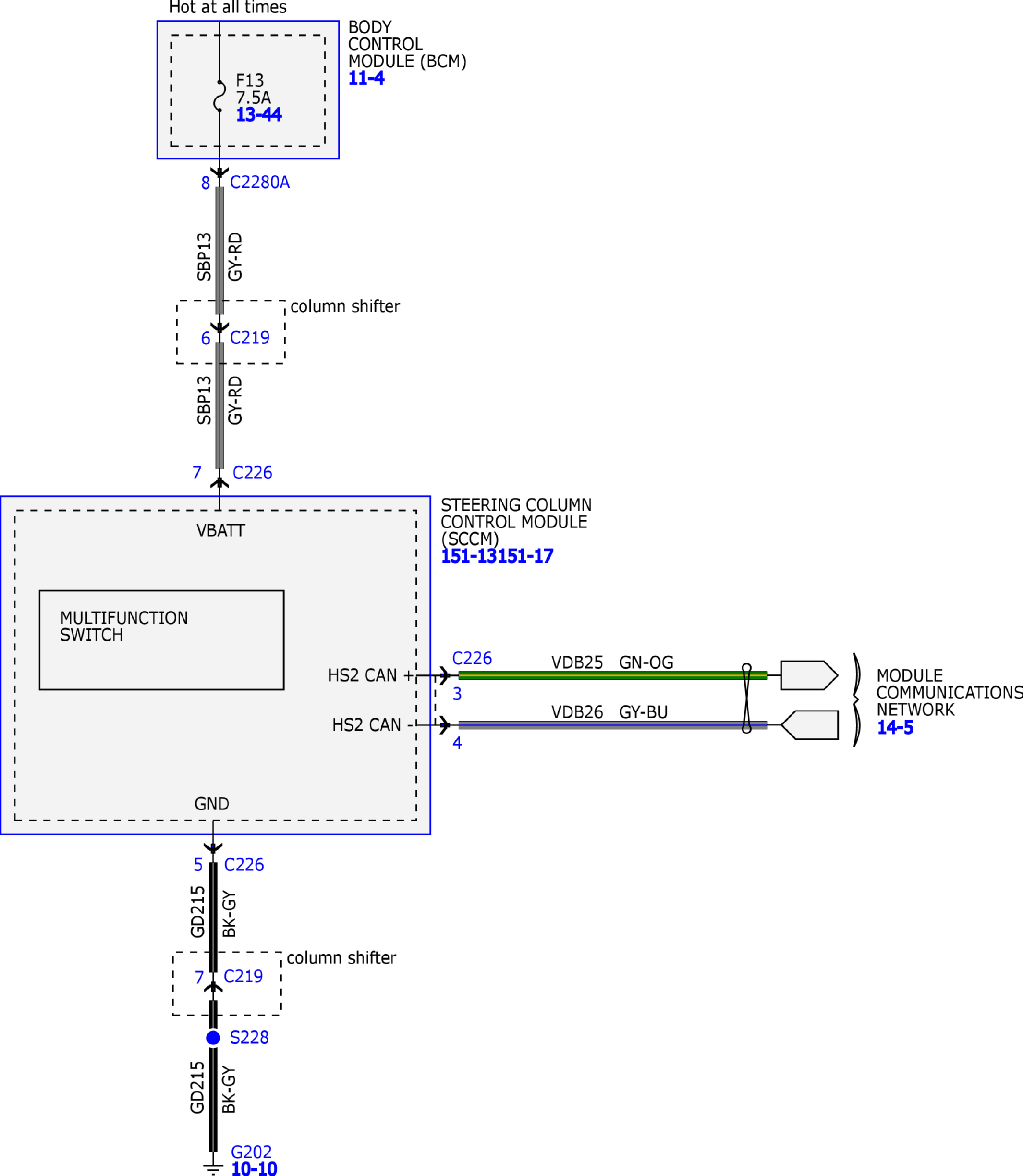

Fig 1: Headlamps/Autolamps System Wiring Diagrams (1 Of 6)

Courtesy of FORD MOTOR COMPANY

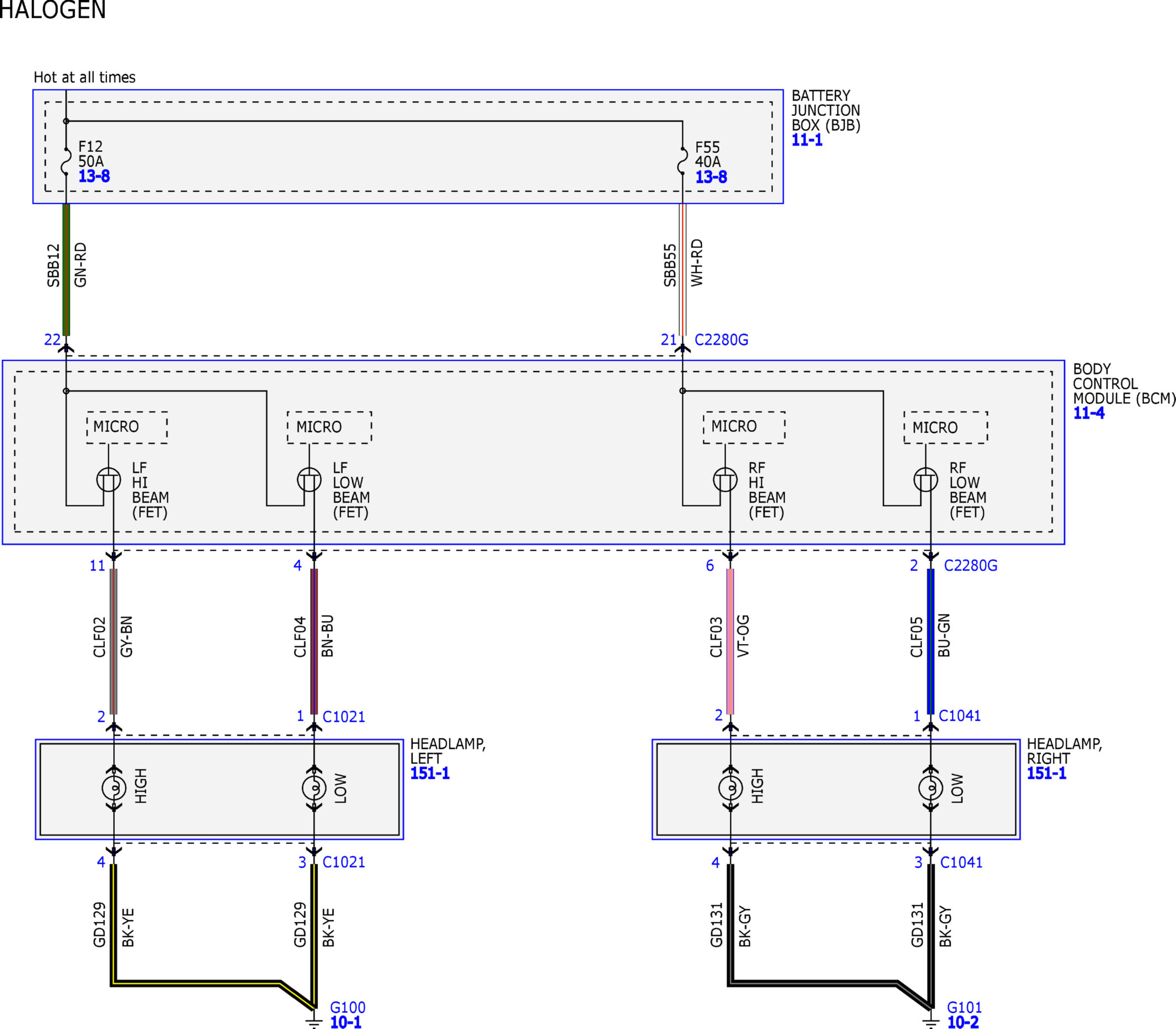

Fig 2: Headlamps/Autolamps System Wiring Diagrams (2 Of 6)

Courtesy of FORD MOTOR COMPANY

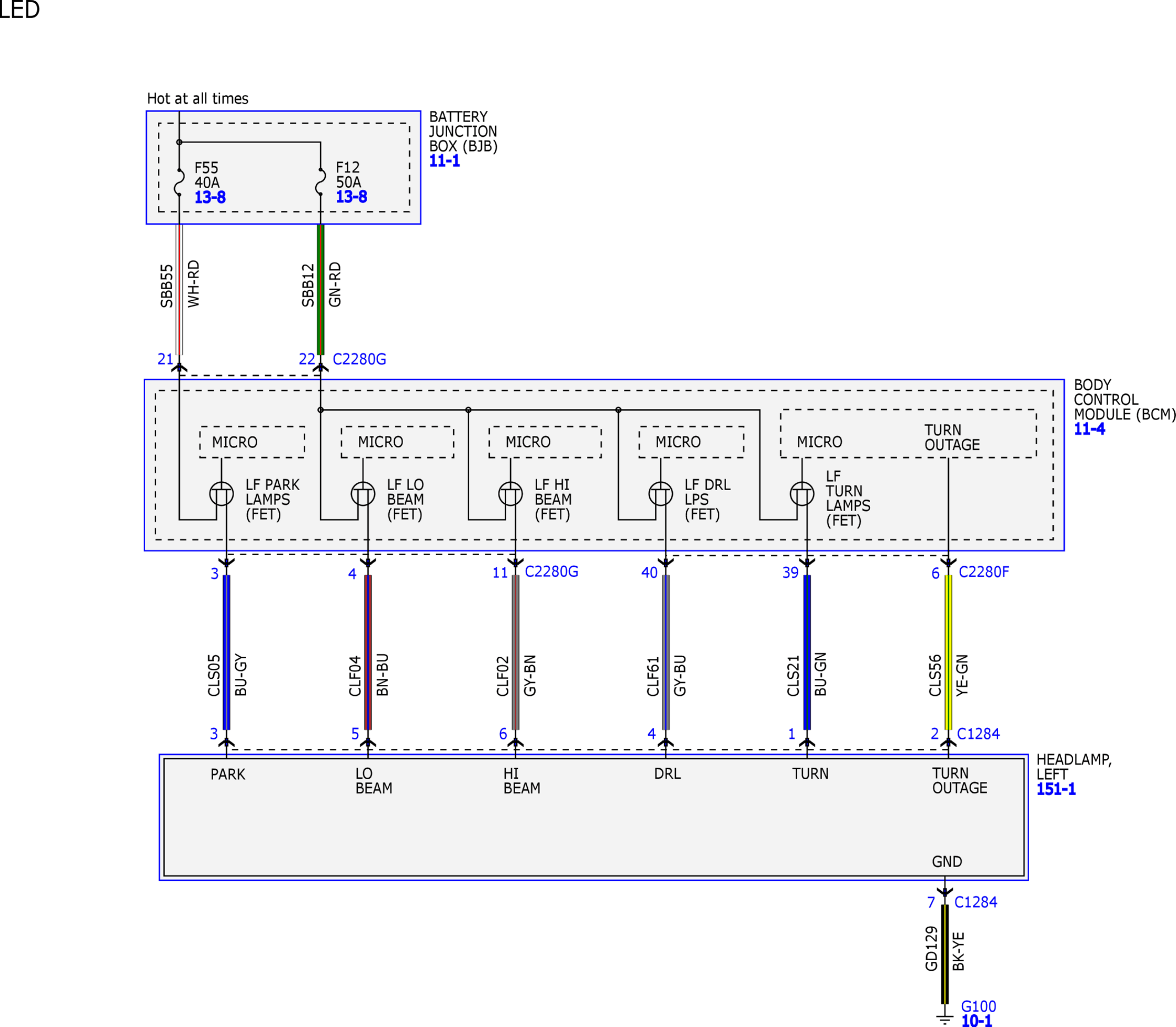

Fig 3: Headlamps/Autolamps System Wiring Diagrams (3 Of 6)

Courtesy of FORD MOTOR COMPANY

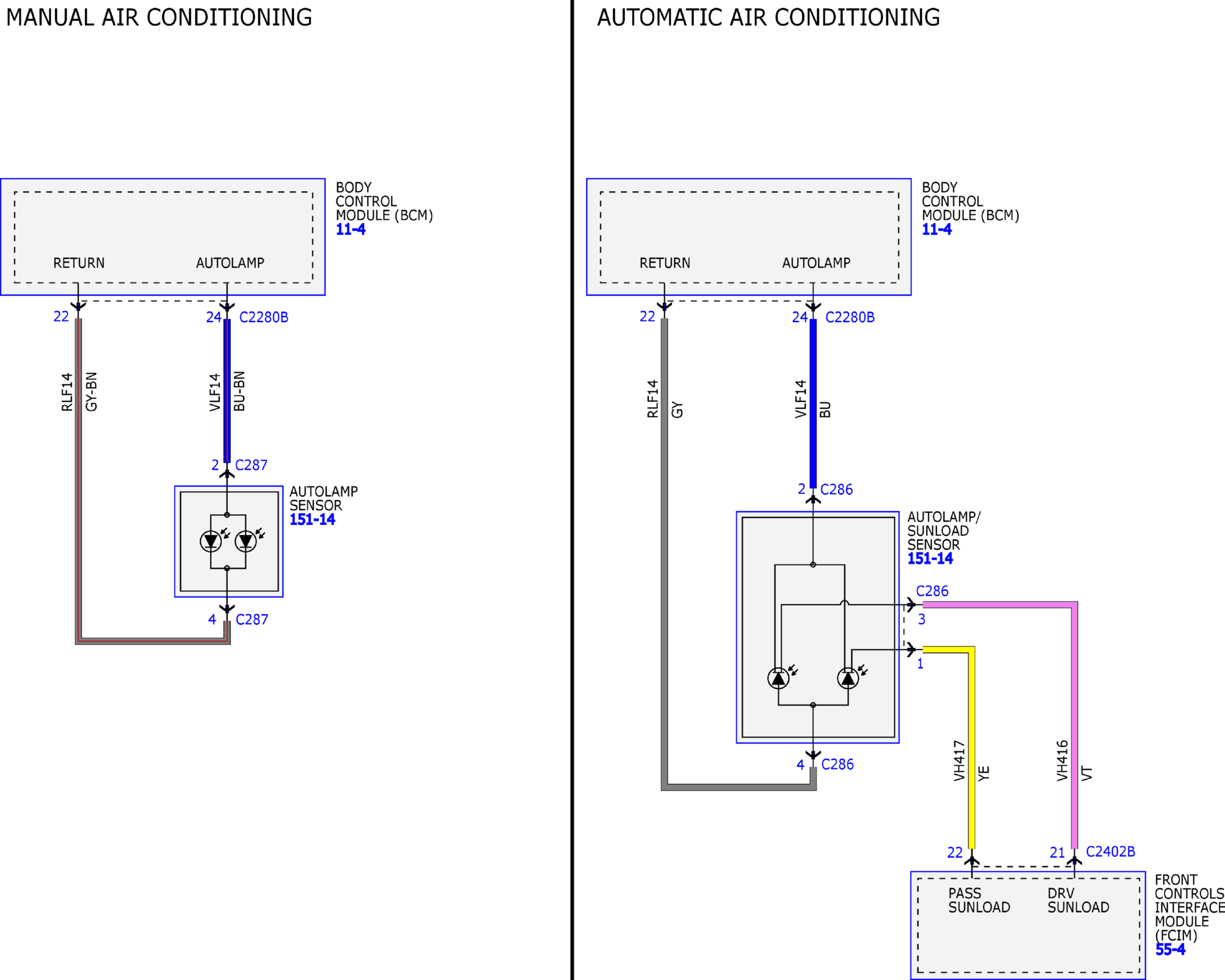

Fig 4: Headlamps/Autolamps System Wiring Diagrams (4 Of 6)

Courtesy of FORD MOTOR COMPANY

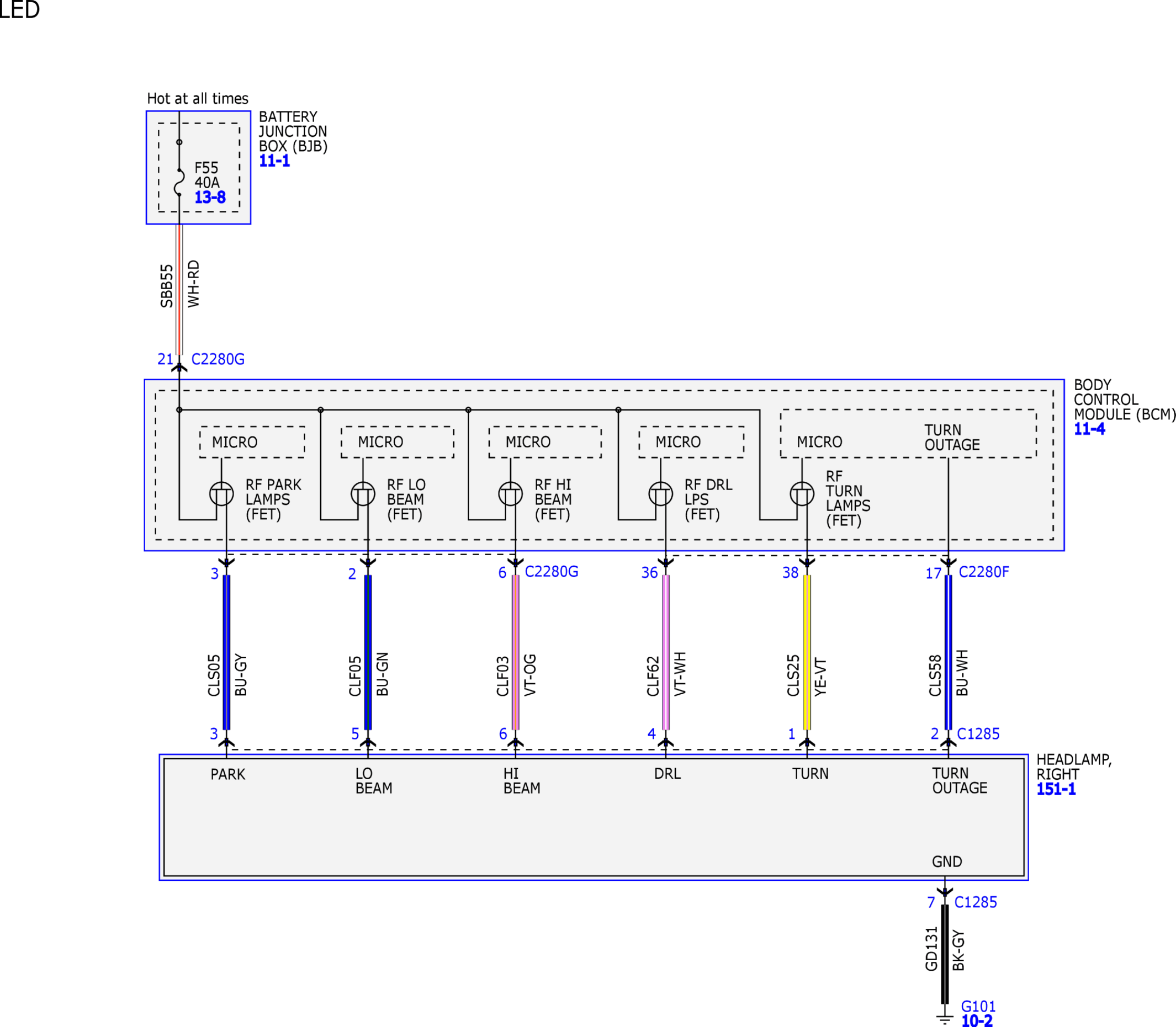

Fig 5: Headlamps/Autolamps System Wiring Diagrams (5 Of 6)

Courtesy of FORD MOTOR COMPANY

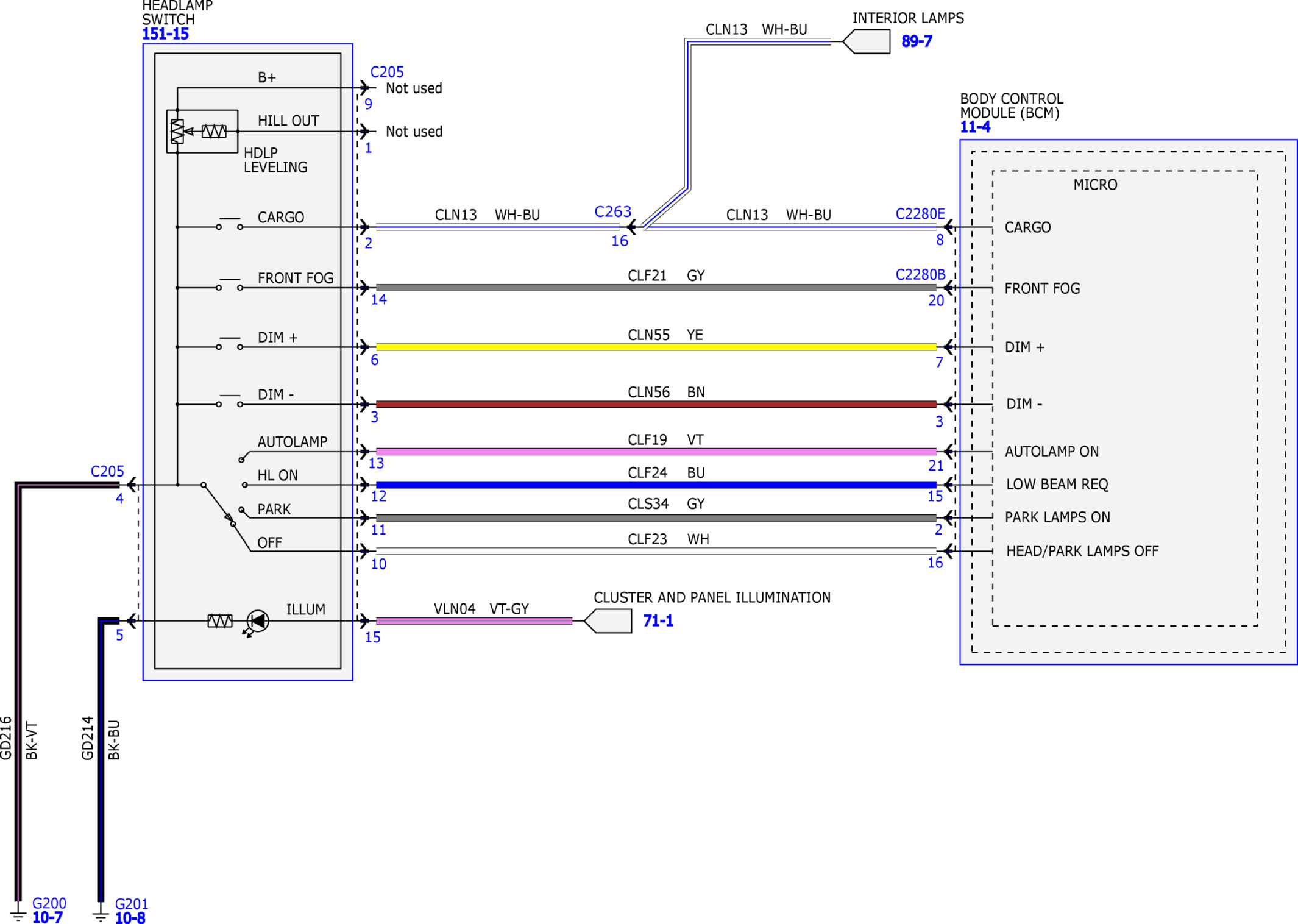

Fig 6: Headlamps/Autolamps System Wiring Diagrams (6 Of 6)

Courtesy of FORD MOTOR COMPANY
