Section 631 (OEM Wiring Diagrams)
>>
Customer Access
Customer Access
WARNING:
This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

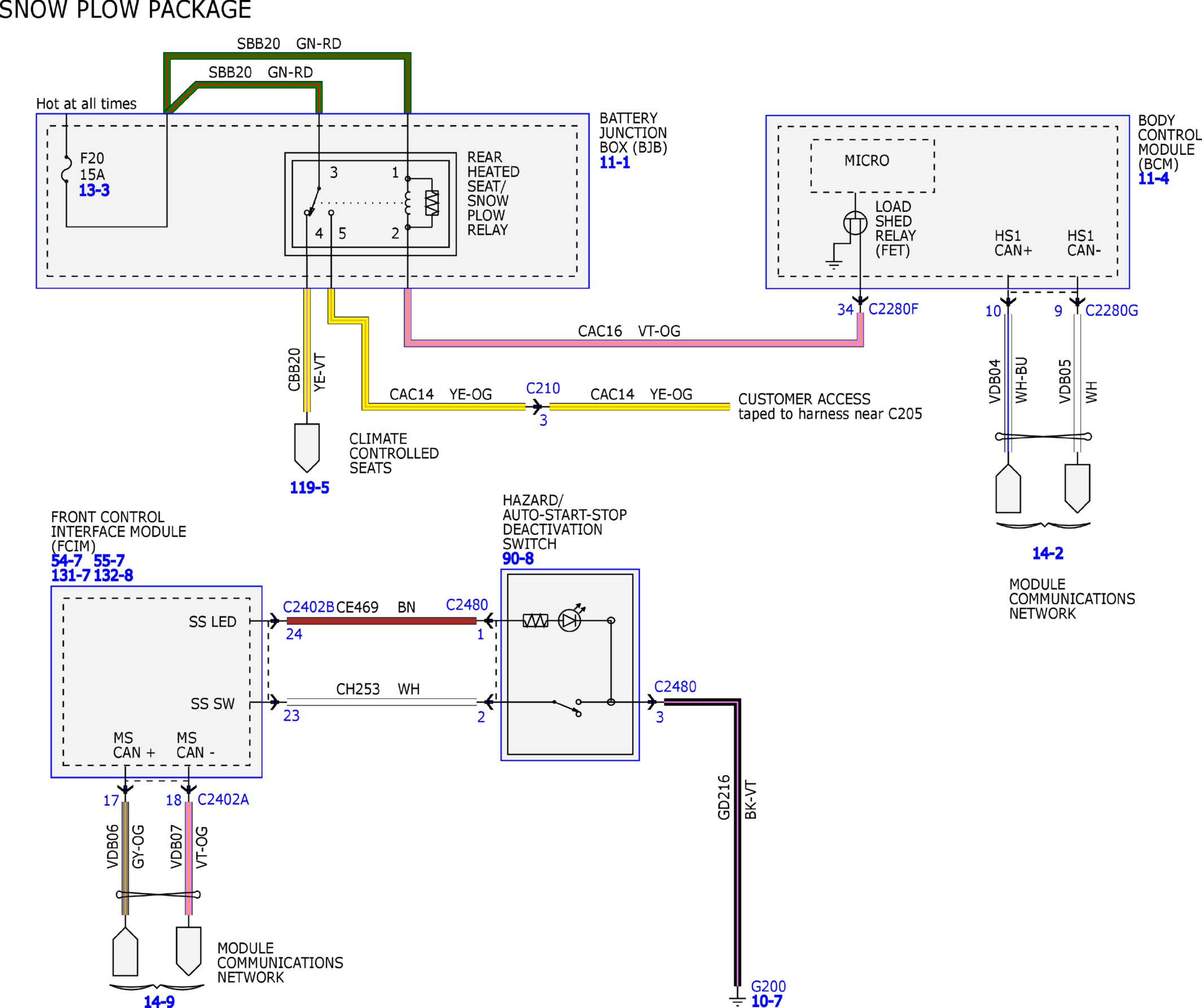

Fig 1: Customer Access System Wiring Diagram
Courtesy of FORD MOTOR COMPANY
