Audio System/Navigation - Without Sync

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

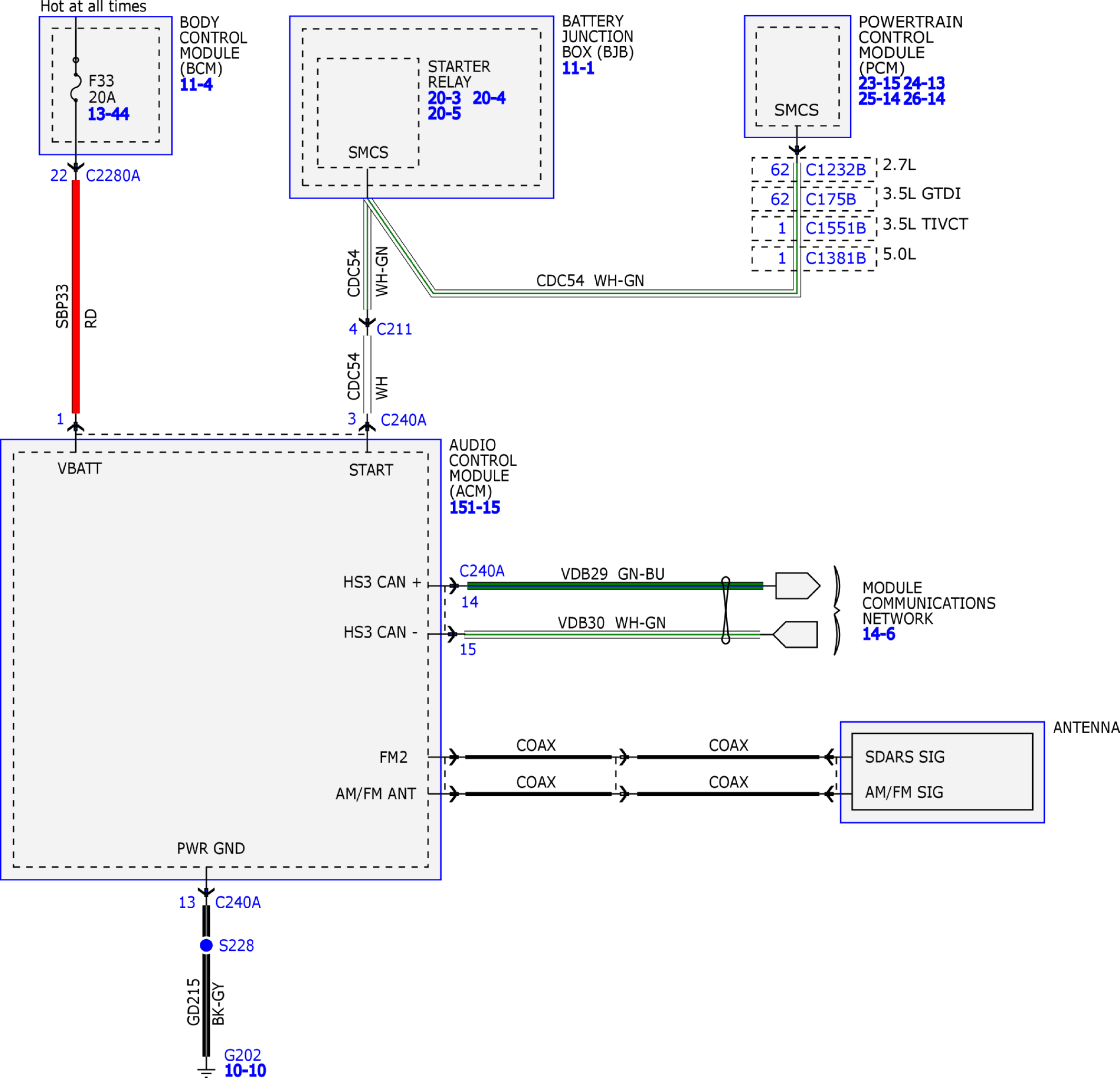

Fig 1: Audio System/Navigation System Wiring Diagrams (1 Of 3) - Without SYNC

Courtesy of FORD MOTOR COMPANY

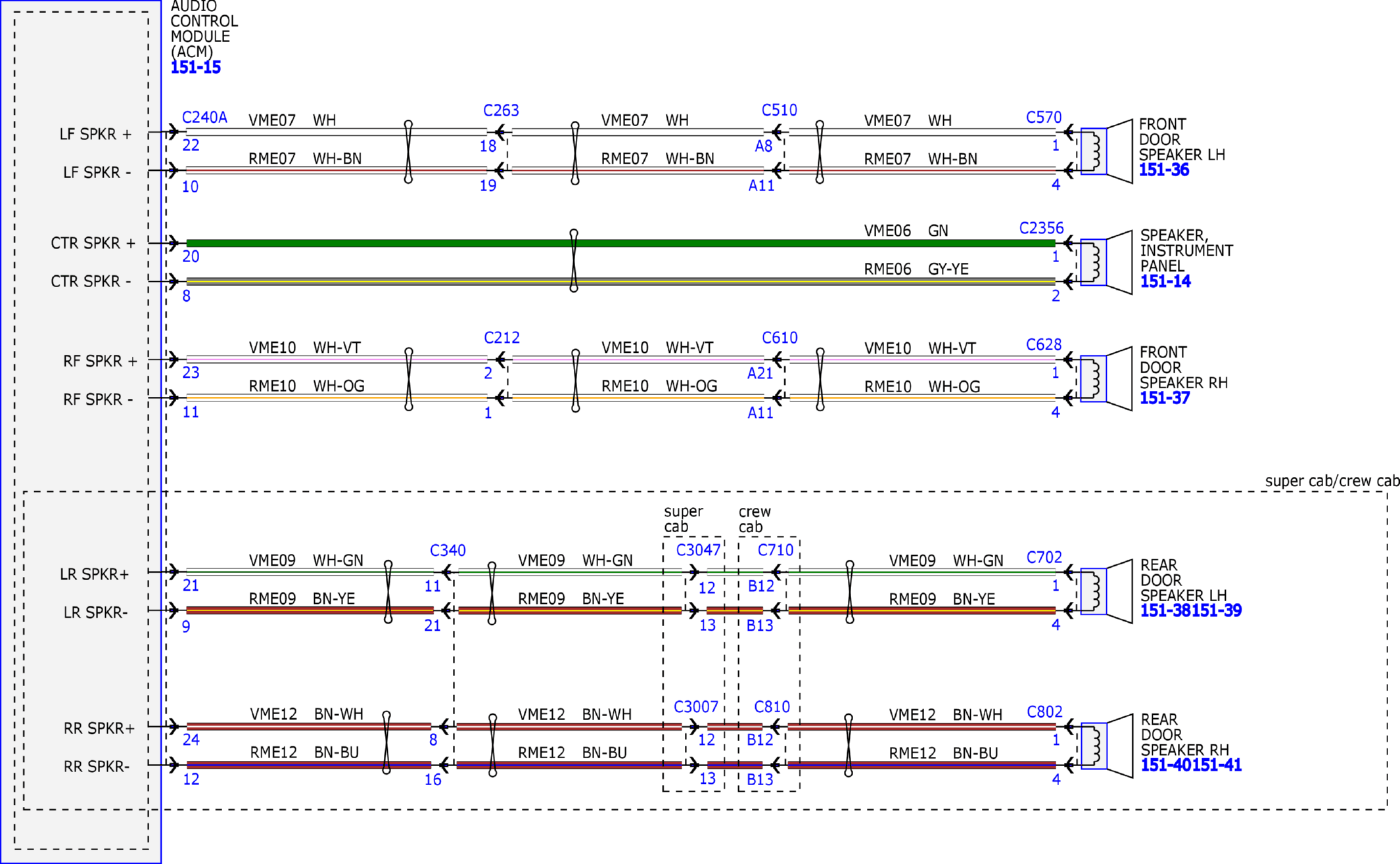

Fig 2: Audio System/Navigation System Wiring Diagrams (2 Of 3) - Without SYNC

Courtesy of FORD MOTOR COMPANY

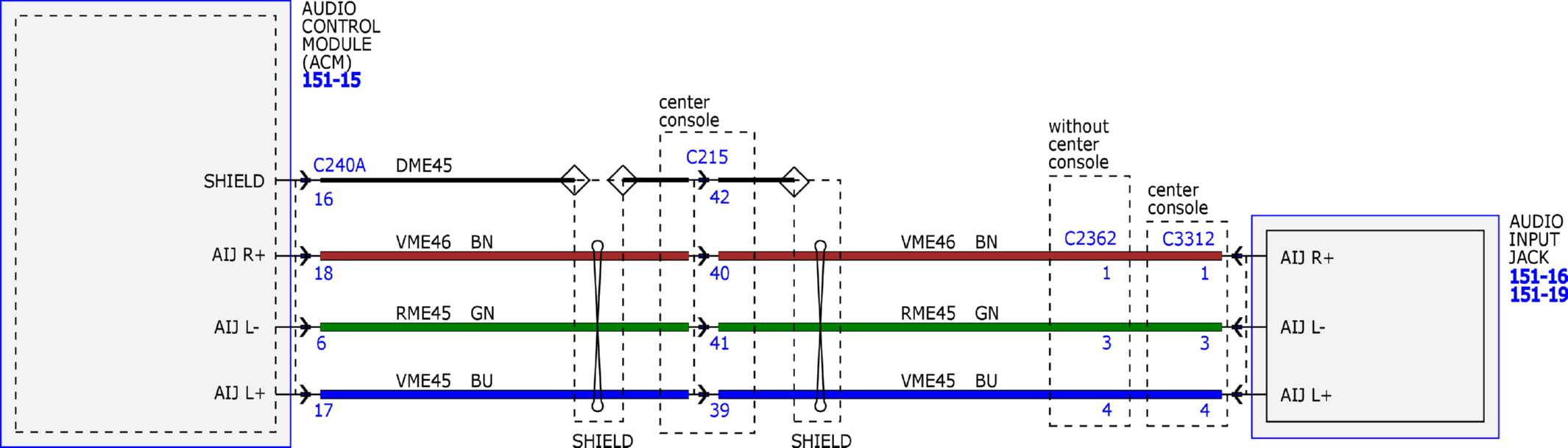

Fig 3: Audio System/Navigation System Wiring Diagrams (3 Of 3) - Without SYNC

Courtesy of FORD MOTOR COMPANY
