Fuse And Relay Location
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

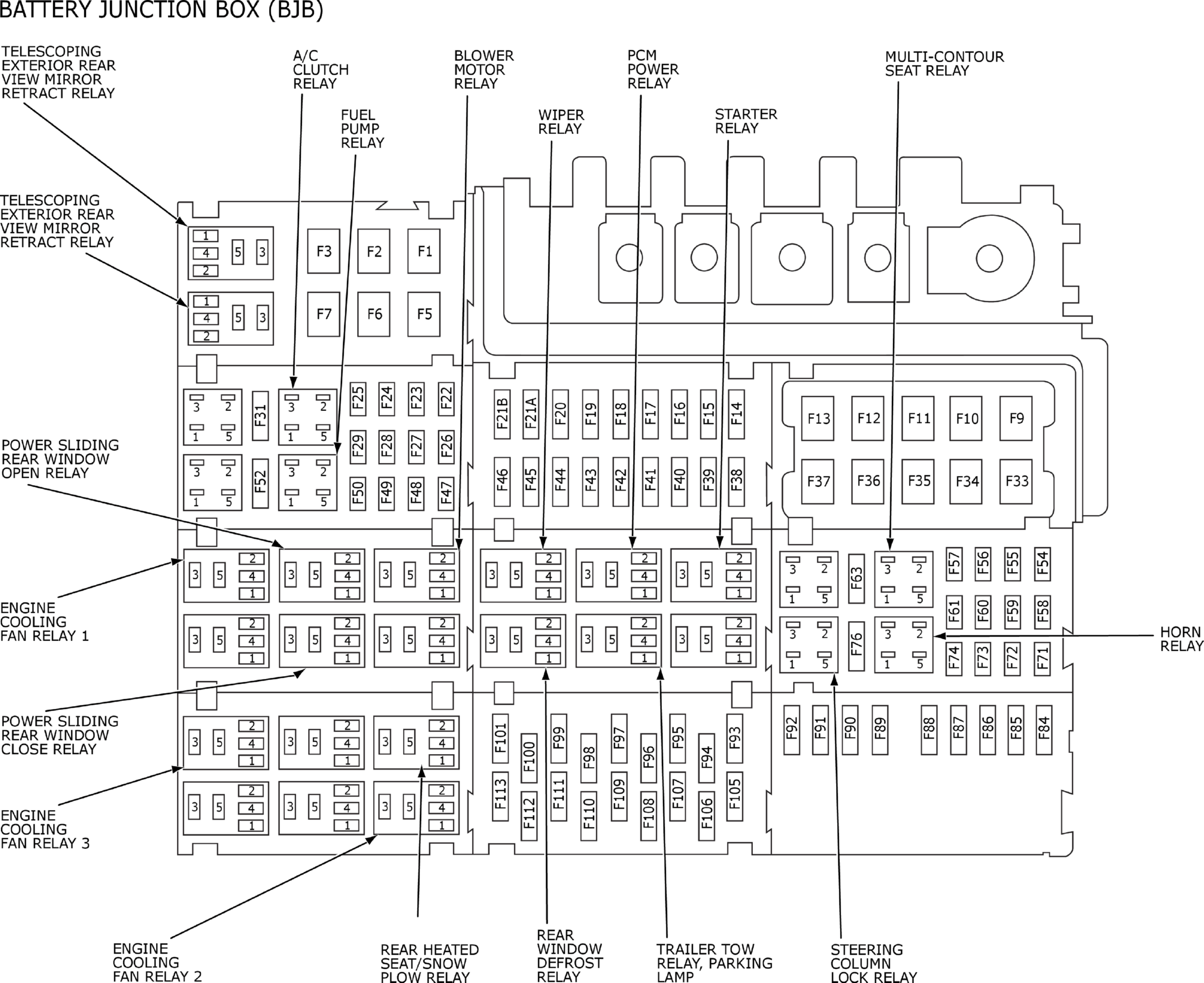

BATTERY JUNCTION BOX (BJB) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Engine Cooling Fan Relay 3 |
| Power Sliding Rear Window Close Relay |
| Engine Cooling Fan Relay 1 |
| Power Sliding Window Open Relay |
| Telescoping Exterior Rear View Mirror Retract Relay |
| Telescoping Exterior Rear View Mirror Retract Relay |
| A/C Clutch Relay |
| Fuel Pump Relay |
| Blower Motor Relay |
| Wiper Relay |
| PCM Power Relay |
| Starter Relay |
| Multi-Contour Seat Relay |
| Horn Relay |
| Steering Column Lock Relay |
| Trailer Tow Relay, Parking Lamp |
| Rear Window Defrost Relay |
| Rear Heated Seat/Snow Blow Relay |
| Engine Cooling Fan Relay 2 |
BATTERY JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected | ||
|---|---|---|---|---|
| F1 | - | Not used | ||
| F2 | - | Not used | ||
| F3 | - | Not used | ||
| F4 | - | Not used | ||
| F5 | 40 | Rear window defrost grid | ||
| F6 | - | Not used | ||
| F7 | - | Not used | ||
| F9 | - | Not used | ||
| F10 | - | Not used | ||
| F11 | 60 | Anti-lock Brake System (ABS) module | ||
| F12 | 50 | Body Control Module (BCM) | ||
| F13 | 60 | Body Control Module (BCM) | ||
| F14 | 20 | Audio Digital Signal Processing (DSP) module, Subwoofer amplifier | ||
| F15 | 25 | Transfer case control module | ||
| F16 | 10 | Spot Lamp Module (SLM) | ||
| F17 | 15 | Front Controls Interface Module (FCIM) | ||
| F18 | 10 | Steering column lock relay | ||
| F19 | 10 | Multi-contour seat relay | ||
| F20 | 15 | Rear heated seat/snow plow relay, Heated seat module, rear | ||
| F21 | - | Not used | ||
| F22 | 30 | Windshield wiper | ||
| F23 | 15 | Rain sensor module | ||
| F24 | 25 | Engine cooling fan relays, Engine cooling fan motor 2 | ||
| F25 | - | Not used | ||
| F26 | 30 | Driver Seat Module (DSM), Seat control switch, driver side front | ||
| F27 | 30 | Seat control switch, passenger side front | ||
| F28 | 30 | Front Seat Climate Control Module (SCME) | ||
| F29 | - | Not used | ||
| F31 | - | Not used | ||
| F33 | 50 | Engine cooling fan relay 3 | ||
| F34 | 25 | Trailer tow relay, parking lamp | ||
| F35 | 20 | Trailer tow module, Trailer tow relays | ||
| F36 | 25 | Trailer tow module | ||
| F37 | 50 | Engine cooling fan relay 1 | ||
| F38 | 10 | Generator | ||
| F39 | 10 | Integrated Wheel End (IWE) solenoid | ||
| F40 | 15 | Transfer case control module (TCCM) | ||
| F41 | 10 | Telescoping mirrors relays | ||
| F42 | 30 | Transmission fluid pump | ||
| F43 | 25 | Horn relay | ||
| F44 | 10 | A/C clutch relay | ||
| F45 | 10 | PCM power relay | ||
| F46 | 10 | Wiper relay | ||
| F47 | - | Not used | ||
| F48 | - | Not used | ||
| F49 | 30 | Trailer Brake Control (TBC) module | ||
| F50 | 30 | Power Running Board (PRB) module | ||
| F52 | - | Not used | ||
| F54 | 30 | DC to DC converter control module, Body Control Module (BCM) (Fuses 6, 7, 12, 13, 32, 33) |
||
| F55 | 40 | Body Control Module (BCM) | ||
| F56 | 20 | Fuel pump relay | ||
| F57 | 30 | Electronic park brake module | ||
| F58 | 30 | Electronic park brake module | ||
| F59 | 30 | Starter relay | ||
| F60 | 40 | Blower motor relay | ||
| F61 | 30 | Anti-lock Brake System (ABS) module | ||
| F63 | 15 | Exterior mirrors | ||
| F71 | - | Not used | ||
| F72 | 25 | Transfer Case Control Module (TCCM) | ||
| F73 | - | Not used | ||
| F74 | 30 | Power sliding rear window open relay, Power sliding rear window close relay | ||
| F76 | - | Not used | ||
| F84 | - | Not used | ||
| F85 | - | Not used | ||
| F86 | - | Not used | ||
| F87 | 10 | Trailer tow relay, reversing lamp | ||
| F88 | - | Not used | ||
| F89 | 20 | Power point 1, instrument panel | ||
| F90 | 20 | Power point 2, instrument panel, Power point, console front | ||
| F91 | 20 | Power point, console rear, Power point, seat | ||
| F92 | 20 | Power point, console center | ||
| F93 | (1)25 (2)10 | Powertrain Control Module (PCM) | ||
| F94 | - | Not used | ||
| F95 | 25 | EVAP valves, Fuel vapor vent valve, Heated oxygen sensors, Variable camshaft timing solenoids, Intake manifold tuning valves | ||
| F96 | - | Not used | ||
| F97 | 10 | A/C clutch relay, Engine cooling fan relays, Active grille shutters, Turbocharger Bypass Valve (TCBY), Temperature control valve, transmission fluid warmer, Wastegate control solenoid, oil pressure control solenoid, Cabin heater coolant pump | ||
| F98 | - | Not used | ||
| F99 | (1)15 (2)20 | Ignition coil-on-plugs | ||
| F100 | - | Not used | ||
| F101 | - | Not used | ||
| F105 | 10 | Power Steering Control Module (PSCM) | ||
| F106 | - | Not used | ||
| F107 | 10 | Anti-lock Brake System (ABS) module | ||
| F108 | - | Not used | ||
| F109 | 10 | Powertrain Control Module (PCM) | ||
| F110 | 10 | Transfer case control module, Cruise Control Module (C-CM) | ||
| Fill | 10 | Transmission fluid pump | ||
| F112 | - | Not used | ||
| F113 | 7.5 | DC to DC converter control module, Video cameras, Rear lamp assemblies | ||
|
||||
|
||||

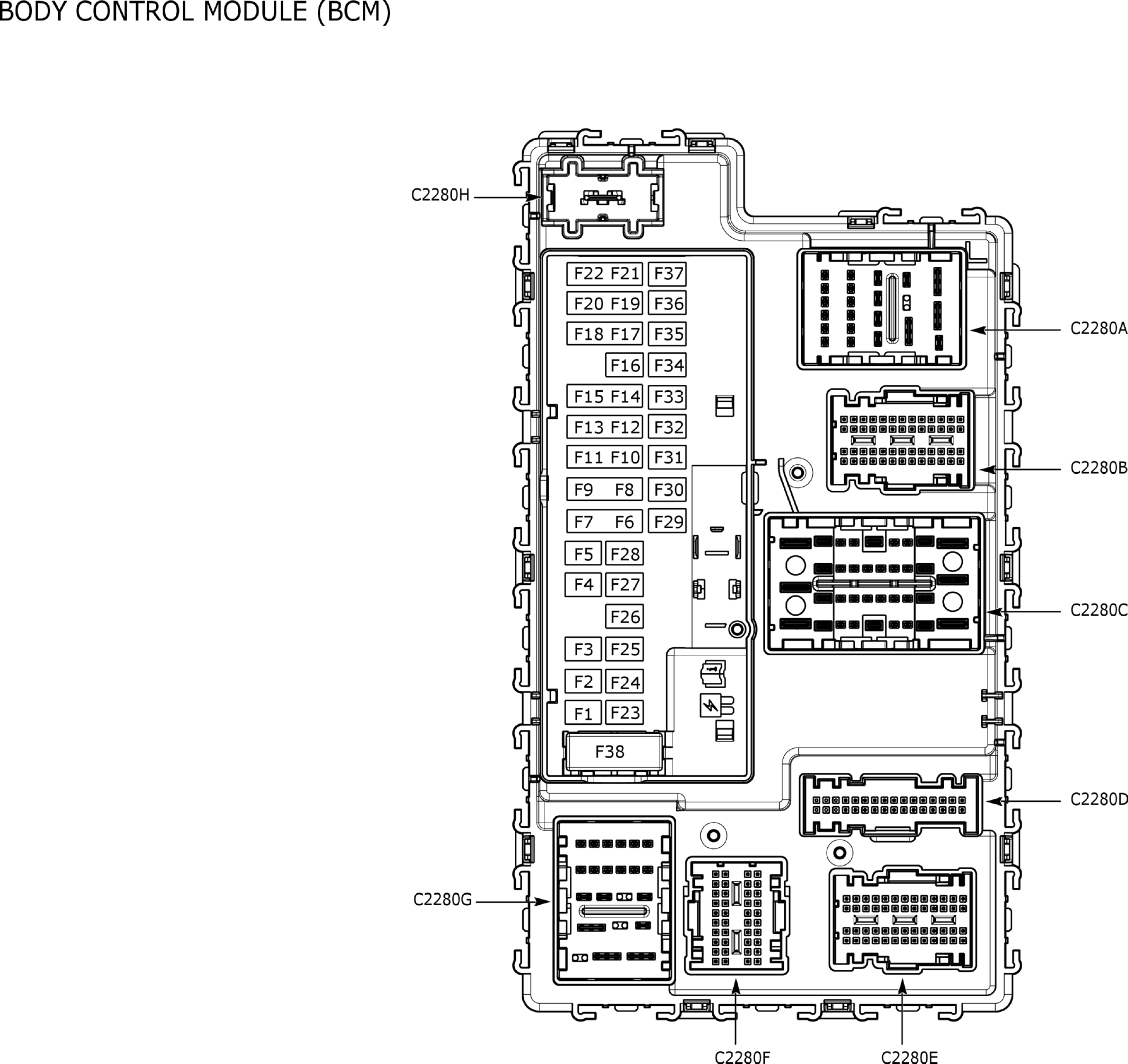

BODY CONTROL MODULE FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 10 | Battery saver relay |
| F2 | 7.5 | Driver Seat Module (DSM), Seat control switch, driver side front |
| F3 | 20 | Driver/Fuel flap unlock relay, Double/Aux lock relay |
| F4 | 5 | Trailer Brake Control (TBC) module, Powertrain Control Module (PCM), Brake Pedal Position (BPP) switch |
| F5 | 20 | Not used |
| F6 | 10 | Not used |
| F7 | 10 | Not used |
| F8 | 10 | Security horn relay |
| F9 | 10 | Not used |
| F10 | 5 | Not used |
| F11 | 5 | Intrusion sensor |
| F12 | 7.5 | Gateway module, Front Controls Interface Module (FCIM) |
| F13 | 7.5 | Steering Column Control Module (SCCM), Instrument Panel Cluster (IPC) |
| F14 | 10 | Brake Pedal Position (BPP) switch |
| F15 | 10 | Gateway module |
| F16 | 15 | Decklid/liftgate relay, Child lock relay |
| F17 | 5 | Head Up Display (HUD) module |
| F18 | 5 | Ignition switch-push button start, Ignition switch |
| F19 | 5 | Floor shifter, Overdrive cancel switch |
| F20 | 5 | Telematics module (Crew Chief) |
| F21 | 5 | In-vehicle temperature/humidity sensor, Head Up Display (HUD) module |
| F22 | 5 | Occupant Classification System Module (OCSM), Electronic park brake module |
| F23 | 10 | Master window control switch, DC/AC inverter module, Roof opening panel module, Power sliding window switch, rear |
| F24 | 20 | Central lock relay, Central unlock relay |
| F25 | 30 | Driver Door Module (DDM) |
| F26 | 30 | Passenger Door Module (PDM) |
| F27 | 30 | Roof opening panel module, Sunshade module |
| F28 | 20 | Not used |
| F29 | 30 | Not used |
| F30 | 30 | Not used |
| F31 | 15 | Adjustable pedal switch |
| F32 | 10 | Global Positioning System Module (GPSM), Sync module [APIM], Radio Transceiver Module (RTM), Front Control/Display Interface Module (FCDIM) |
| F33 | 20 | Audio Control Module (ACM) |
| F34 | 30 | Ignition Relay |
| F35 | 10 | Restraints Control Module (RCM) |
| F36 | 15 | Auto-dimming interior mirror, Heated seat module, rear, Image Processing Module B (IPMB), Heated Steering Wheel Module (HSWM) |
| F37 | 15 | Battery Junction Box (BJB) |
| F38 | 30 | Rear door window control switches |
