WARNING: This page is about a different car, the 2015 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Reversing Lamps System Wiring Diagrams (1 Of 2)
Courtesy of FORD MOTOR COMPANY

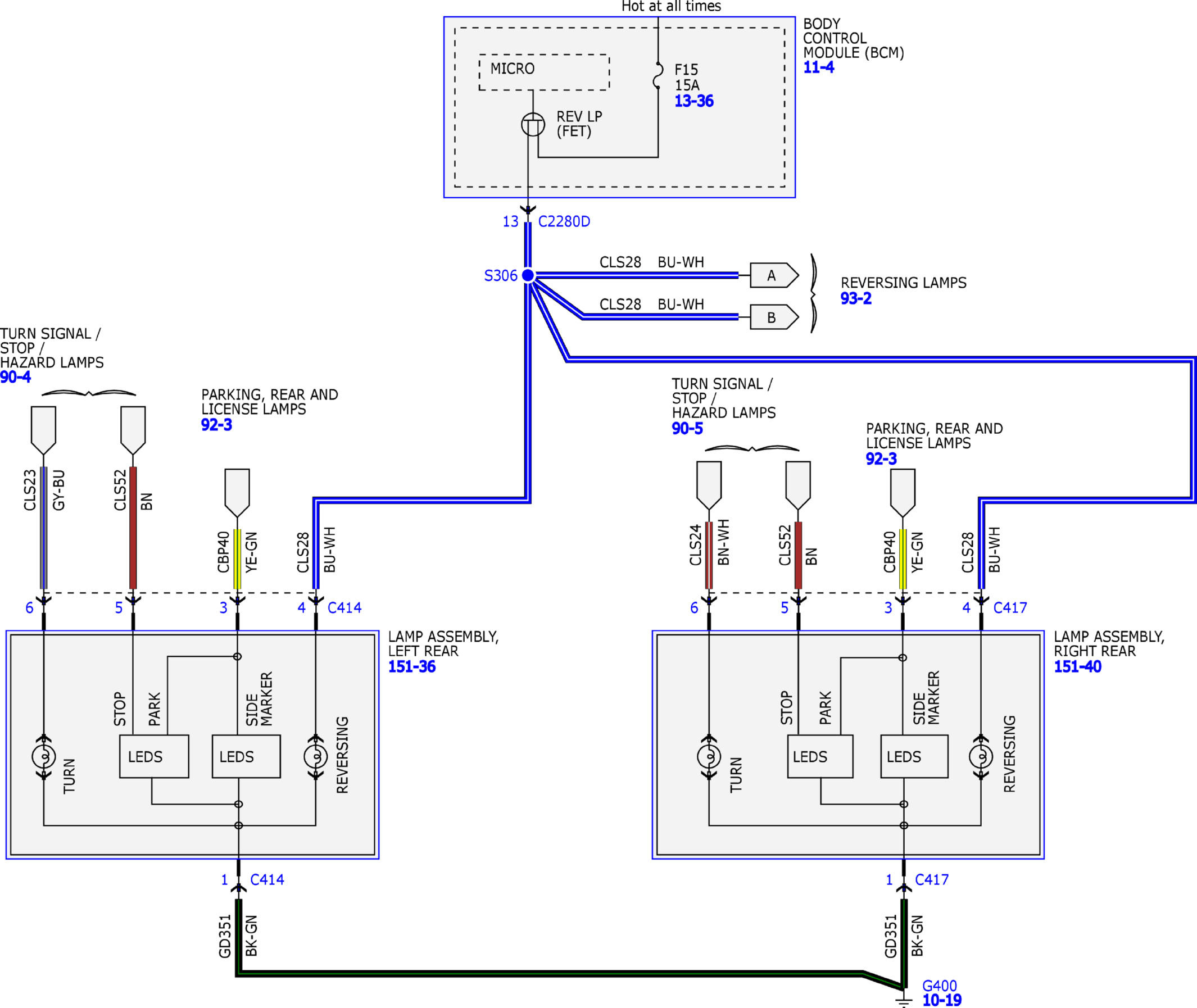

Fig 2: Reversing Lamps System Wiring Diagrams (2 Of 2)
