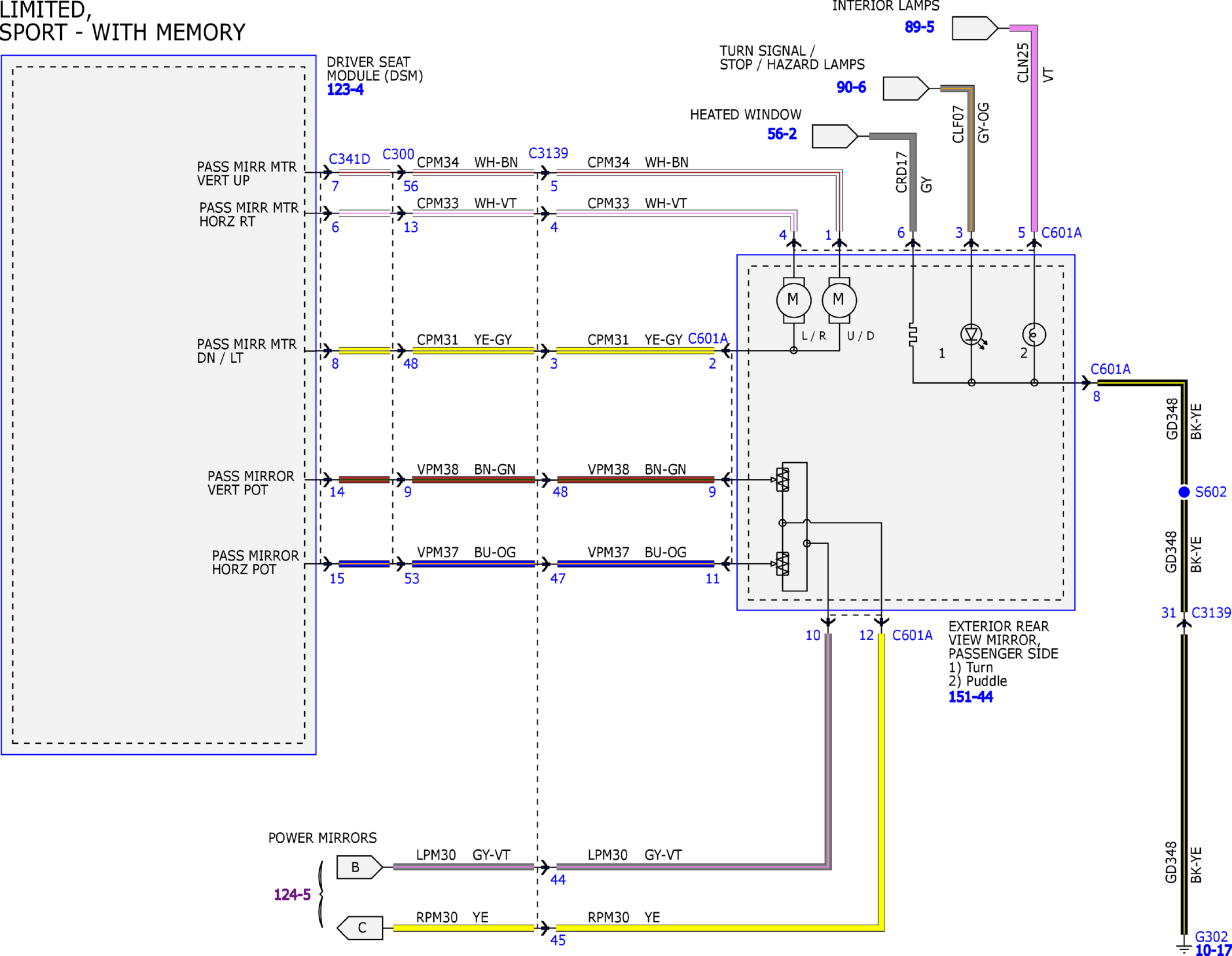

Fig 1: Power Mirrors System Wiring Diagrams (1 Of 10)
Courtesy of FORD MOTOR COMPANY

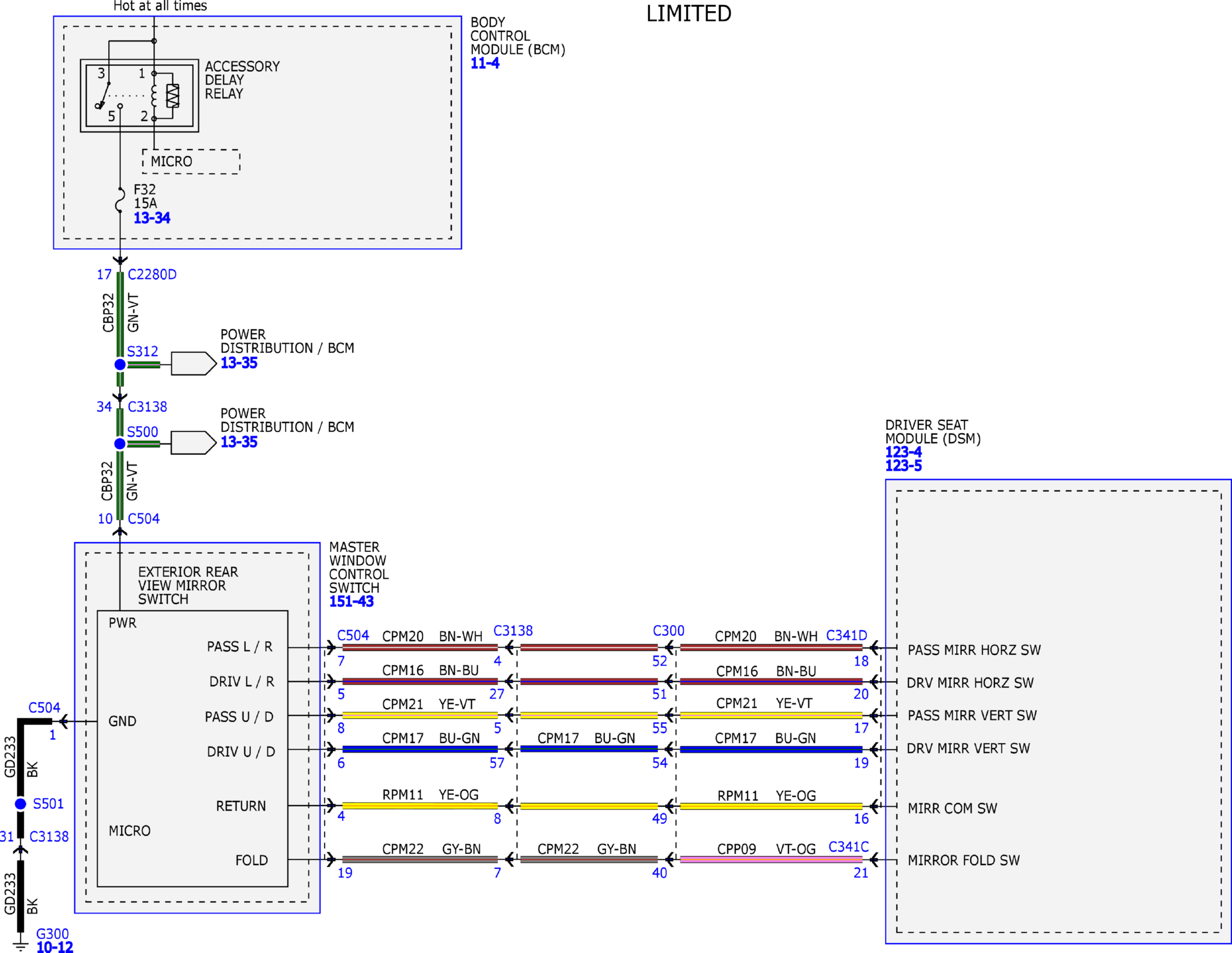

Fig 2: Power Mirrors System Wiring Diagrams (2 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 3: Power Mirrors System Wiring Diagrams (3 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 4: Power Mirrors System Wiring Diagrams (4 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 5: Power Mirrors System Wiring Diagrams (5 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 6: Power Mirrors System Wiring Diagrams (6 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 7: Power Mirrors System Wiring Diagrams (7 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 8: Power Mirrors System Wiring Diagrams (8 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 9: Power Mirrors System Wiring Diagrams (9 Of 10)
Courtesy of FORD MOTOR COMPANY
Fig 10: Power Mirrors System Wiring Diagrams (10 Of 10)
