WARNING: This page is about a different car, the 2015 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

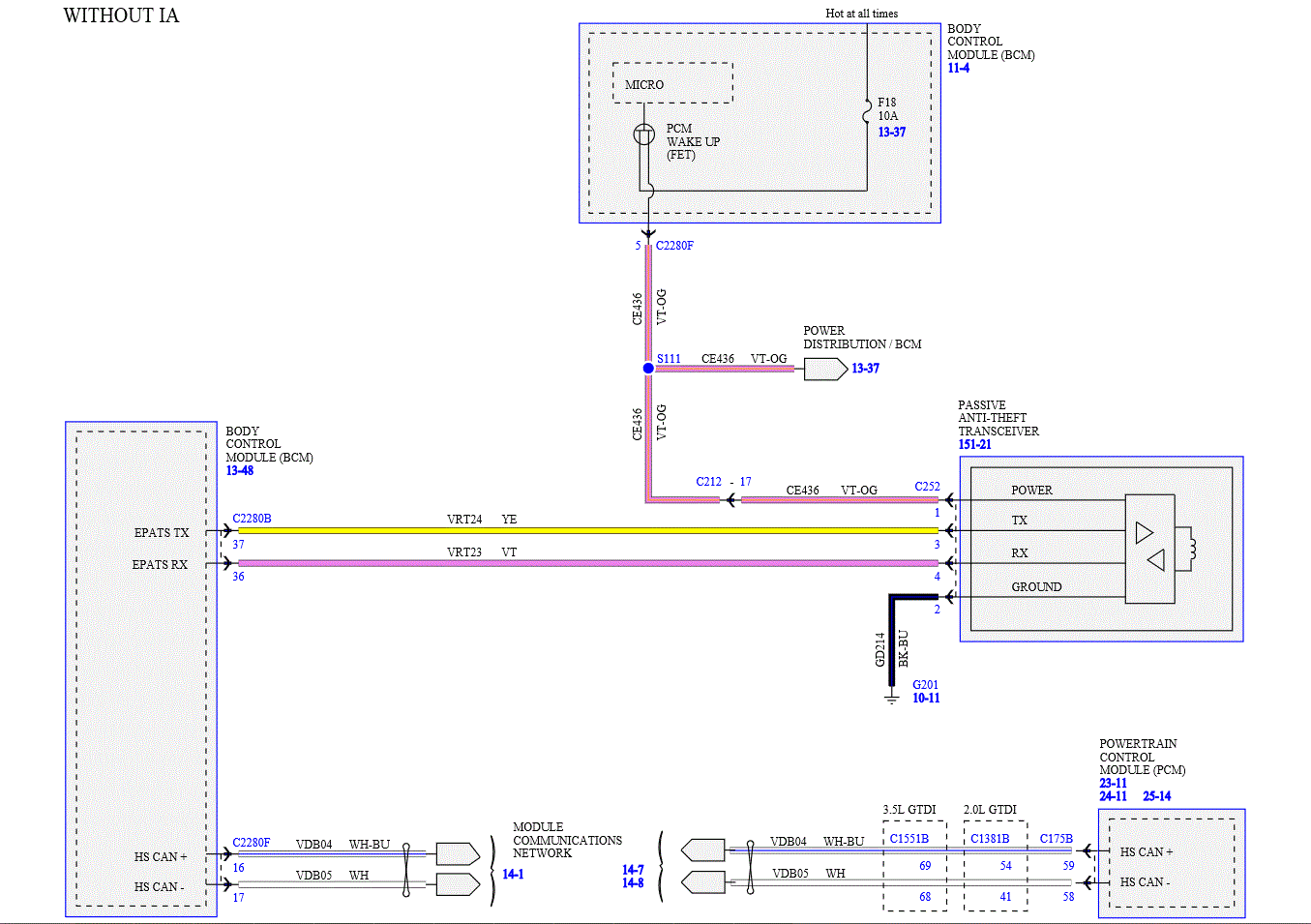

Fig 1: Passive Anti-Theft System Wiring Diagrams (1 Of 3)
Courtesy of FORD MOTOR COMPANY

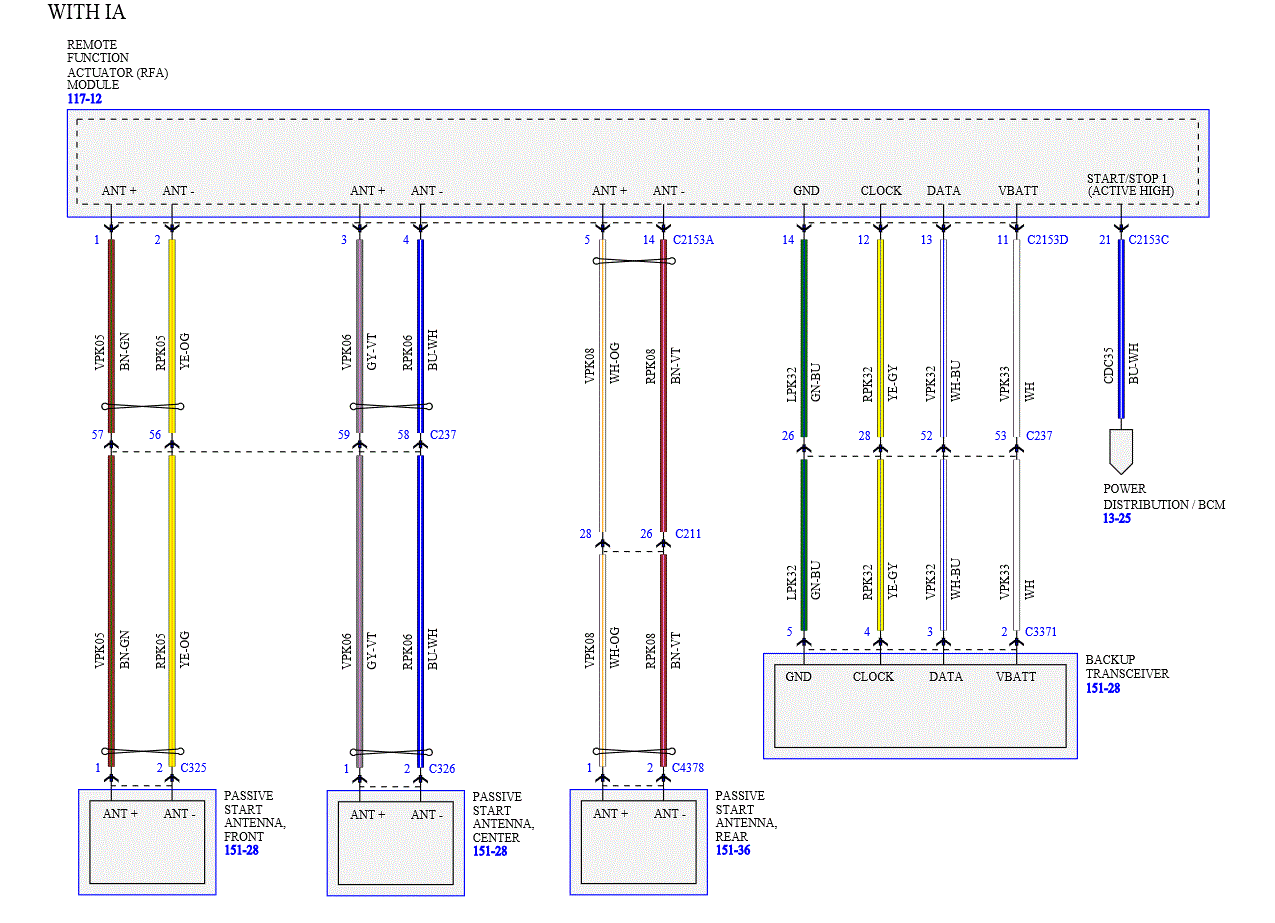

Fig 2: Passive Anti-Theft System Wiring Diagrams (2 Of 3)
Courtesy of FORD MOTOR COMPANY

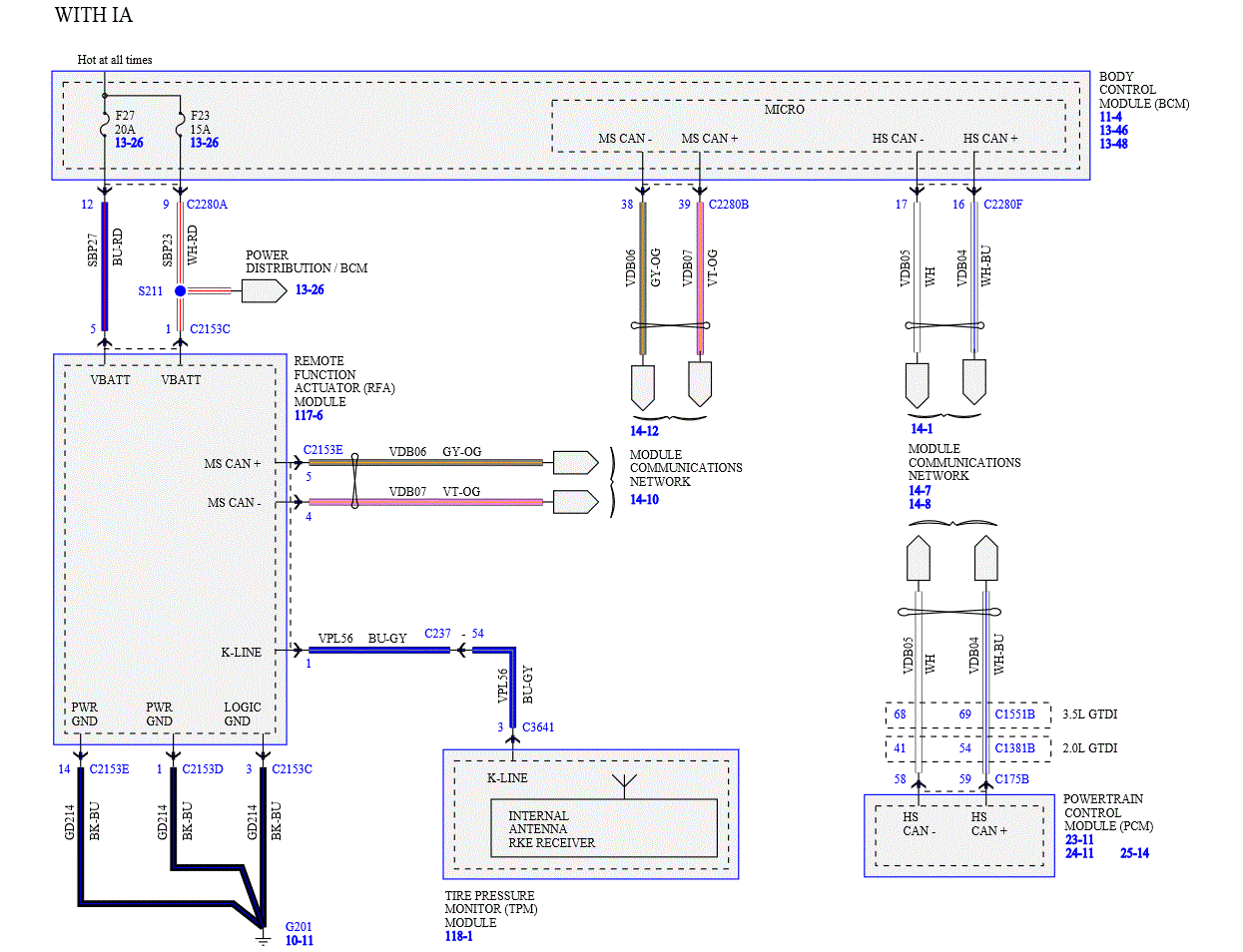

Fig 3: Passive Anti-Theft System Wiring Diagrams (3 Of 3)
