WARNING: This page is about a different car, the 2015 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

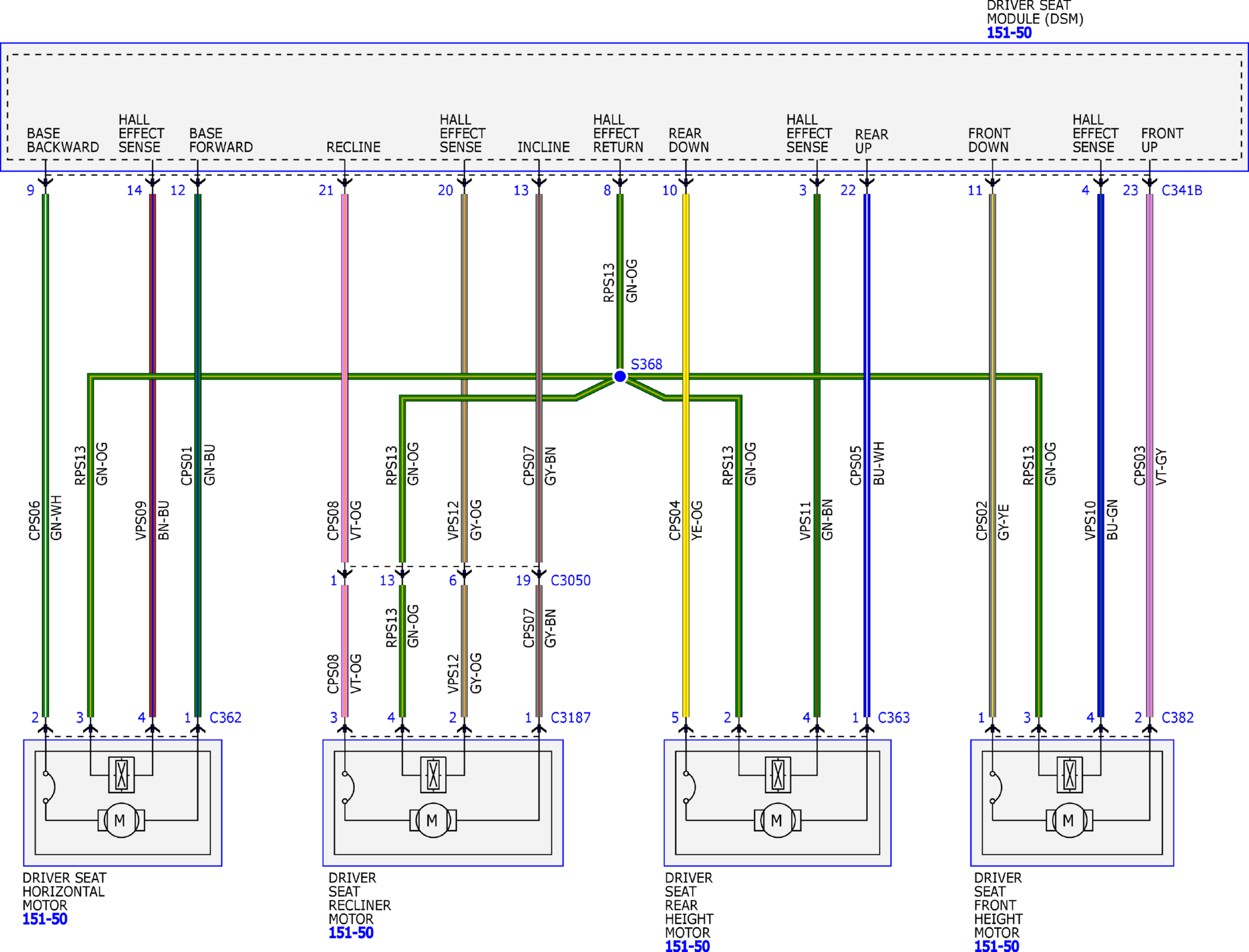

Fig 1: Memory Seats System Wiring Diagrams (1 Of 5)
Courtesy of FORD MOTOR COMPANY

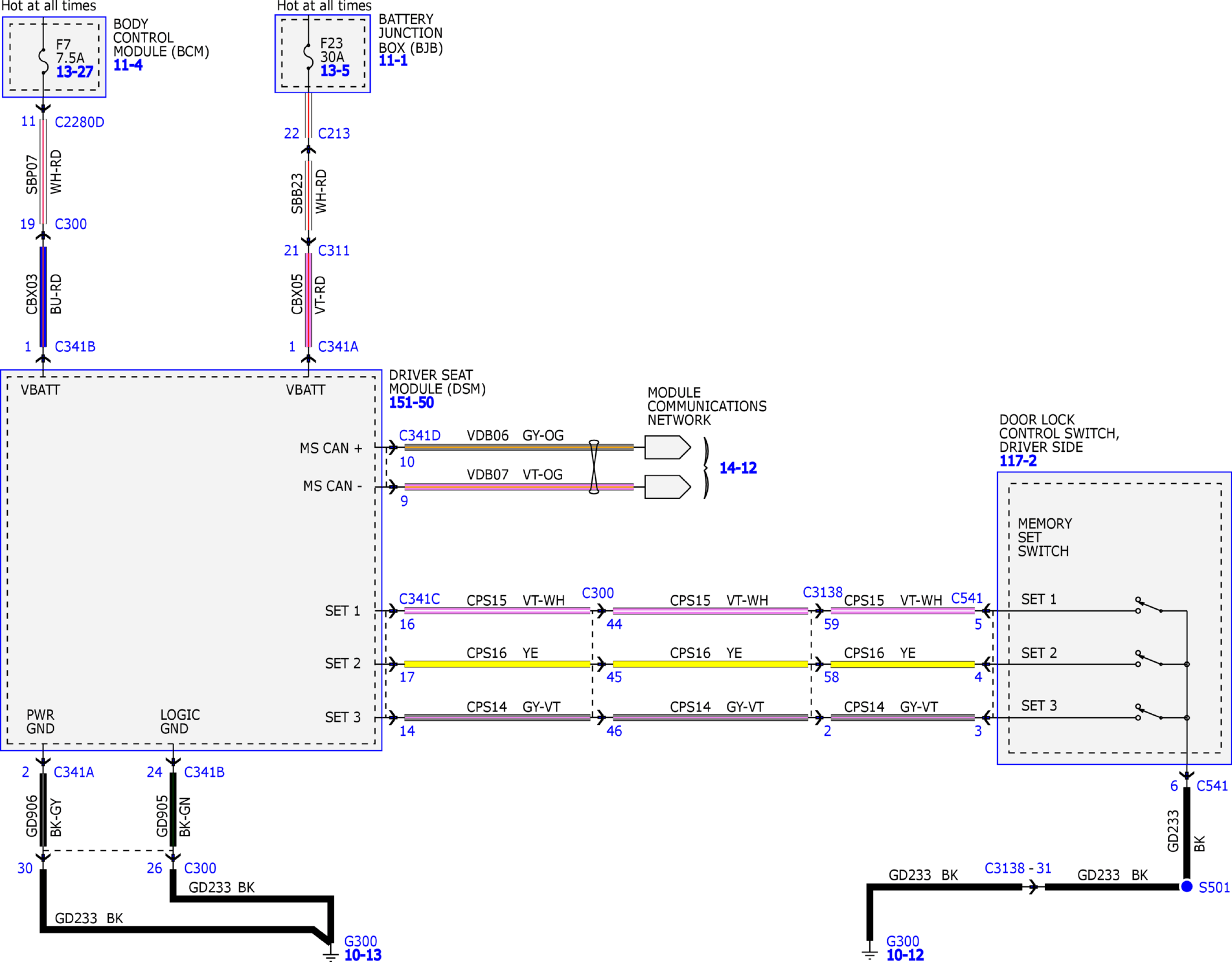

Fig 2: Memory Seats System Wiring Diagrams (2 Of 5)
Courtesy of FORD MOTOR COMPANY

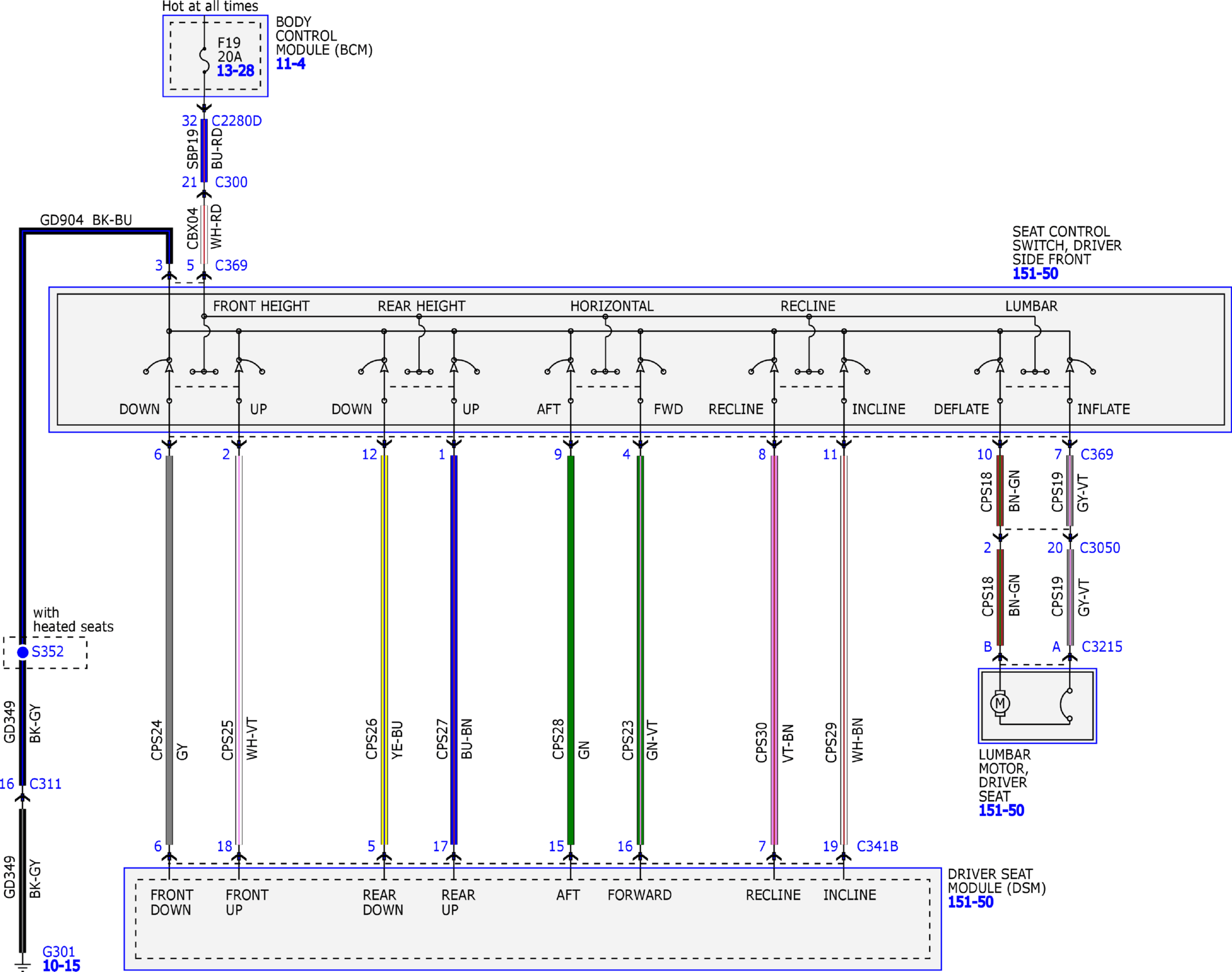

Fig 3: Memory Seats System Wiring Diagrams (3 Of 5)
Courtesy of FORD MOTOR COMPANY

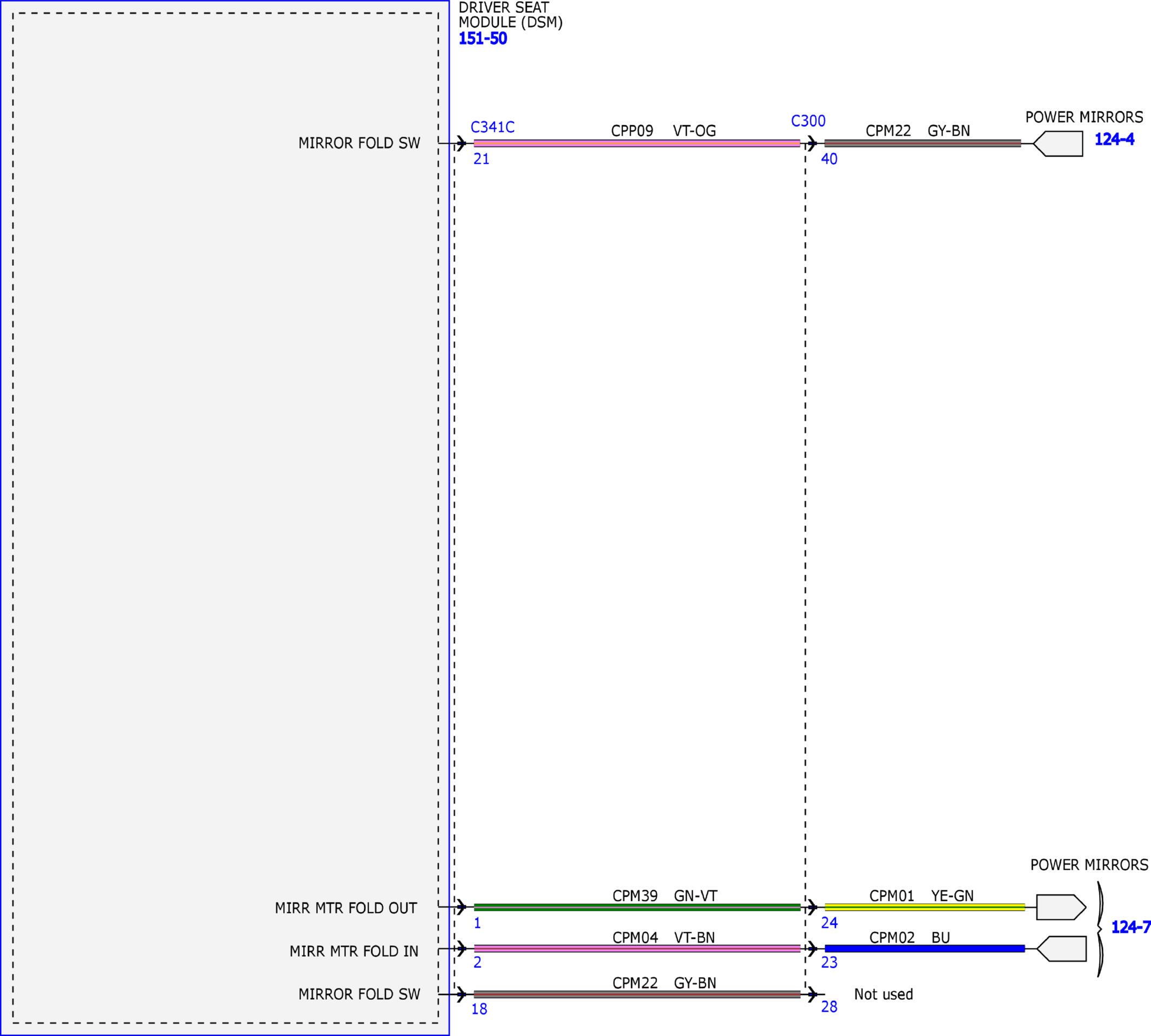

Fig 4: Memory Seats System Wiring Diagrams (4 Of 5)
Courtesy of FORD MOTOR COMPANY

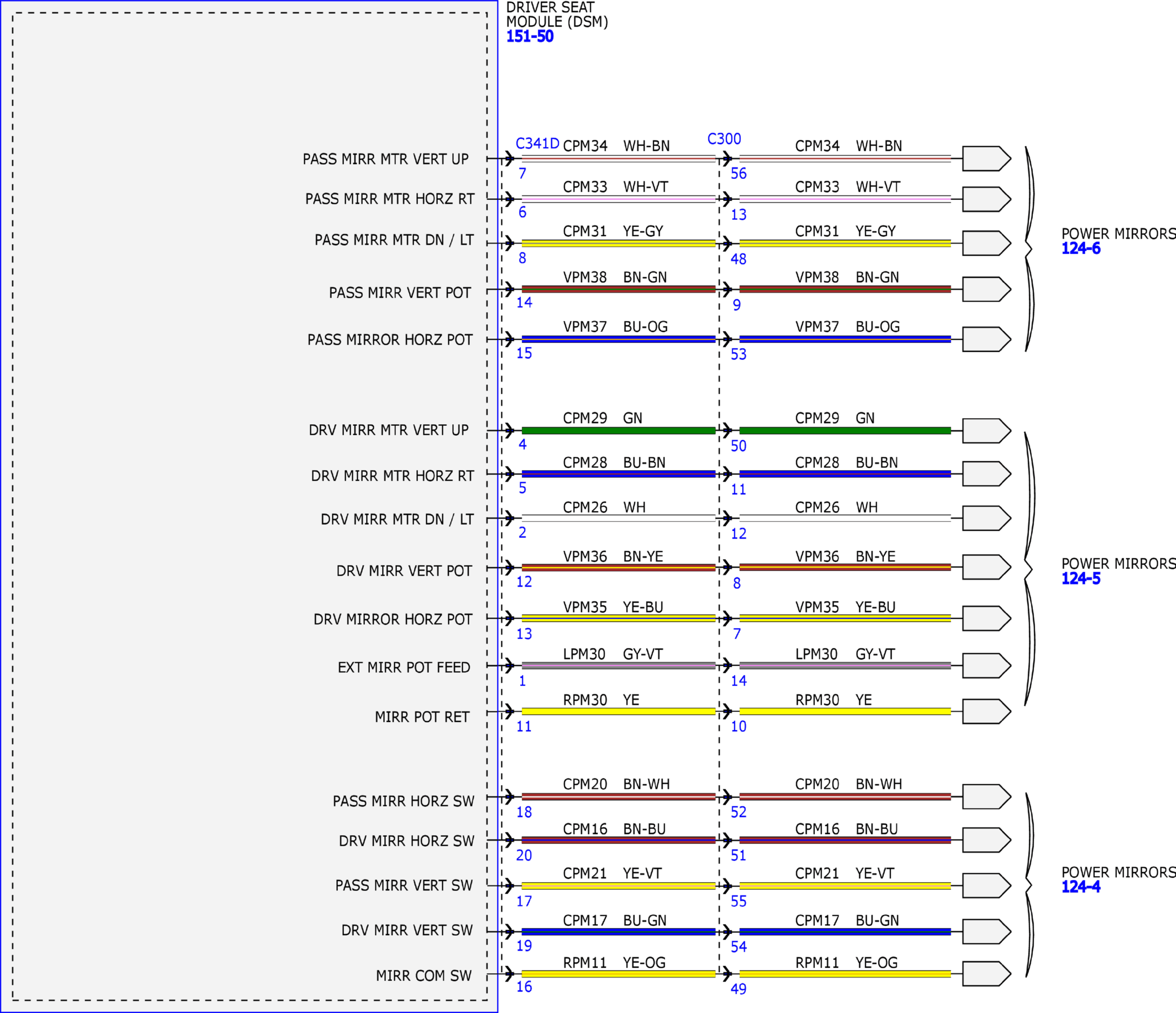

Fig 5: Memory Seats System Wiring Diagrams (5 Of 5)
