WARNING: This page is about a different car, the 2015 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

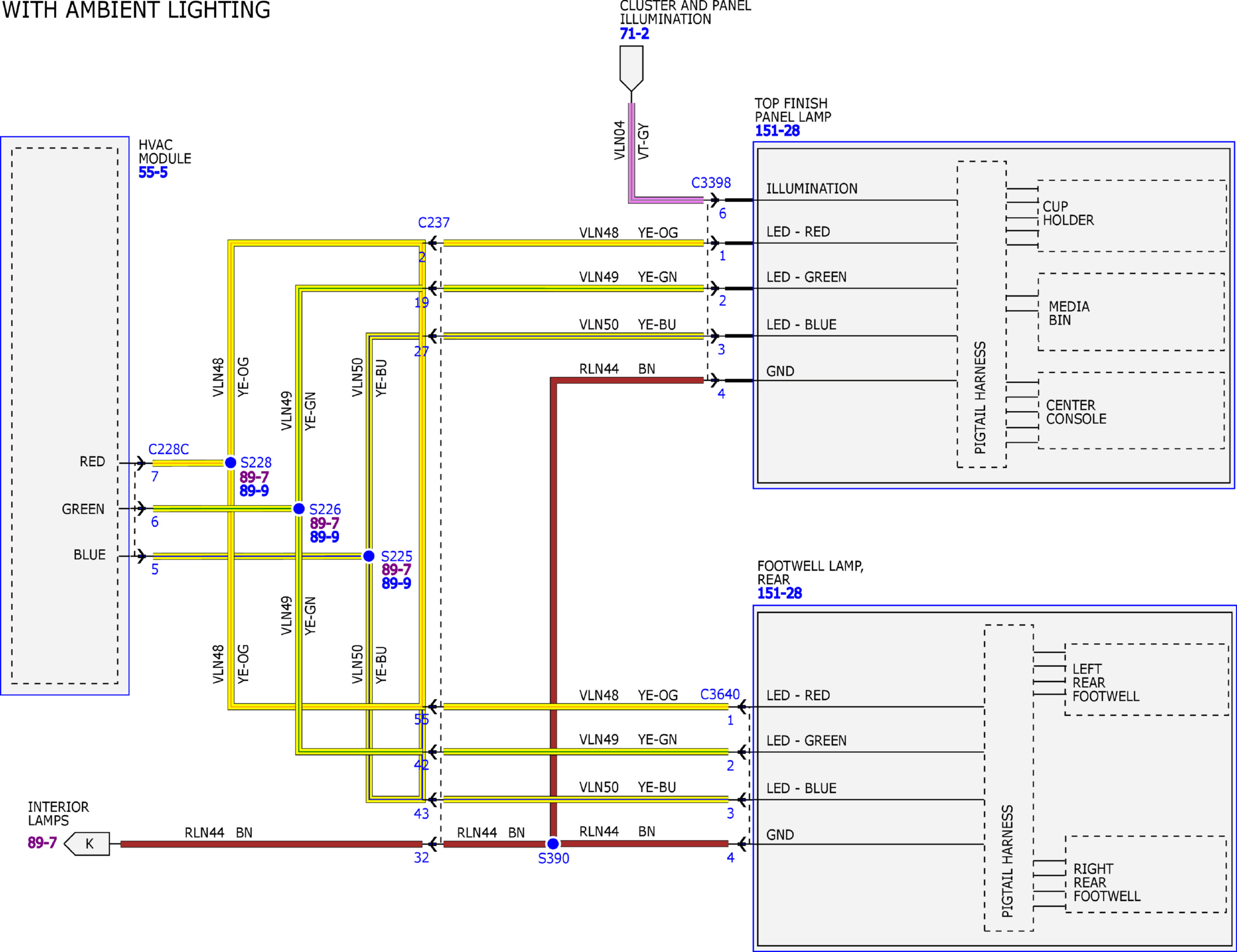

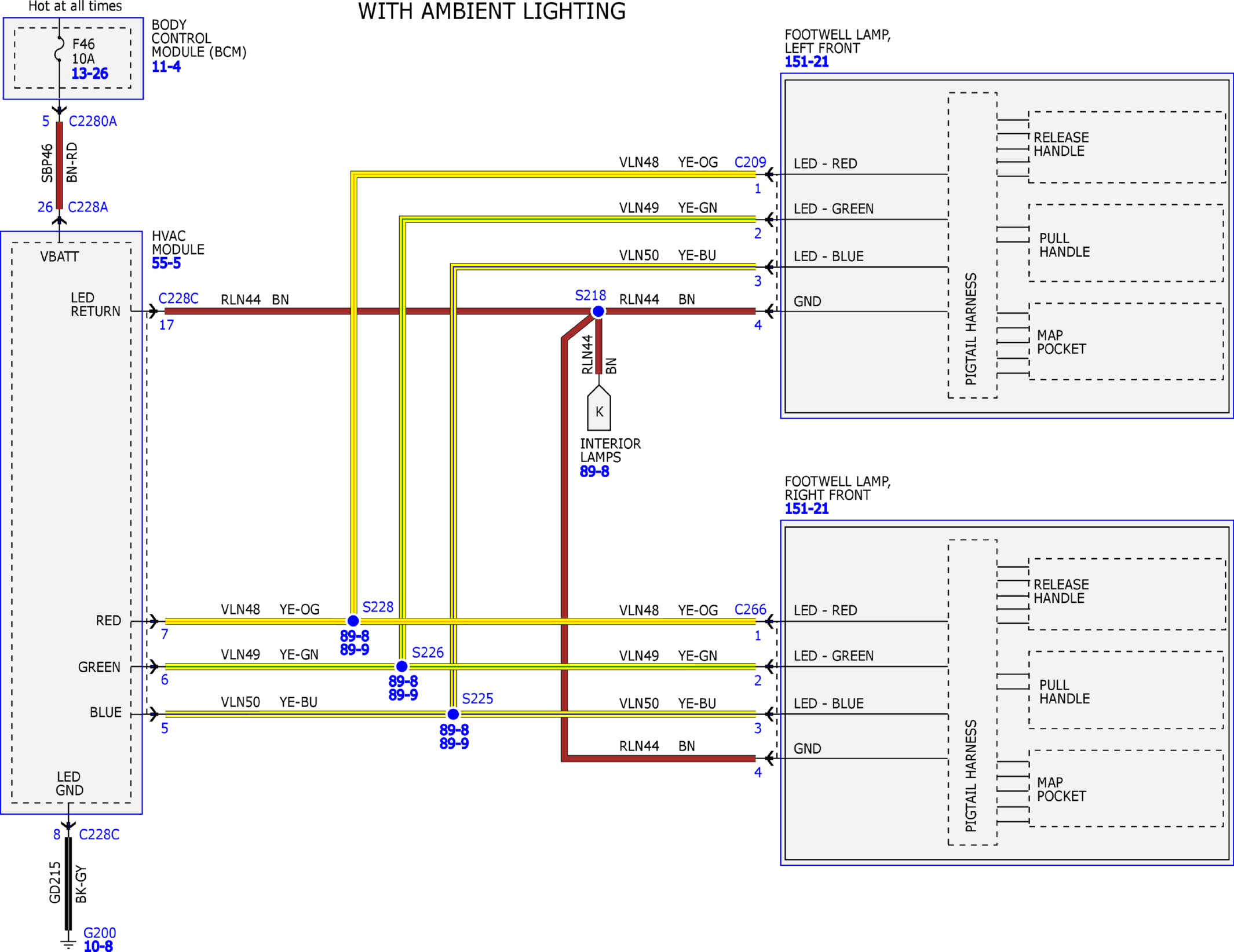

Fig 1: Interior Lamps System Wiring Diagrams (1 Of 9)
Courtesy of FORD MOTOR COMPANY

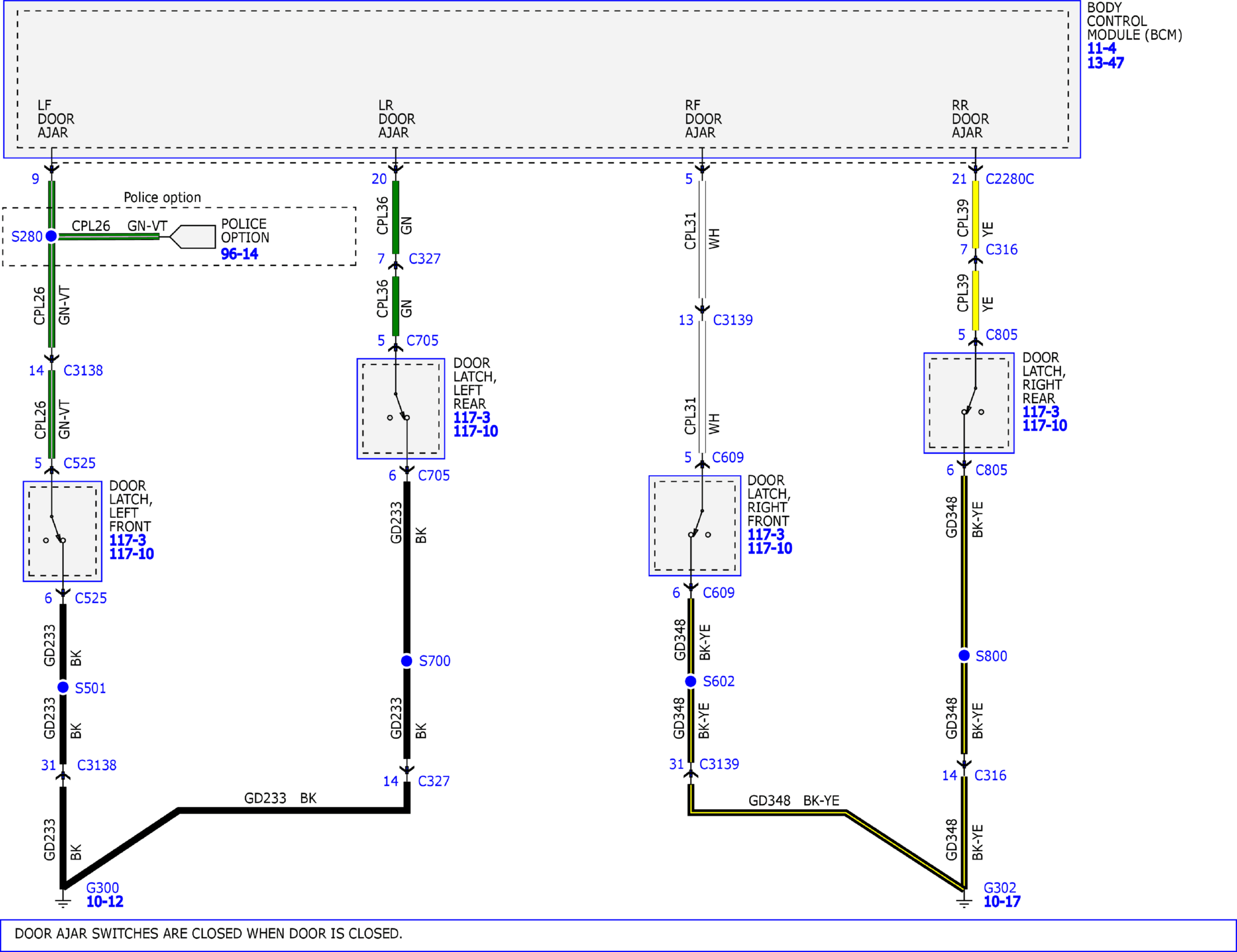

Fig 2: Interior Lamps System Wiring Diagrams (2 Of 9)
Courtesy of FORD MOTOR COMPANY

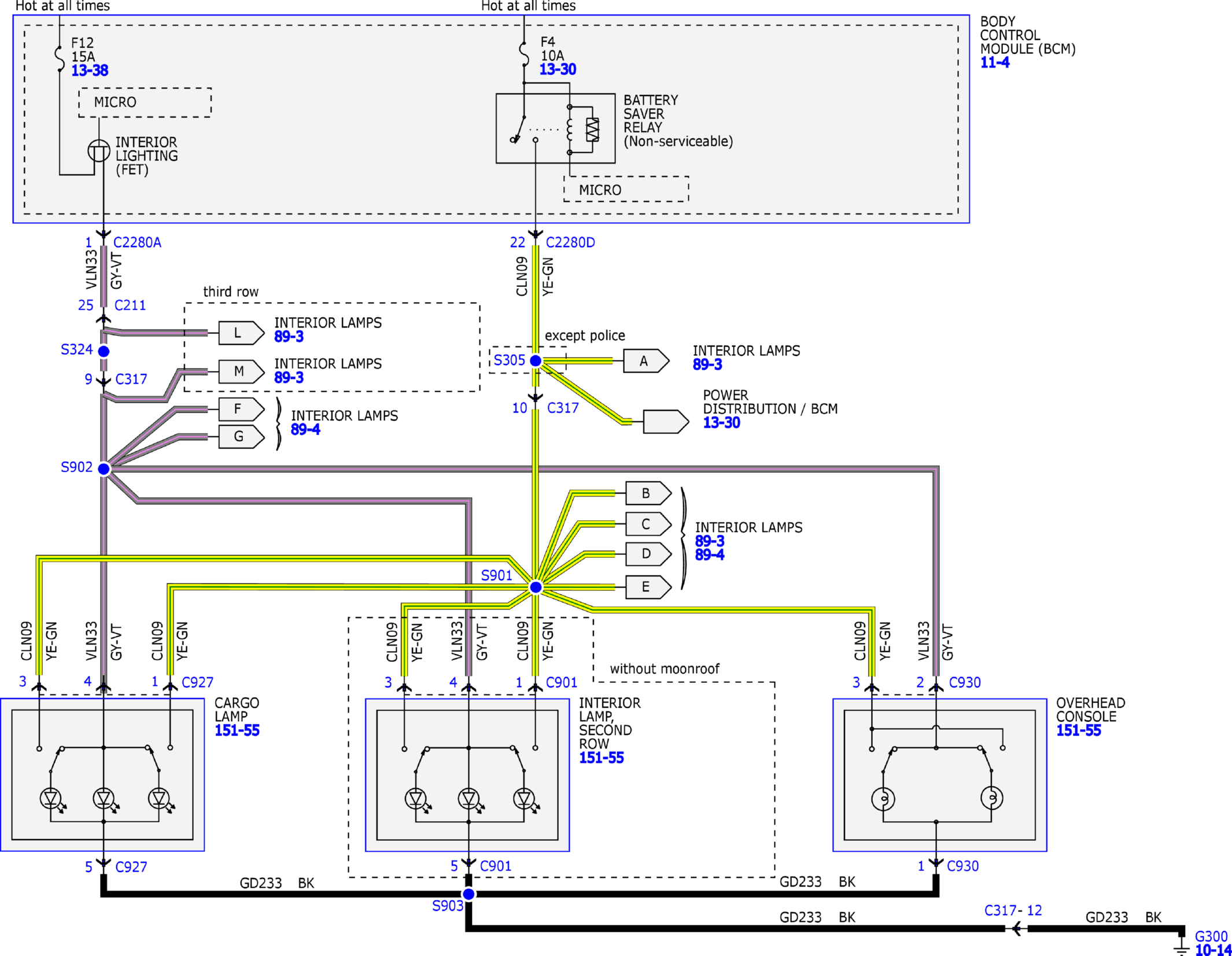

Fig 3: Interior Lamps System Wiring Diagrams (3 Of 9)
Courtesy of FORD MOTOR COMPANY

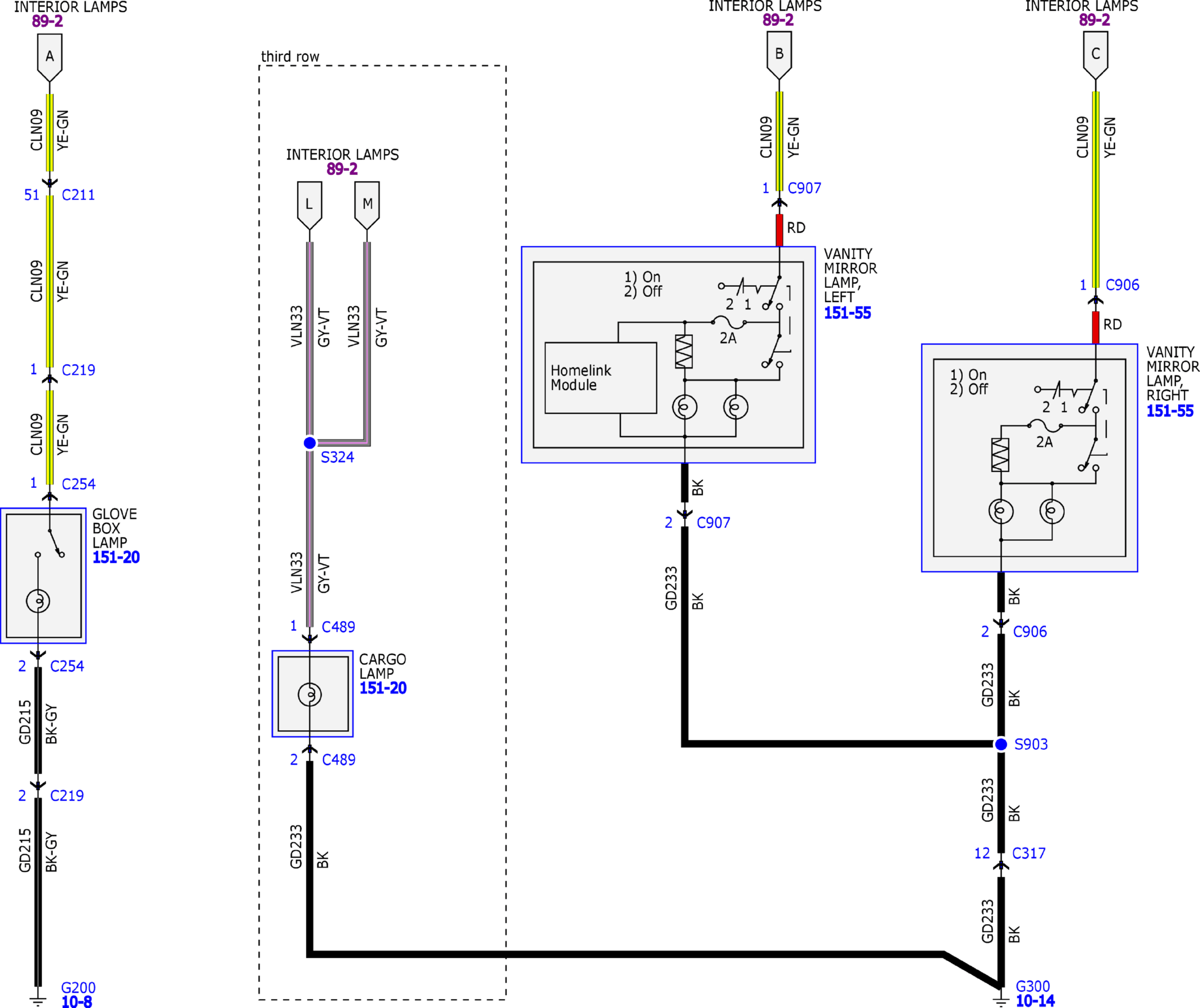

Fig 4: Interior Lamps System Wiring Diagrams (4 Of 9)
Courtesy of FORD MOTOR COMPANY

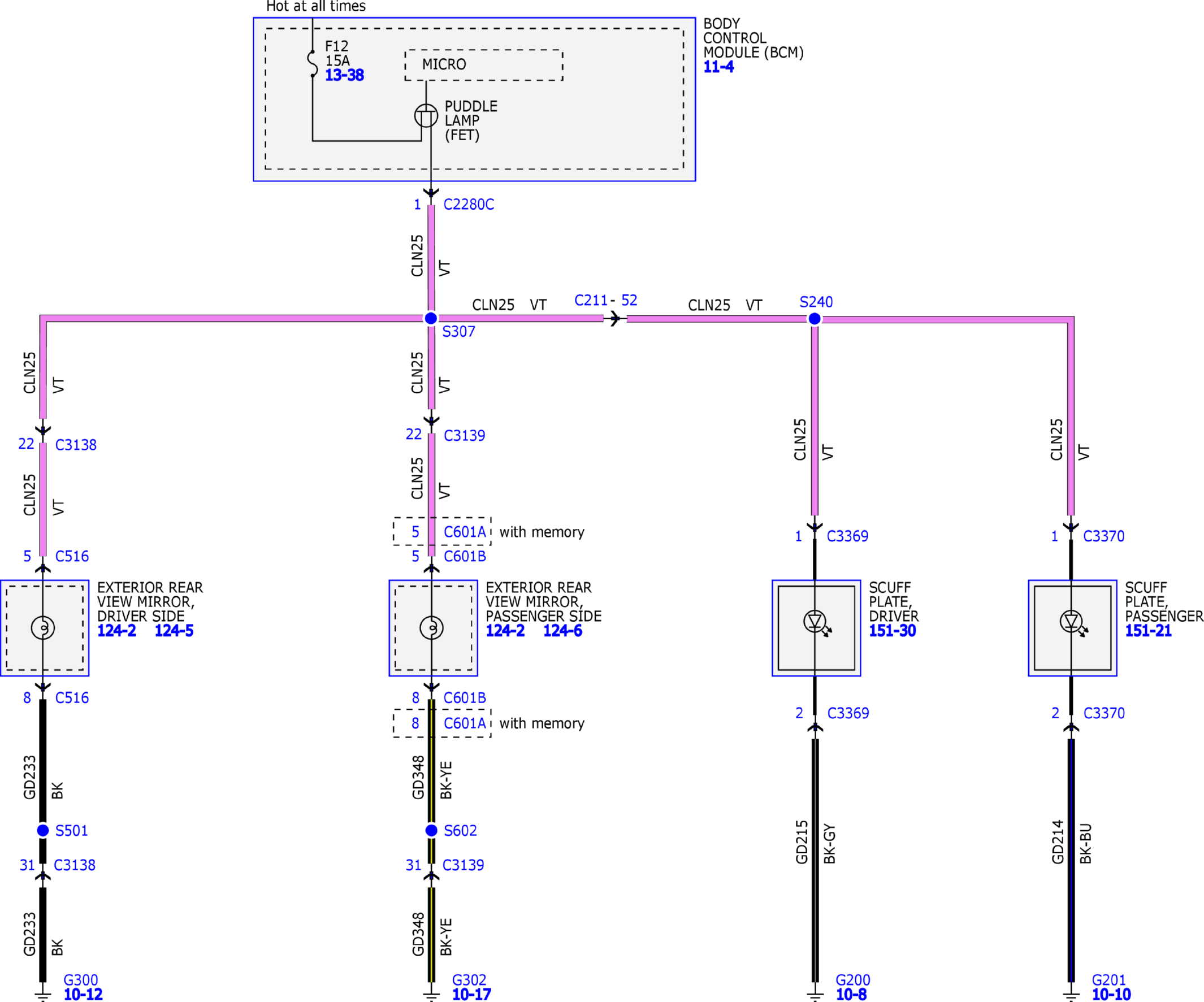

Fig 5: Interior Lamps System Wiring Diagrams (5 Of 9)
Courtesy of FORD MOTOR COMPANY

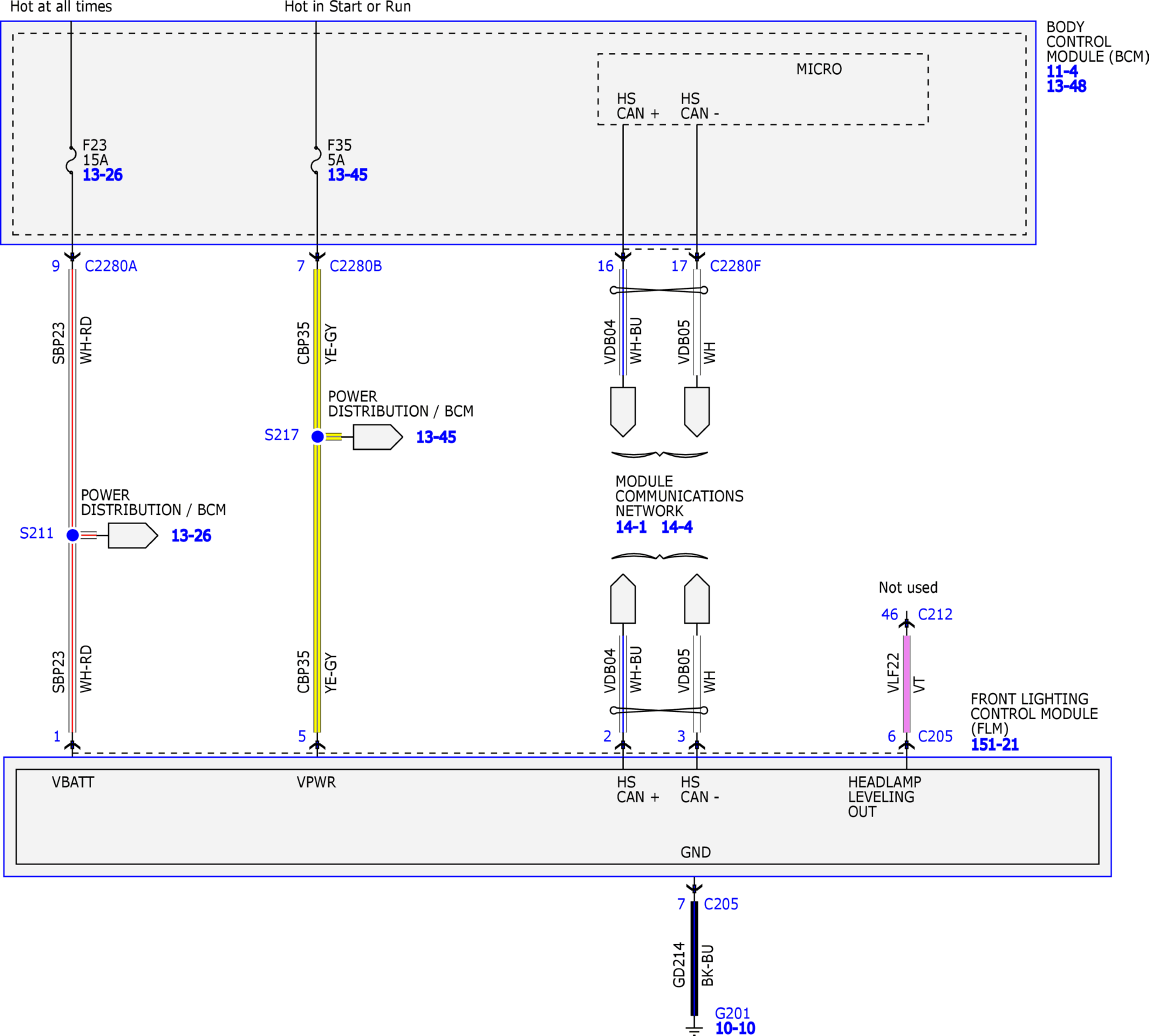

Fig 6: Interior Lamps System Wiring Diagrams (6 Of 9)
Courtesy of FORD MOTOR COMPANY

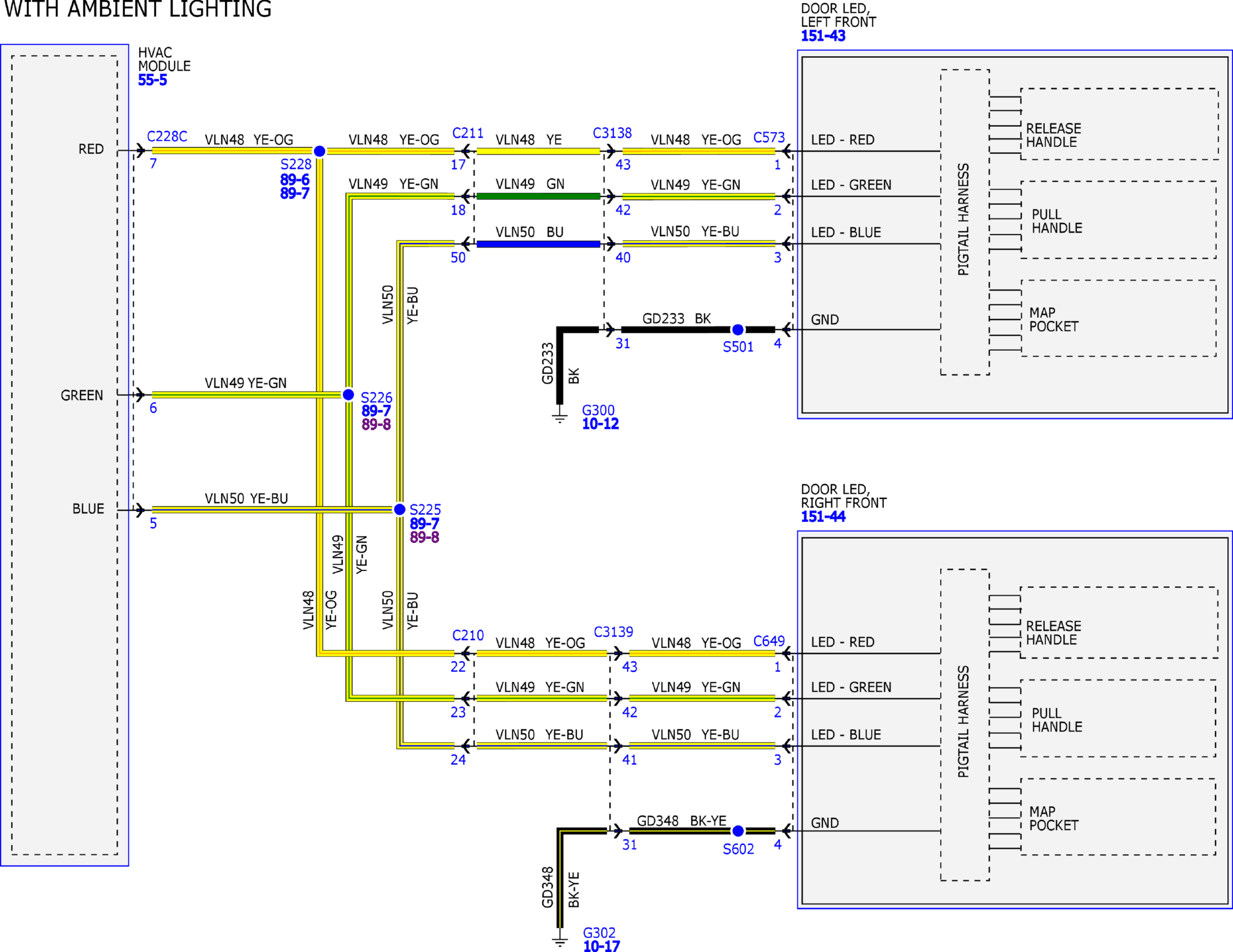

Fig 7: Interior Lamps System Wiring Diagrams (7 Of 9)
Courtesy of FORD MOTOR COMPANY

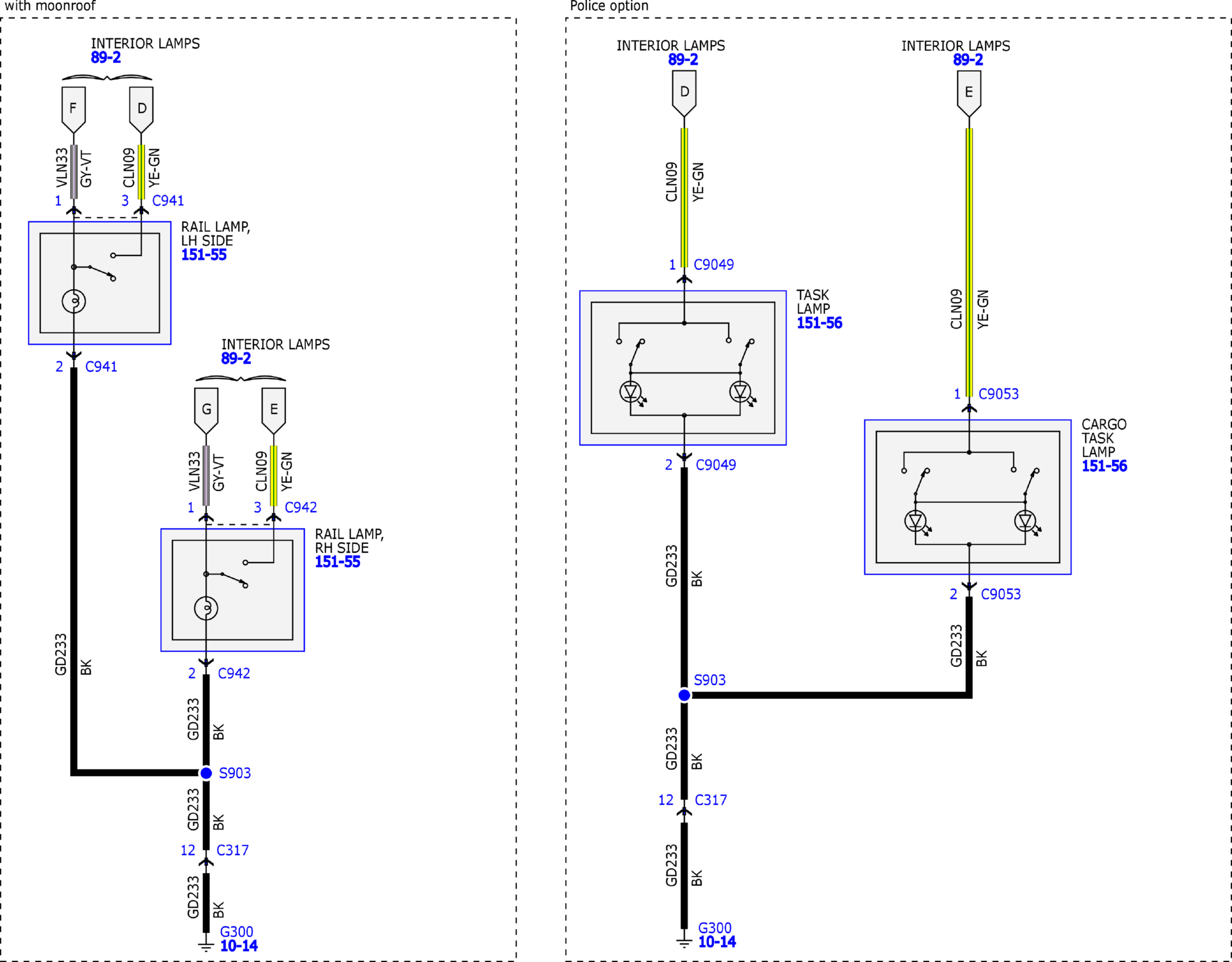

Fig 8: Interior Lamps System Wiring Diagrams (8 Of 9)
Courtesy of FORD MOTOR COMPANY
Fig 9: Interior Lamps System Wiring Diagrams (9 Of 9)
