WARNING: This page is about a different car, the 2015 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

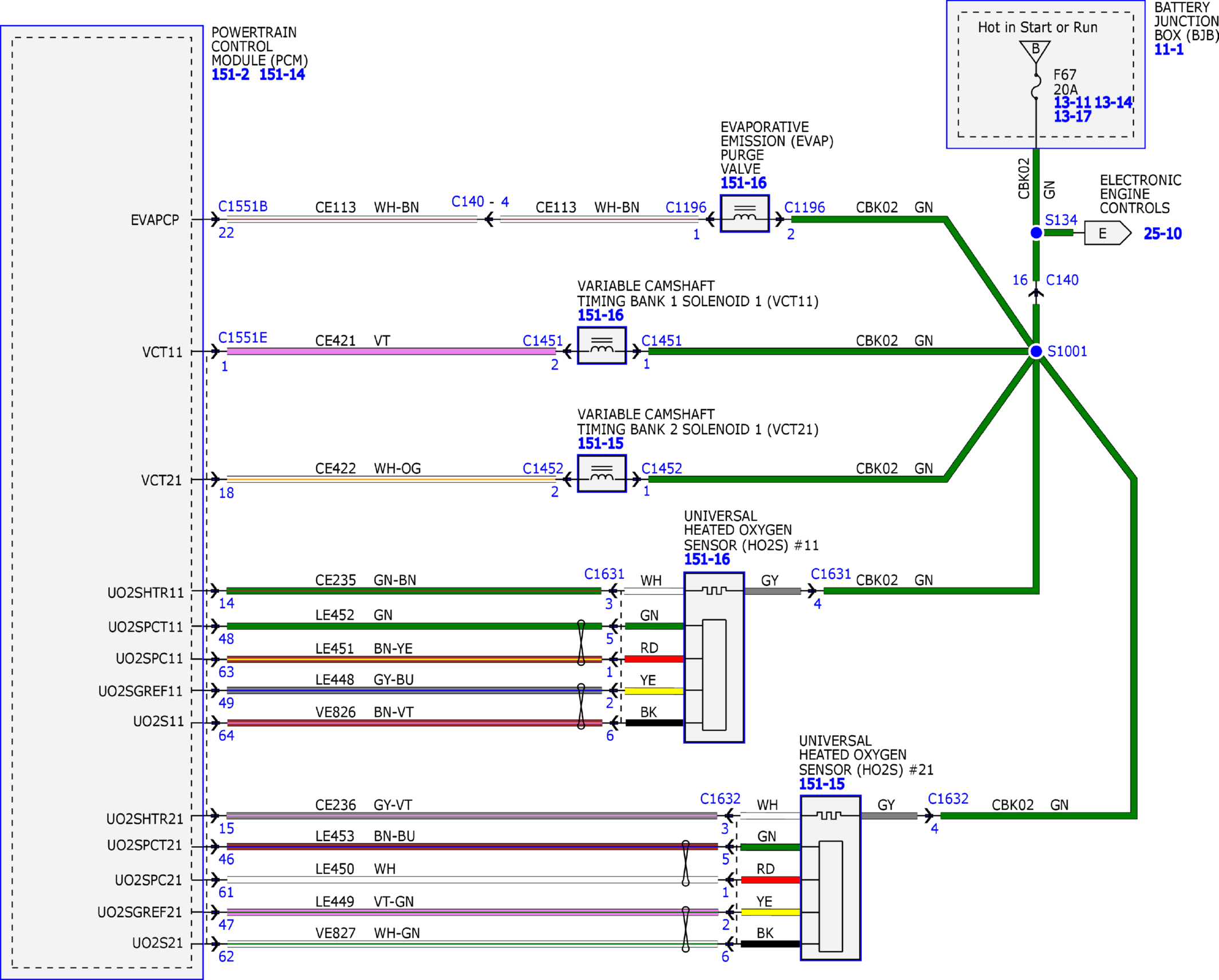

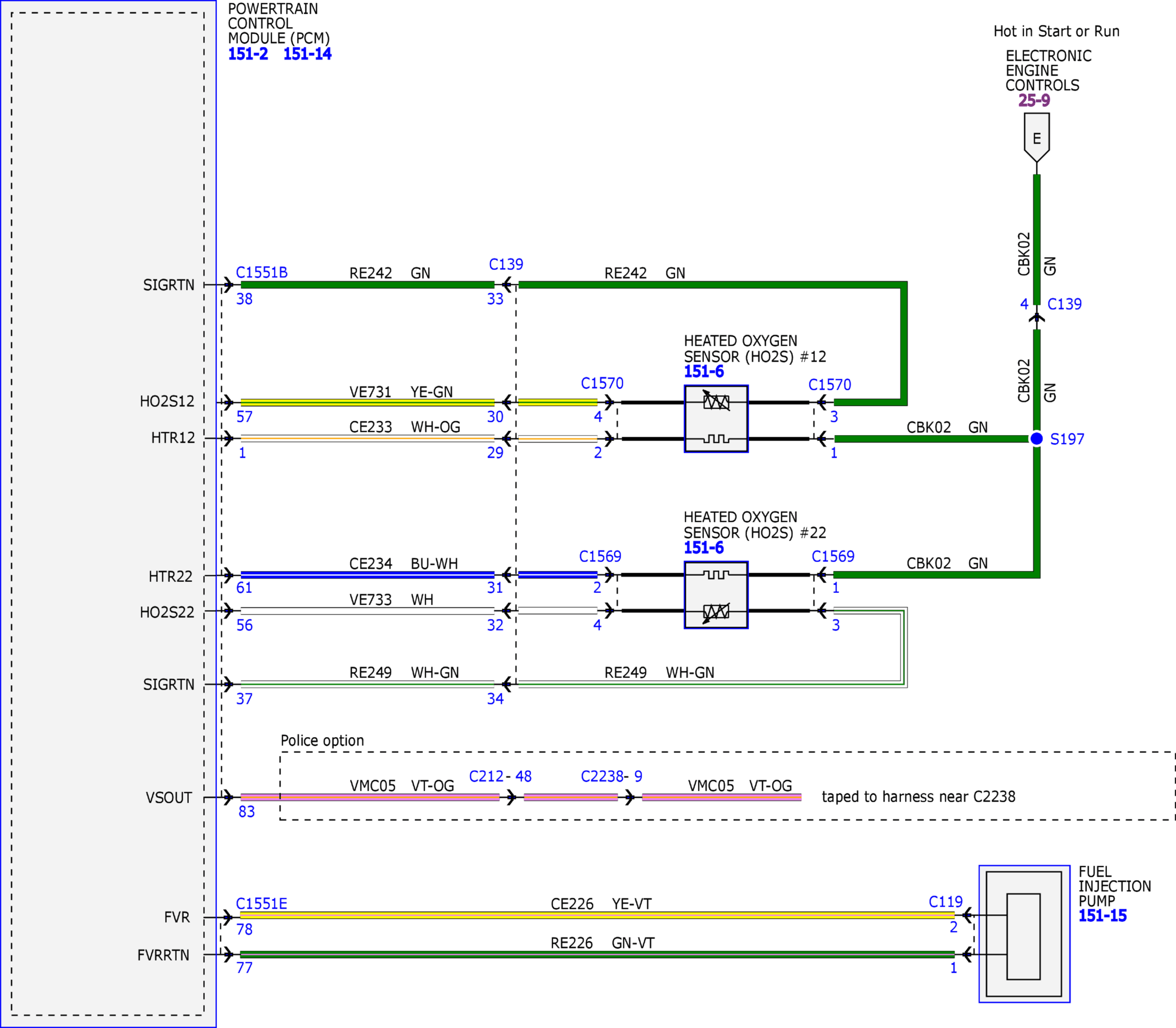

Fig 1: Electronic Engine Controls System (3.5L GTDI) Wiring Diagrams (1 Of 15)
Courtesy of FORD MOTOR COMPANY

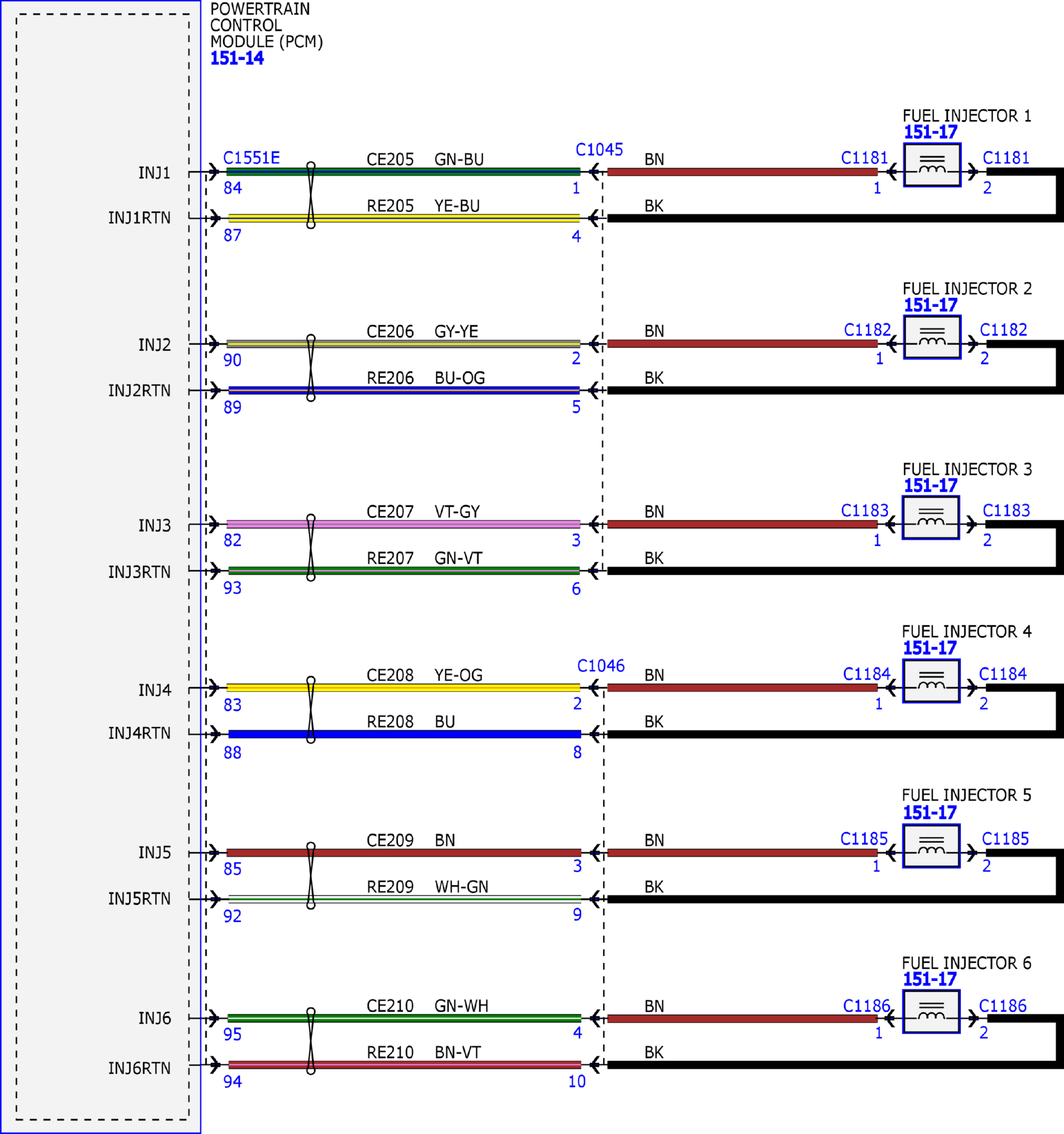

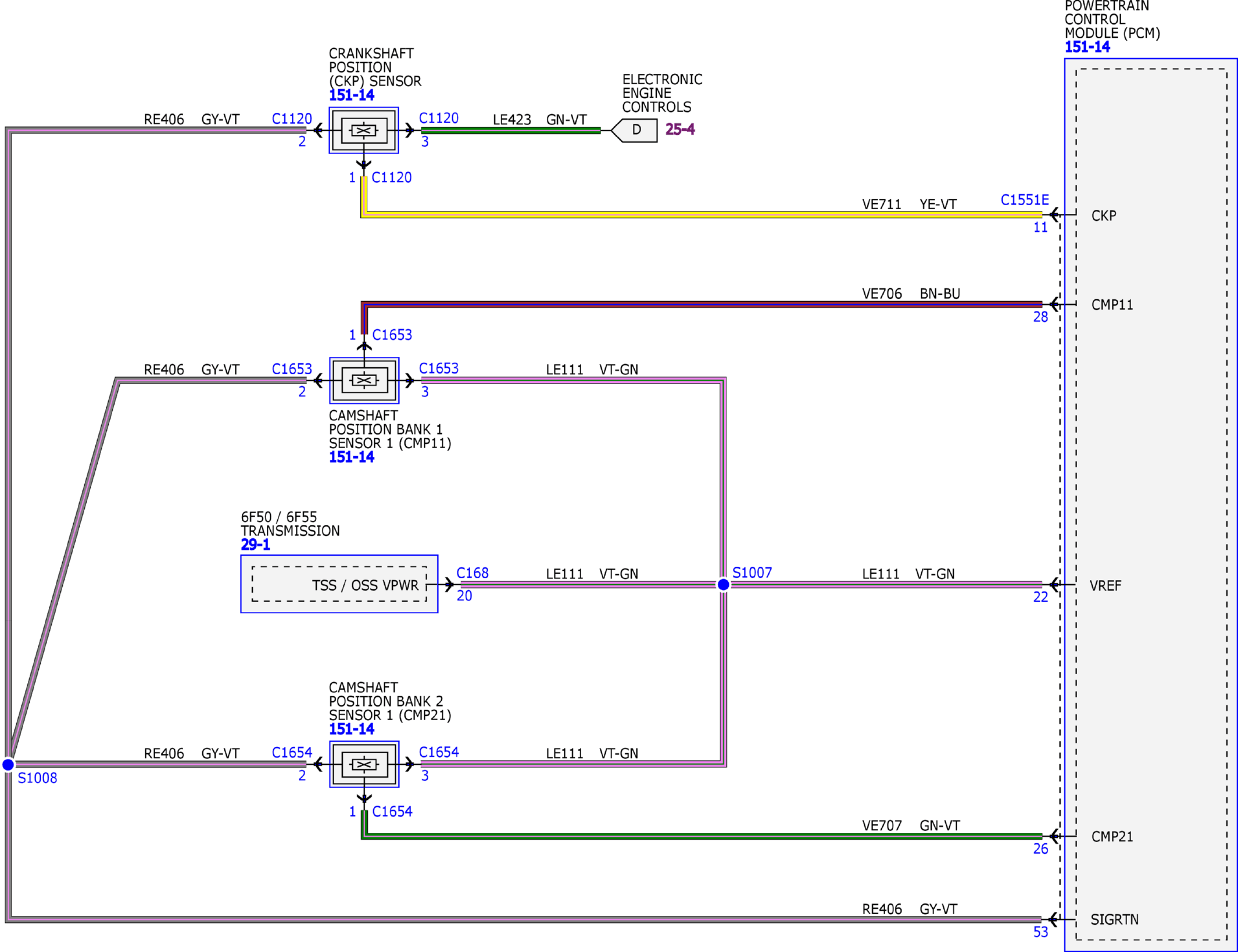

Fig 2: Electronic Engine Controls System (3.5L GTDI) Wiring Diagrams (2 Of 15)
Courtesy of FORD MOTOR COMPANY

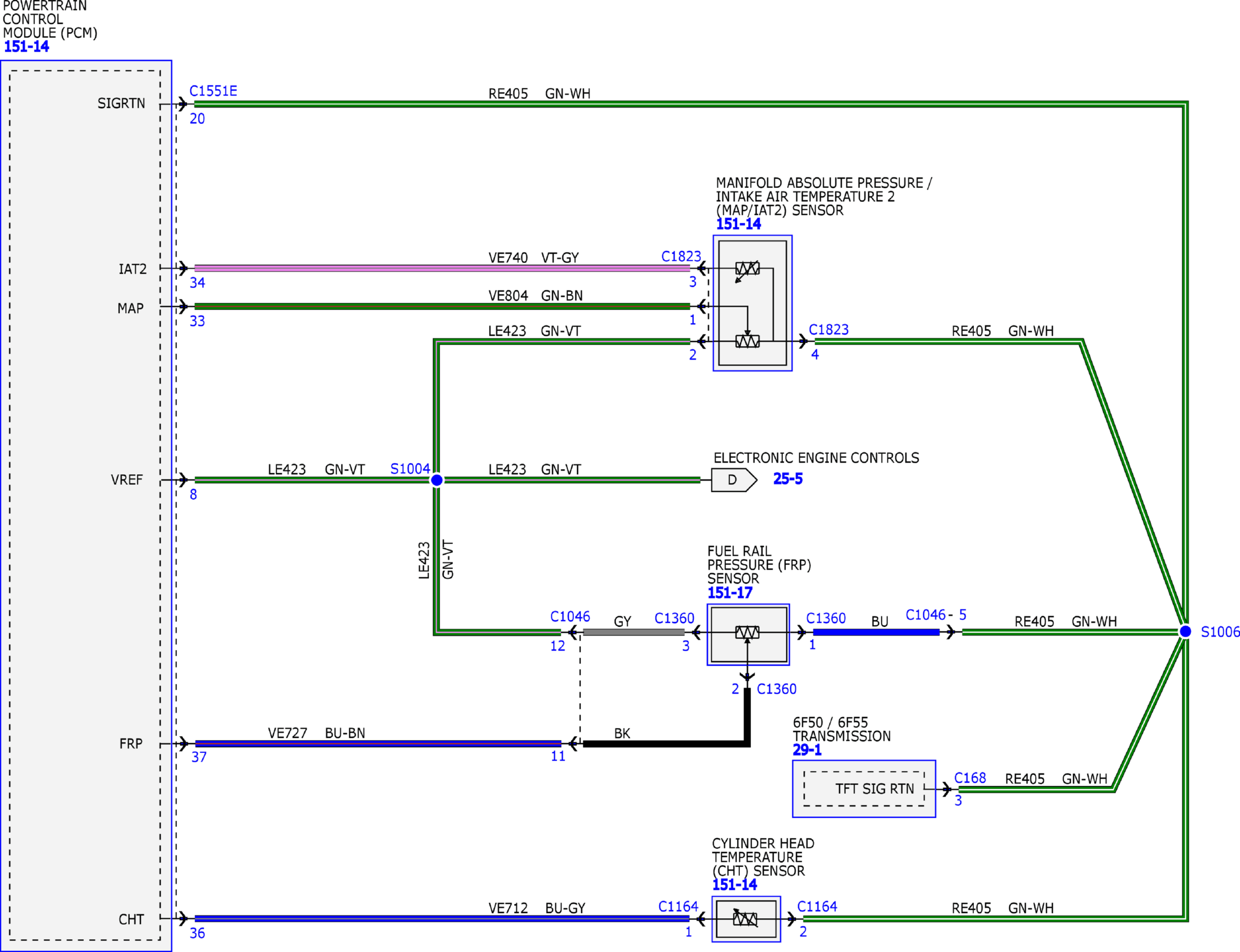

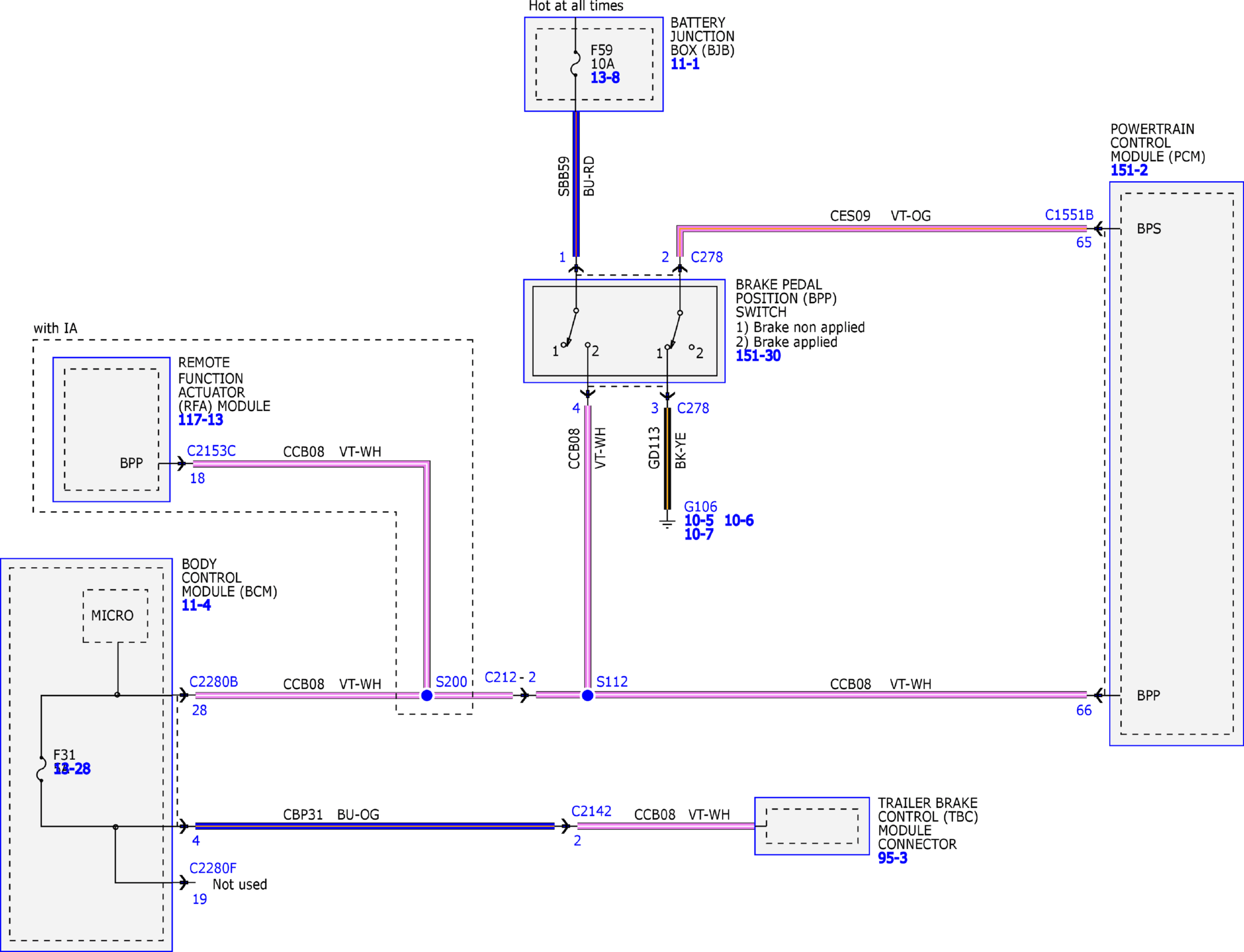

Fig 3: Electronic Engine Controls System (3.5L GTDI) Wiring Diagrams (3 Of 15)
Courtesy of FORD MOTOR COMPANY

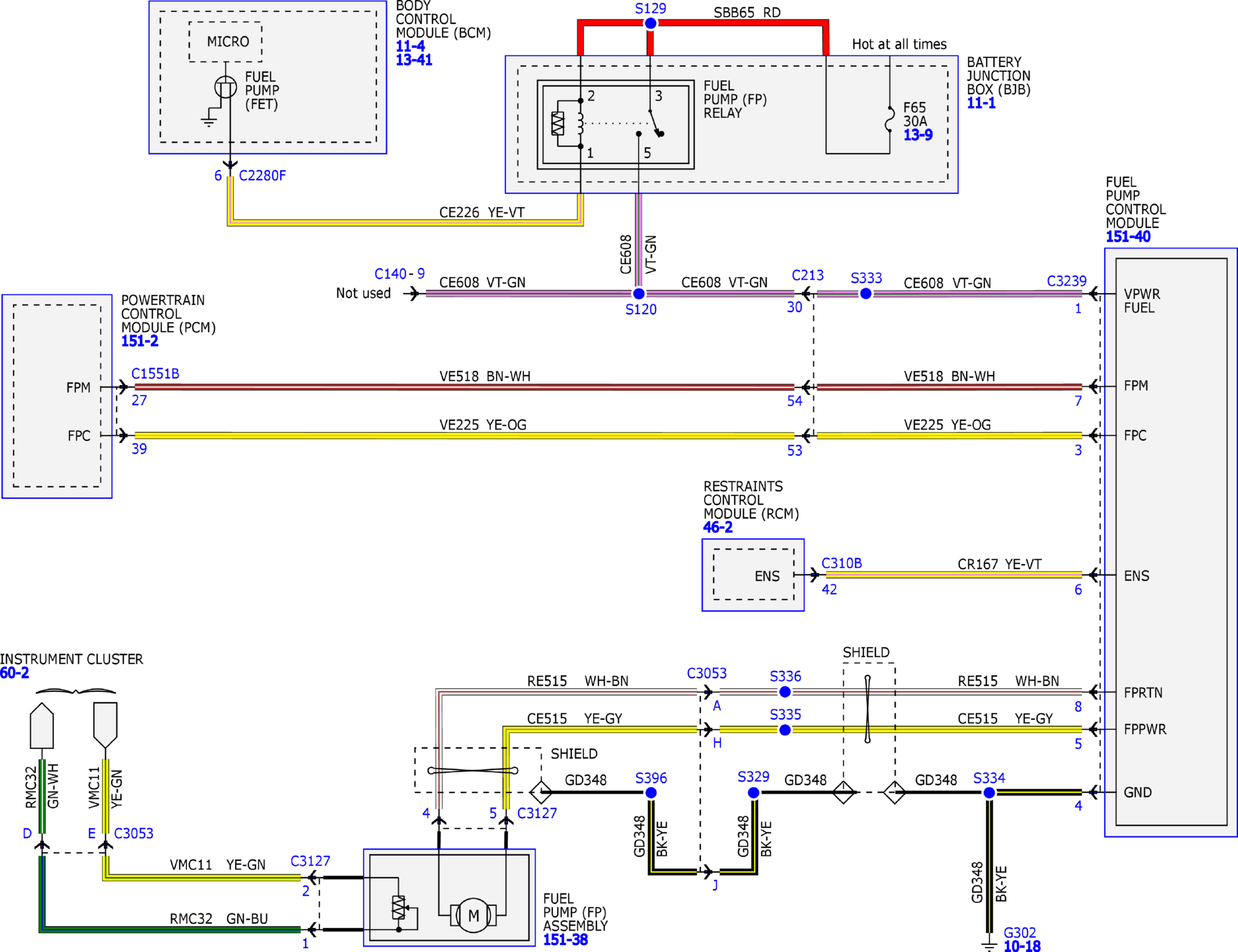

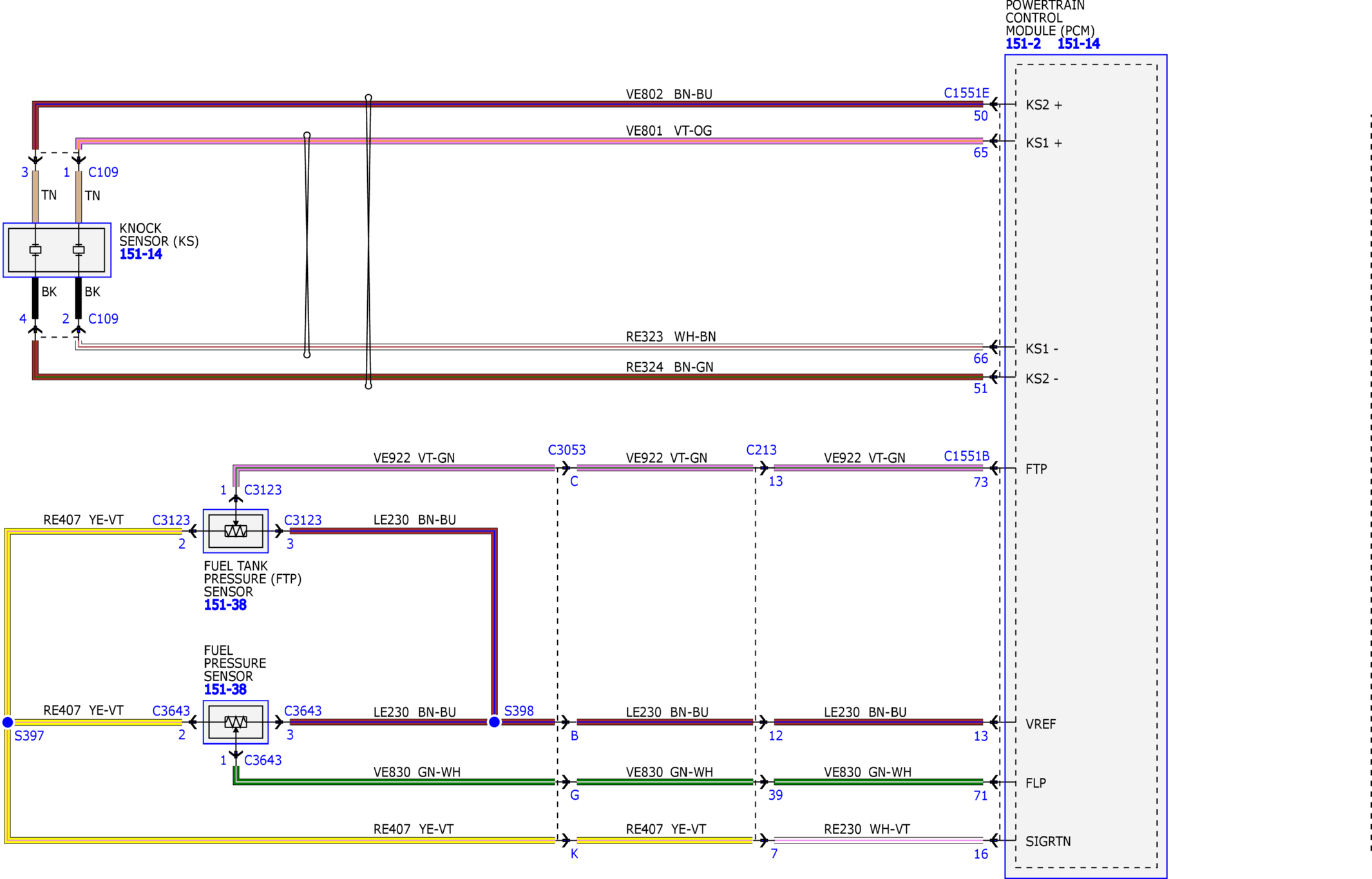

Fig 4: Electronic Engine Controls System (3.5L GTDI) Wiring Diagrams (4 Of 15)
Courtesy of FORD MOTOR COMPANY

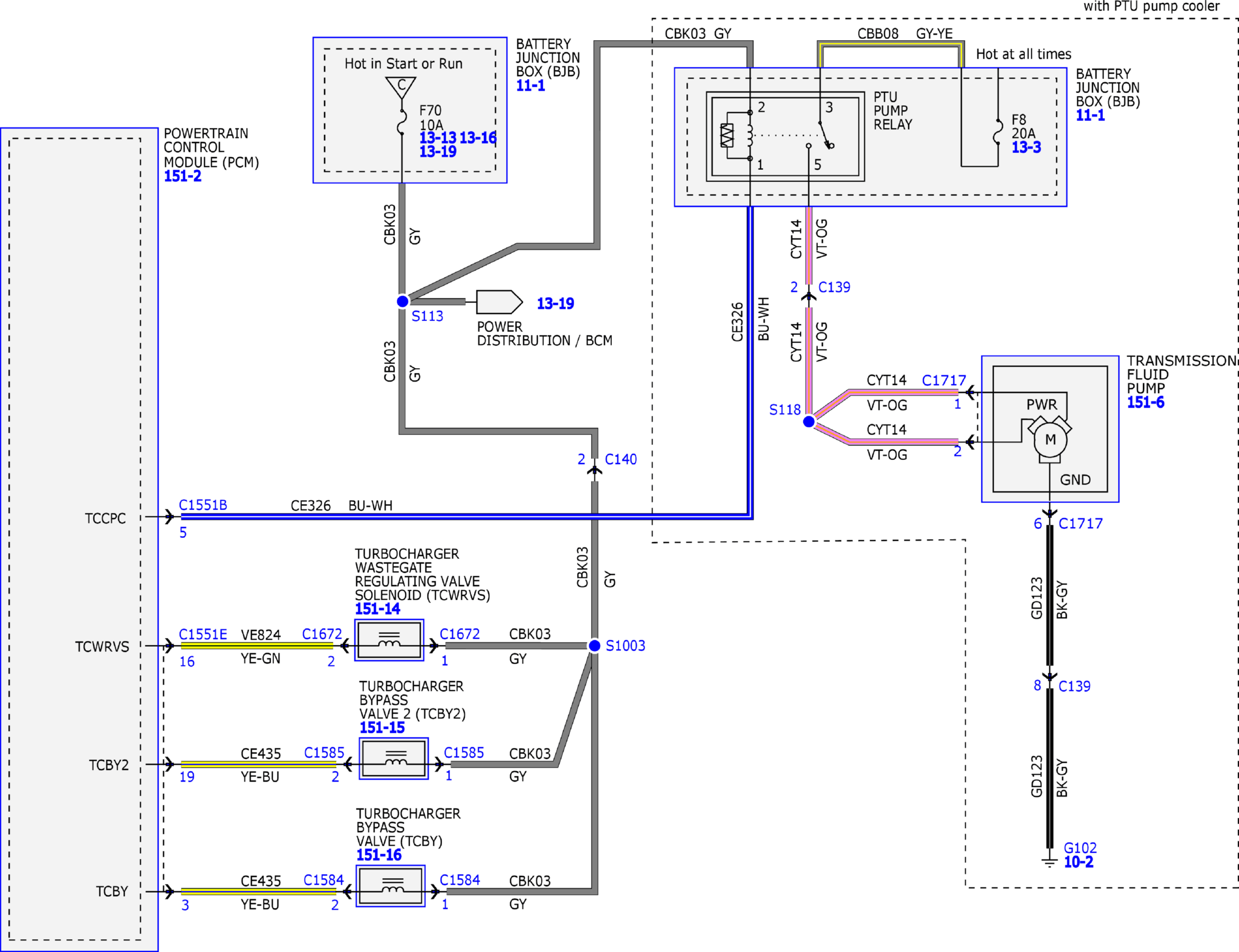

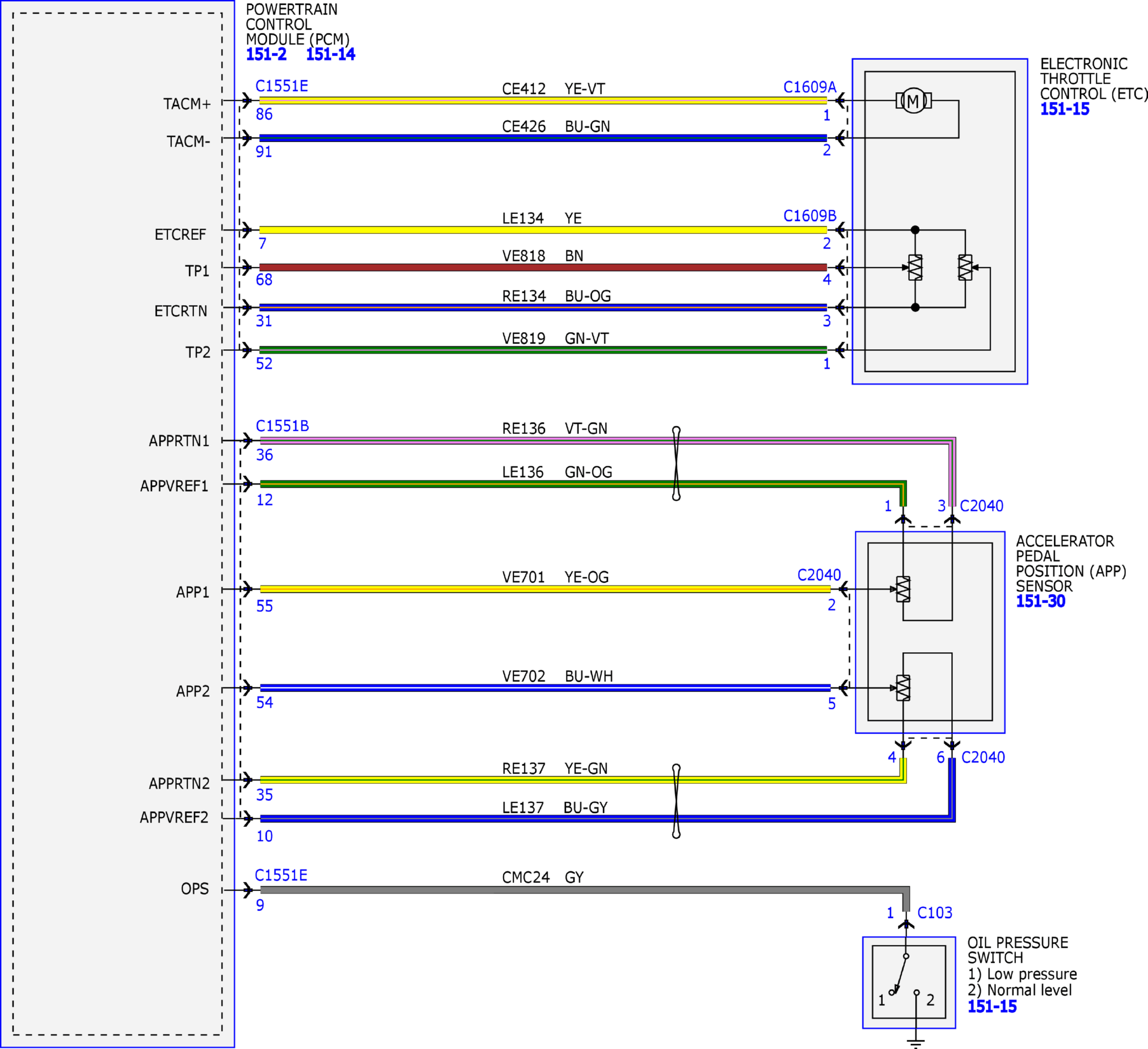

Fig 5: Electronic Engine Controls System (3.5L GTDI) Wiring Diagrams (5 Of 15)
Courtesy of FORD MOTOR COMPANY

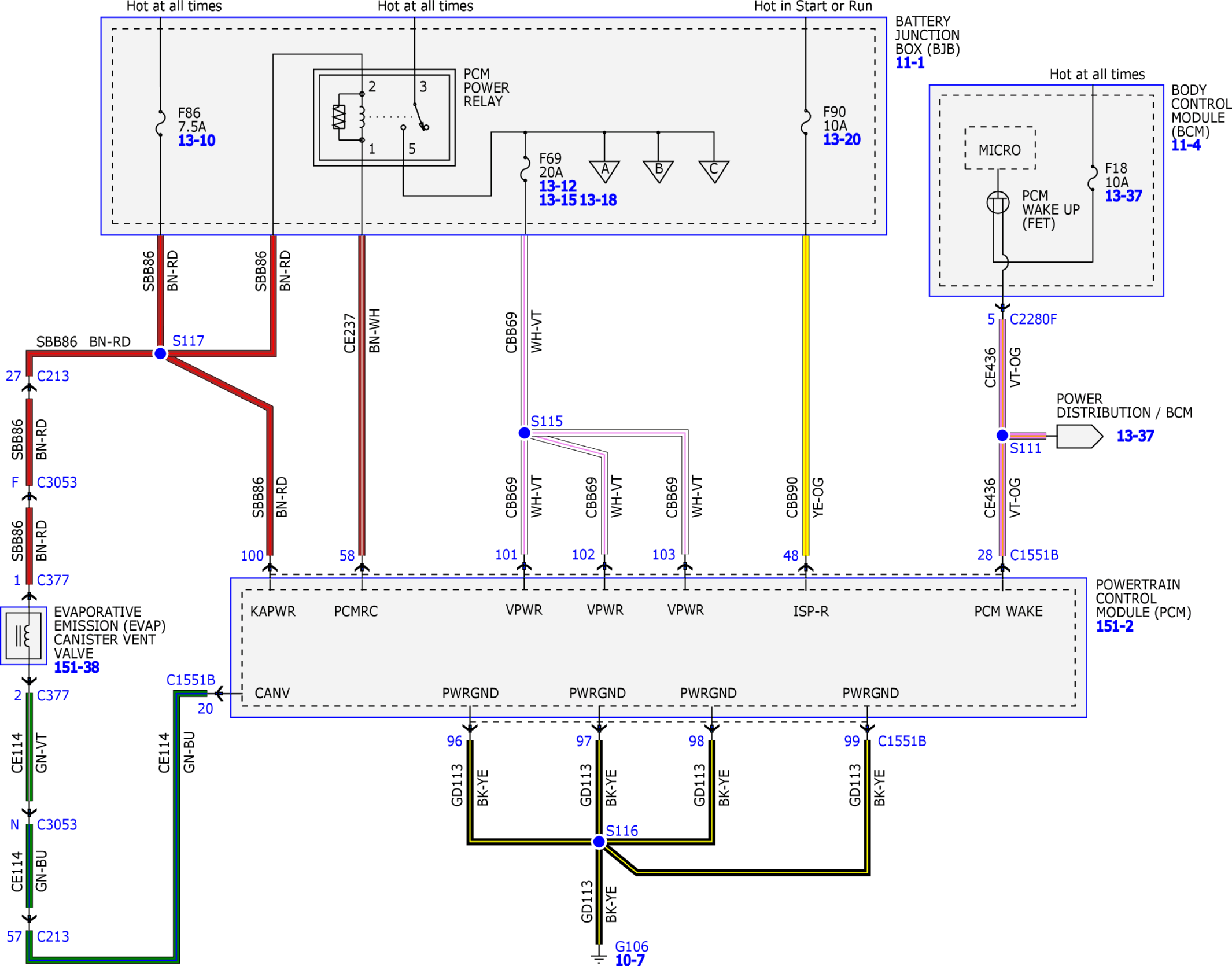

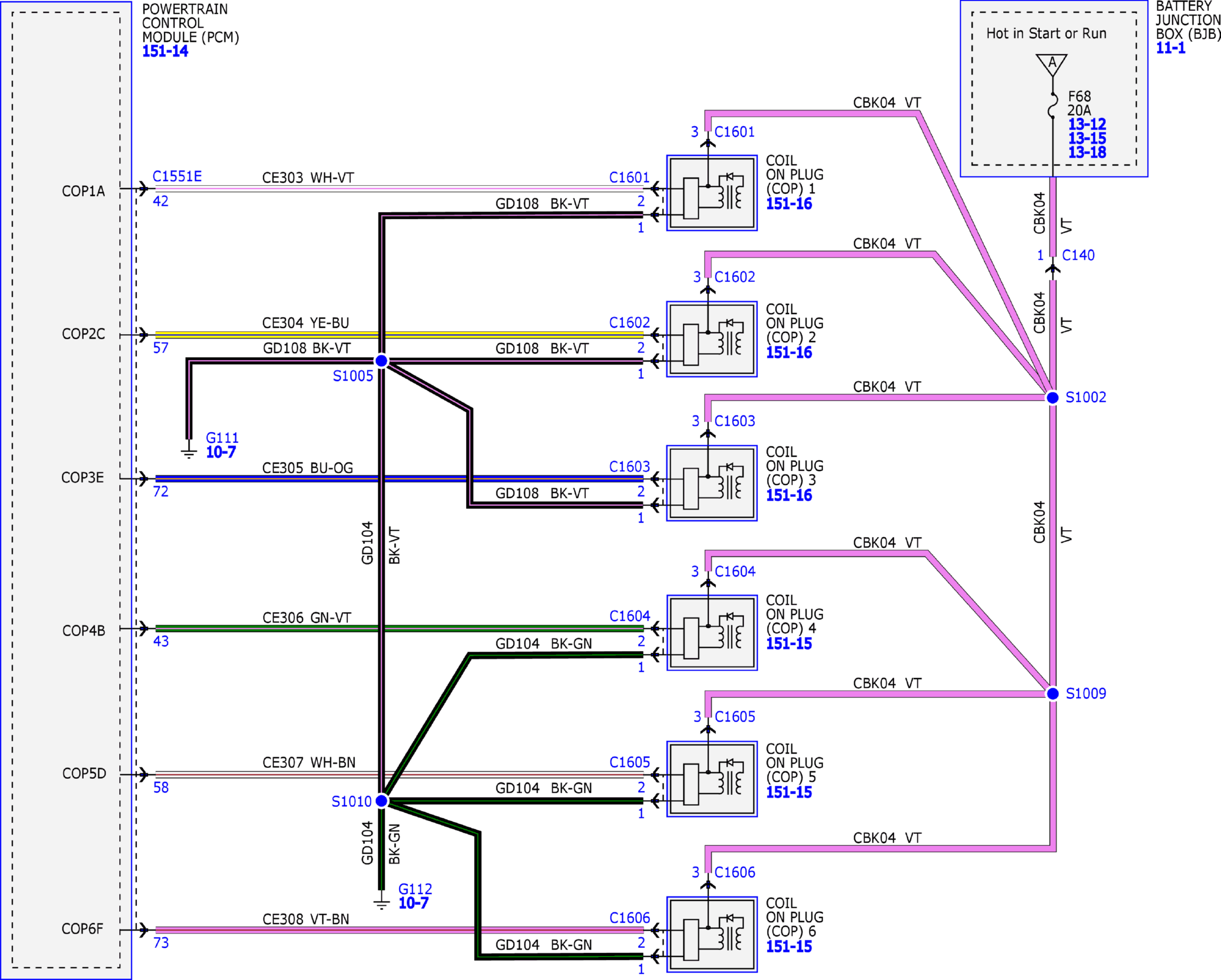

Fig 6: Electronic Engine Controls System (3.5L GTDI) Wiring Diagrams (6 Of 15)
Courtesy of FORD MOTOR COMPANY

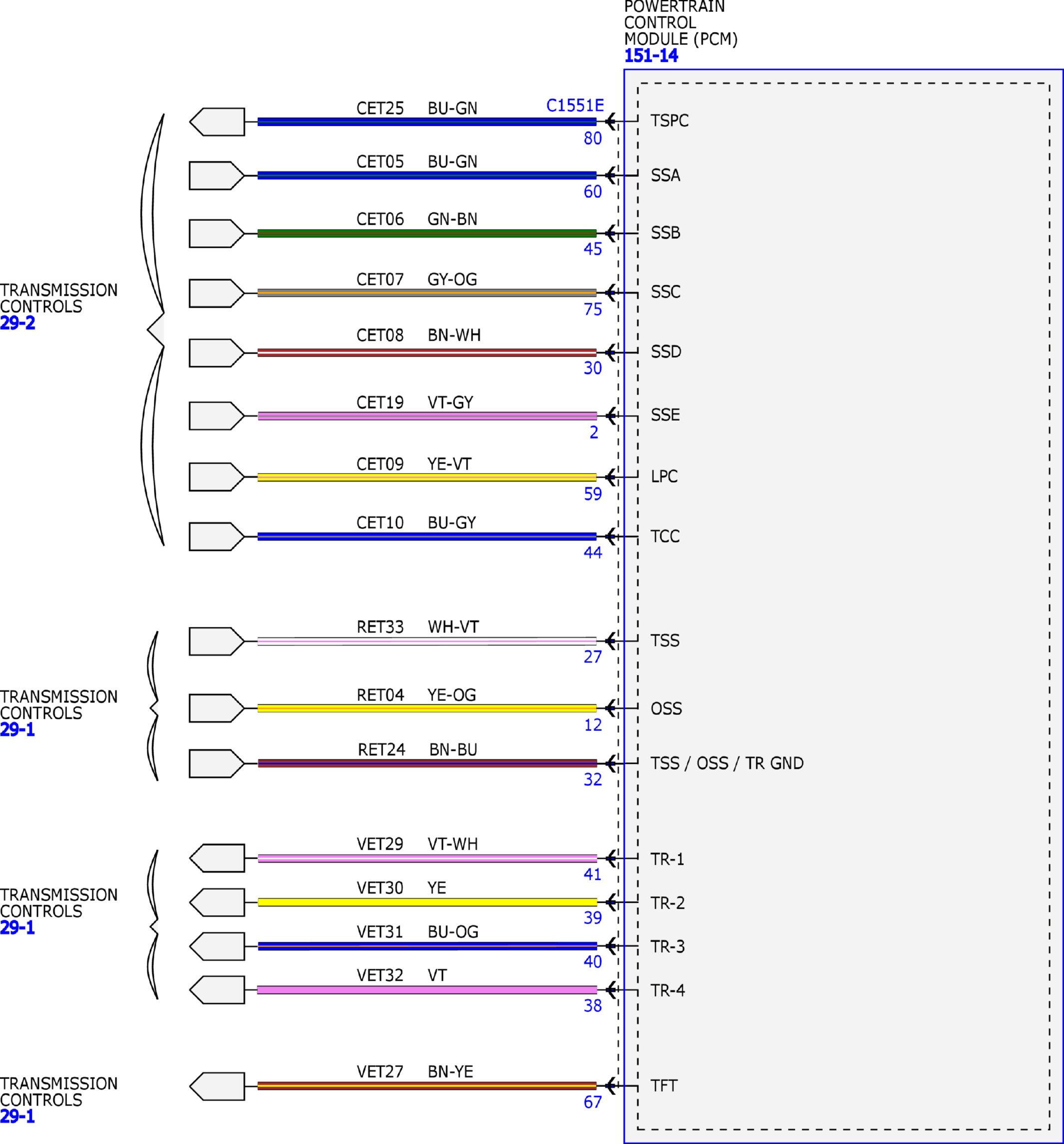

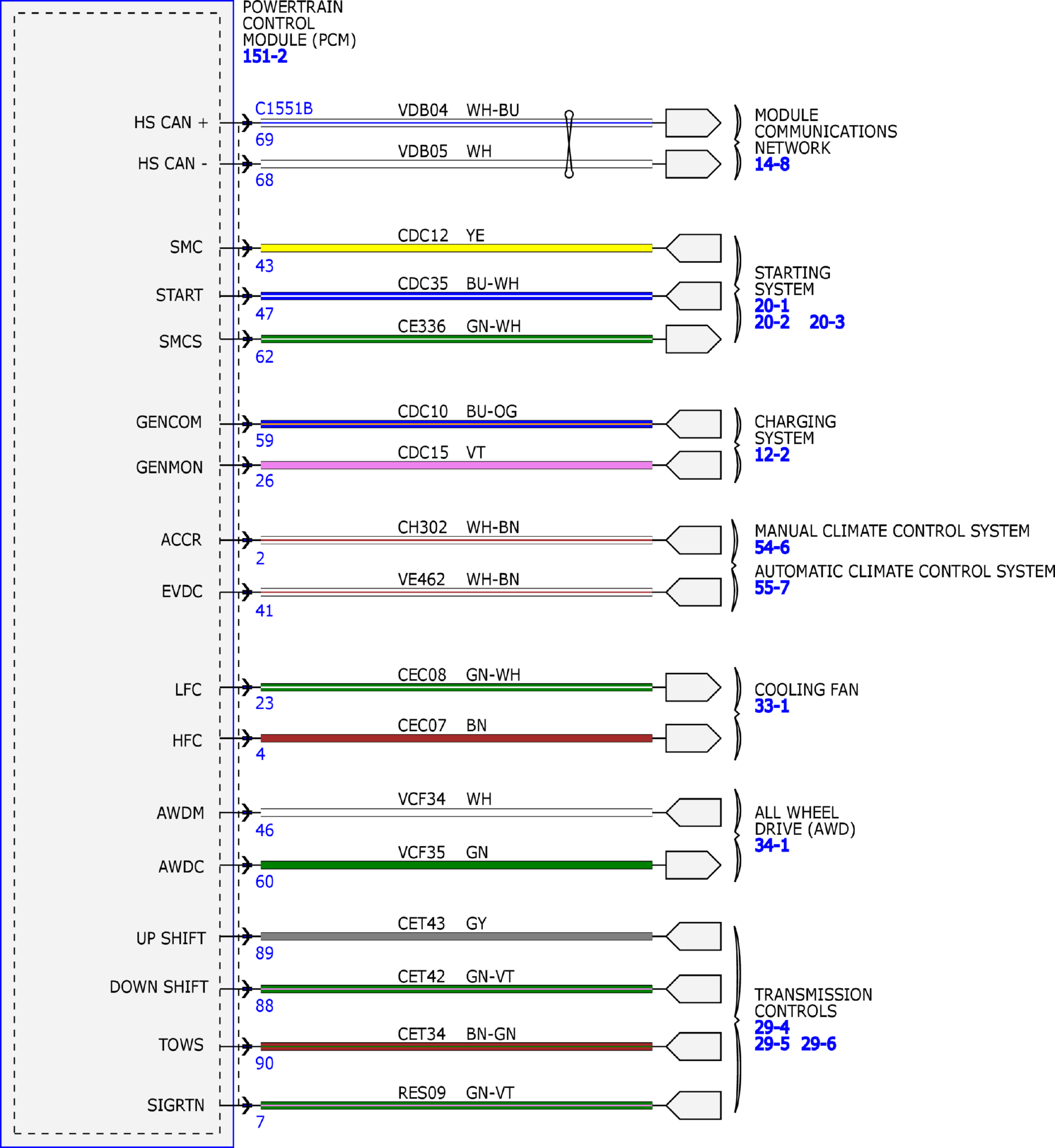

Fig 7: Electronic Engine Controls System (3.5L GTDI) Wiring Diagrams (7 Of 15)
Courtesy of FORD MOTOR COMPANY

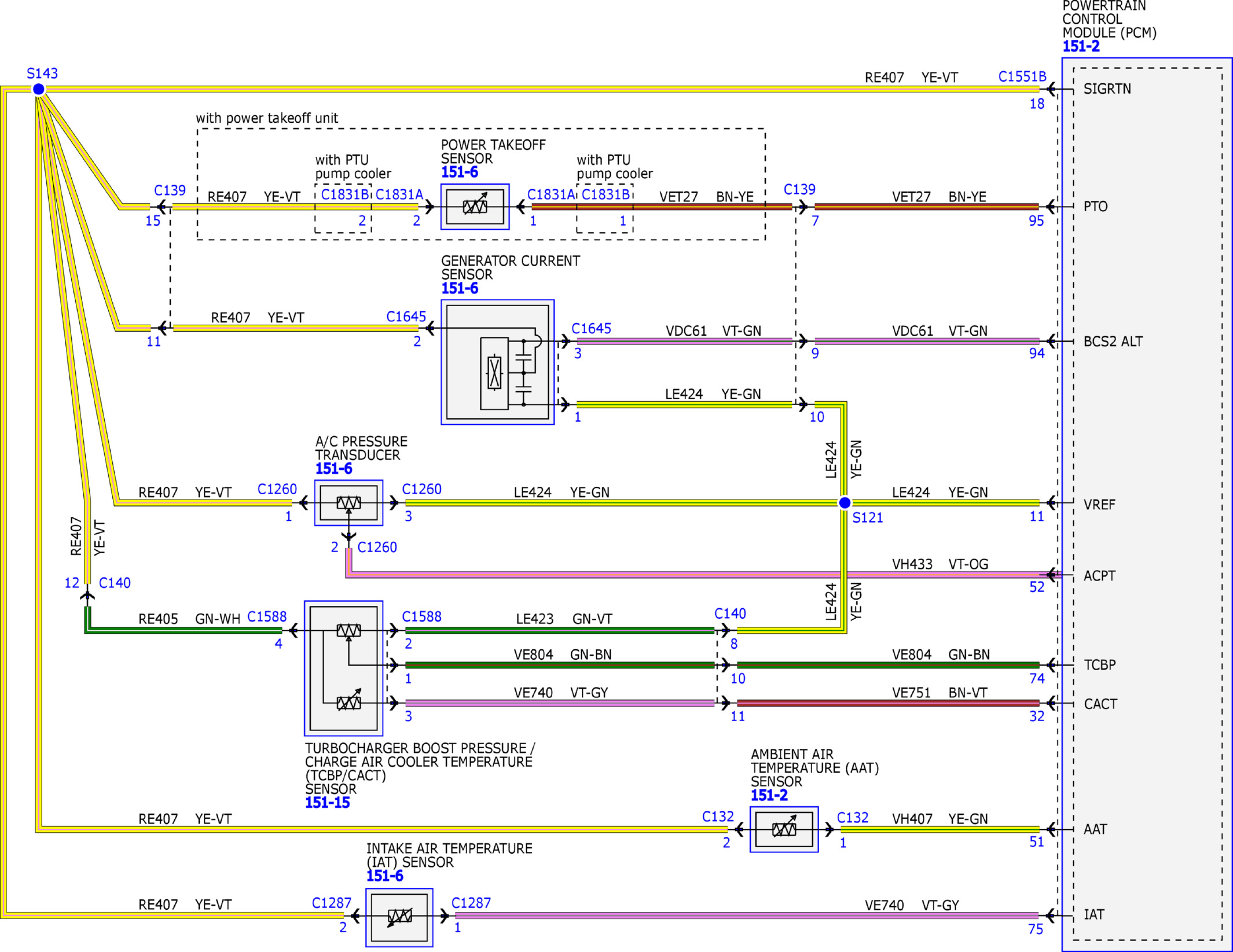

Fig 8: Electronic Engine Controls System (3.5L GTDI) Wiring Diagrams (8 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 9: Electronic Engine Controls System (3.5L GTDI) Wiring Diagrams (9 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 10: Electronic Engine Controls System (3.5L GTDI) Wiring Diagrams (10 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 11: Electronic Engine Controls System (3.5L GTDI) Wiring Diagrams (11 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 12: Electronic Engine Controls System (3.5L GTDI) Wiring Diagrams (12 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 13: Electronic Engine Controls System (3.5L GTDI) Wiring Diagrams (13 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 14: Electronic Engine Controls System (3.5L GTDI) Wiring Diagrams (14 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 15: Electronic Engine Controls System (3.5L GTDI) Wiring Diagrams (15 Of 15)
