Cooling Fan

WARNING: This page is about a different car, the 2015 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

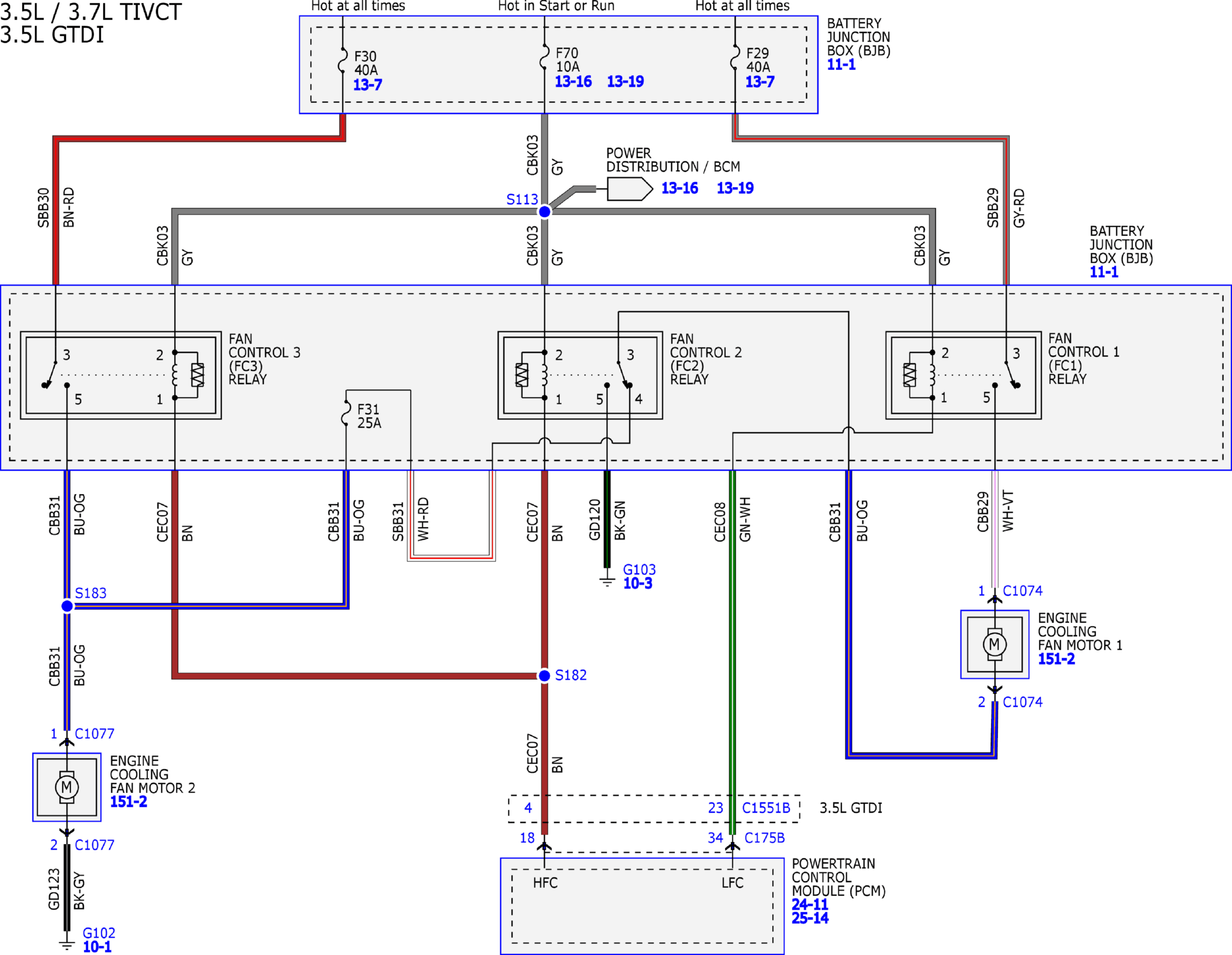

Fig 1: Cooling Fan Wiring Diagrams (1 Of 2)
GFDW12370Courtesy of FORD MOTOR COMPANY

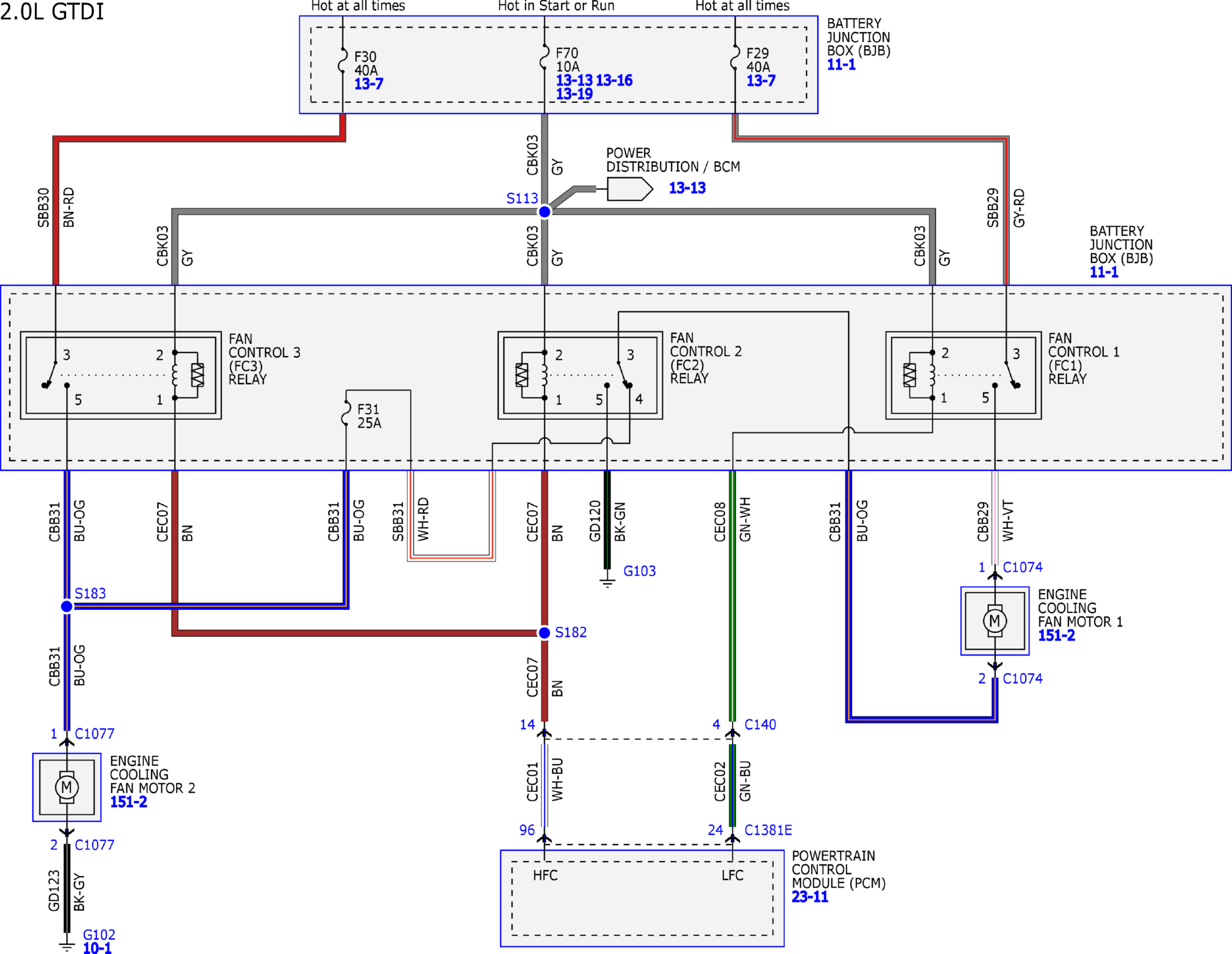

Fig 2: Cooling Fan Wiring Diagrams (2 Of 2)
GFDW12371Courtesy of FORD MOTOR COMPANY
