Door Lock Control Switch: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

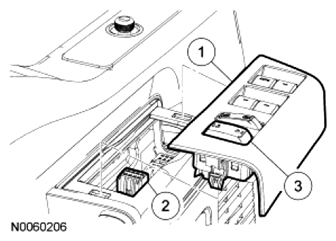

Left front door shown in illustration, right front door similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
14524/14525 |
Window and door lock control switch moulding (RH/LH) |
| 2 |
- |
Door lock control switch electrical connector (part of 14630/14631 (RH/LH)) |
| 3 |
14028 |
Door lock control switch |
