Bumper - Rear: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

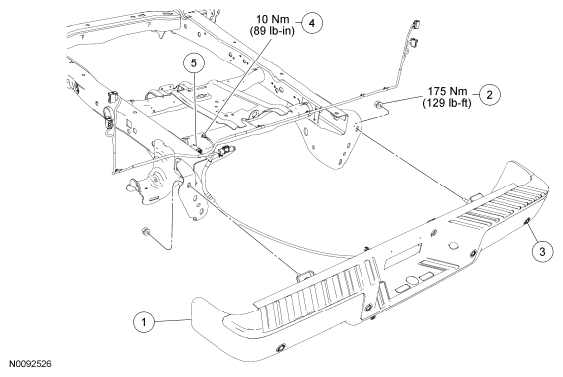

| Item | Part Number | Description |
|---|---|---|
| 1 | 17775 | Rear bumper |
| 2 | W708634-S | Rear bumper nut (4 required) |
| 3 | 11523 | Rear parking aid sensor (if equipped) |
| 4 | W701082 | Ground bolt |
| 5 | - | Rear electrical harness connector |
