Disassembly and Assembly

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. To remove individual parts, only carry out the listed steps as identified in the following table.
    SEAT CUSHION COMPONENTS - REMOVAL STEPS

    Part Steps
    Cushion Assembly 2-6
    Cushion Cover 2-6, 8 and 9
    Cushion Disassembly and Assembly 2-15
    Latch 2-7
    Power Point 11 and 12
  2. Remove the seat. For additional information, refer to SEAT - FRONT, 20 PERCENT .
  3. Remove the seat backrest. For additional information, refer to SEAT BACKREST - FRONT, 20 PERCENT .
  4. Remove the rear trim panel.
    1. Disengage the 2 pin-type retainers.
    2. Slide up and remove the rear trim panel.
  5. Remove the 2 cushion pivot bolts and remove the cushion assembly.
    • At assembly, do not tighten these 2 bolts to specification until after the backrest has been installed.
      • To install, tighten to 35 Nm (26 lb-ft).
  6. Remove the LH and RH inboard covers from the cushion assembly.
  7. Remove 3 latch-to-support assembly bolts and the latch.
    • To install, tighten, to 45 Nm (33 lb-ft).
  8. If equipped, remove the 2 screws and the storage bin release handle.
  9. Disengage the cushion cover J-clip, the hook and loop strips and remove the cushion cover.
  10. Remove the cushion foam pad.
  11. NOTE: Engagement area for assembly shown in illustration.
  12. If equipped, remove the 2 cushion storage bin screws, disconnect the power point and remove the cushion storage bin.
    • At assembly, make sure to engage the groove at the rear of the storage bin to the support assembly tongue.
    • To install, tighten to 5 Nm (44 lb-in).

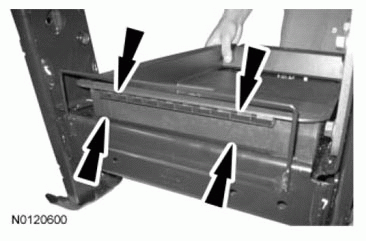

      Fig 1: Removing Cushion Storage Bin
      G07485942Courtesy of FORD MOTOR CO.
  13. If equipped, disengage the 2 tabs (1 shown in illustration) and push the power point out.
    Fig 2: Locating Power Point Tabs
    G07485943Courtesy of FORD MOTOR CO.
  14. If equipped, remove the 2 lock cylinder screws and the lock cylinder.
    • To install, tighten to 5 Nm (44 lb-in).
  15. If equipped, detach the pin-type retainers and remove the wire harness.
  16. To assemble, reverse the disassembly procedure.
