Removal and Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger air bag module. For additional in formation, refer to PASSENGER AIRBAG .

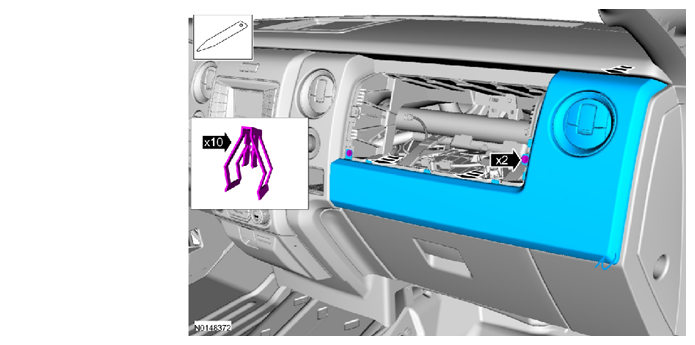

  2. Remove the 2 RH instrument panel finish panel screws and the RH instrument panel finish panel.
    • Pull the RH instrument panel finish panel toward the rear of the vehicle to release the retaining clips.
      G08344226
  3. To install, reverse the removal procedure.
    • Make sure to align the finish panel retaining clips to the adjacent retaining clip holes.
