Removal and Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

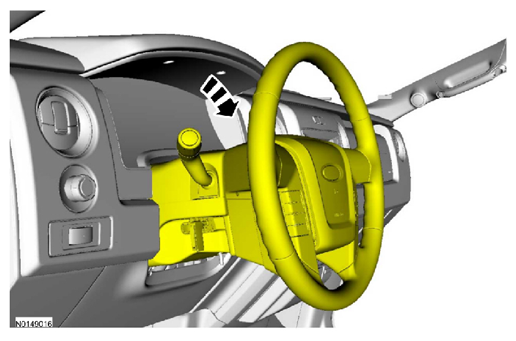

  1. Position the steering wheel downward.
    G08344223
  2. Remove the 2 instrument cluster finish panel screws and the instrument cluster finish panel.
    • Release the gap hider retainers
    • Pull the instrument cluster finish panel toward the rear of the vehicle to release the retaining clips.
      G07964106

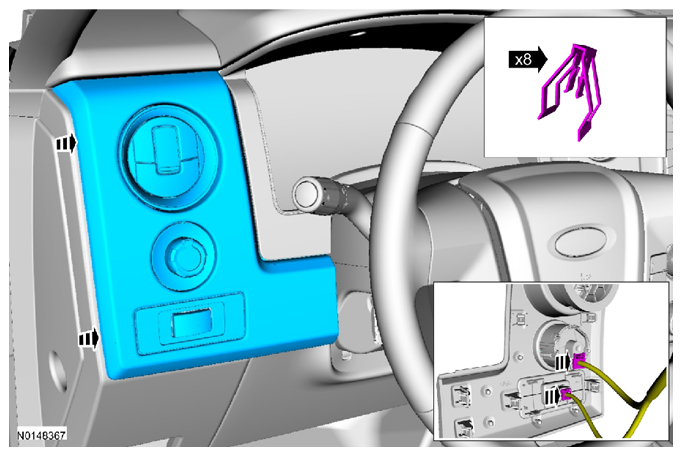

  3. Remove the LH instrument panel finish panel.
    • Pull the LH instrument panel finish panel toward the rear of the vehicle to release the retaining clips.
      • Disconnect the electrical connectors.
        G08344225
  4. To install, reverse the removal procedure.
