Seat Track Motor - Front: Removal

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Wear protective gloves when handling components or parts that have pointed or sharp edges. Failure to follow this instruction may result in serious personal injury.

NOTE: Typical driver seat shown, others similar.

Remove the seat. Refer to SEAT - FRONT .
If equipped.
If equipped.

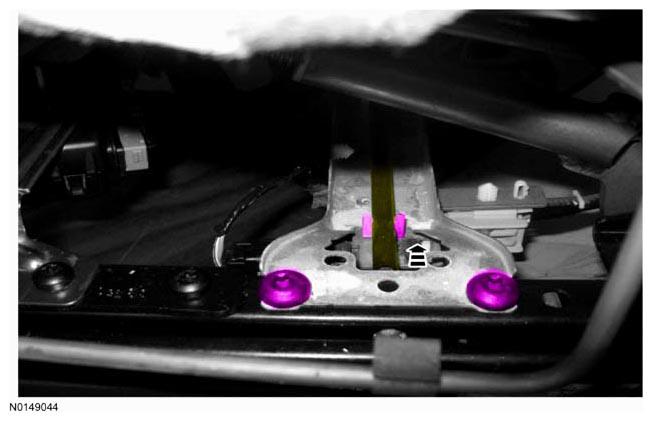

Remove the screws and side shield.
If equipped.

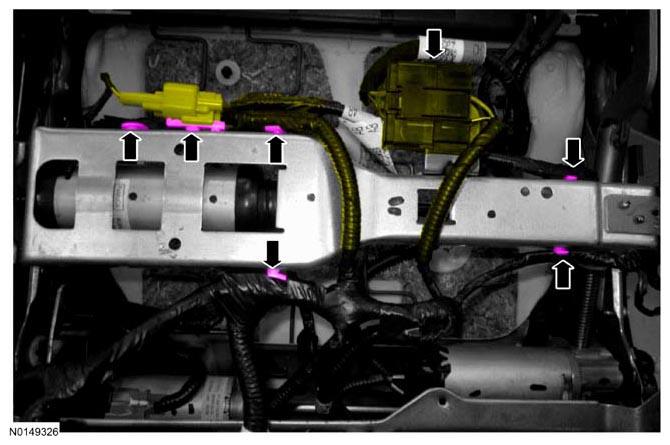

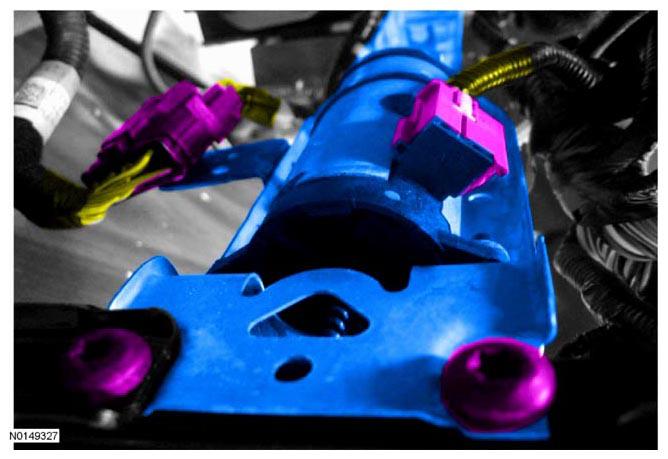

NOTE: Seat cushion wire harness take-outs will vary with seat option content. Note the wire harness routing, attachment points and connections to the horizontal seat motor and bracket for installation.
