Removal and Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The seat backrest latch is only accessible when the seat cushion is raised.

Release the backrest latch.
- From behind the backrest, pull up on the latch release and pull the backrest forward.
- Release the cushion latch and lower the cushion and backrest.
- To install, slide the striker pin up/down and align to the backrest latch.

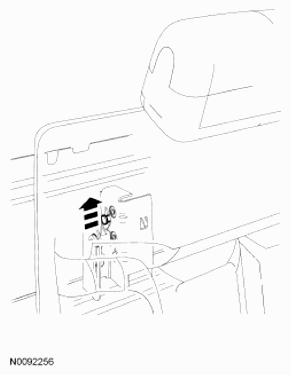

  Fig 1: Removing Backrest Latch
  Courtesy of FORD MOTOR CO.
Remove the bolt and striker.
- To install, tighten to 25 Nm (18 lb-ft).
To install, reverse the removal procedure.
- Make sure the backrest is fully latched when completed.
