Seat Latch Striker - Rear, Crew Cab: Notes

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: 40 percent shown, 60 percent similar.

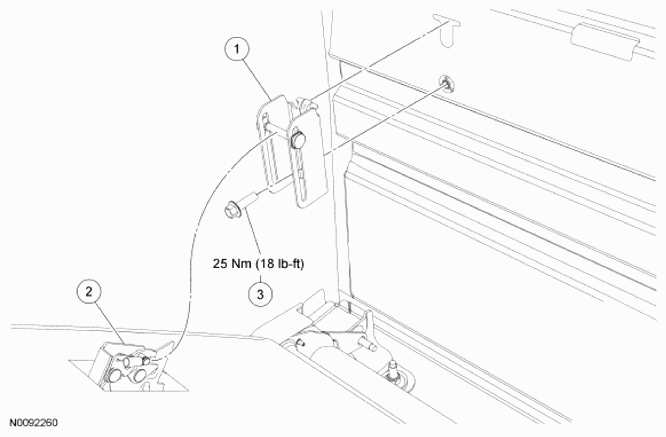

Fig 1: Exploded View Of Rear Seat Latch Striker With Torque Specifications (Crew Cab)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62452	Striker
2	61383	Backrest latch
3	W505284	Striker bolt
