Removal and Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For parts identification and location, refer to SEAT - EXPLODED VIEW, REAR, CREW CAB .

NOTE: The seat backrest latch is only accessible when the seat cushion is raised.

Release the backrest latch on the 40 percent seat and lower the backrest.
- From behind the backrest, pull up on the latch release and pull the backrest forward.
- Release the cushion latch and lower the cushion and backrest.

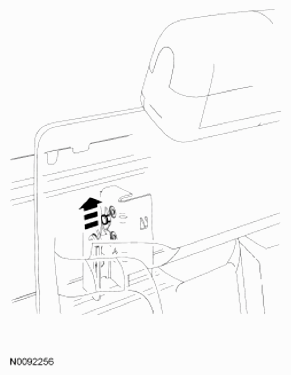

  Fig 1: Removing Backrest Latch
  Courtesy of FORD MOTOR CO.
Remove armrest bolt through the access hole on the inboard edge of the 60 percent seat backrest.
- To install, tighten to 25 Nm (18 lb-ft).

  Fig 2: Locating Armrest Mounting Bolt
  Courtesy of FORD MOTOR CO.
Push the armrest to the inboard side of the seat to disengage the pivot and remove the armrest.
To install, reverse the removal procedure.
